9963 Series
Manufacturer: Belden Inc.
Beta
⌘K

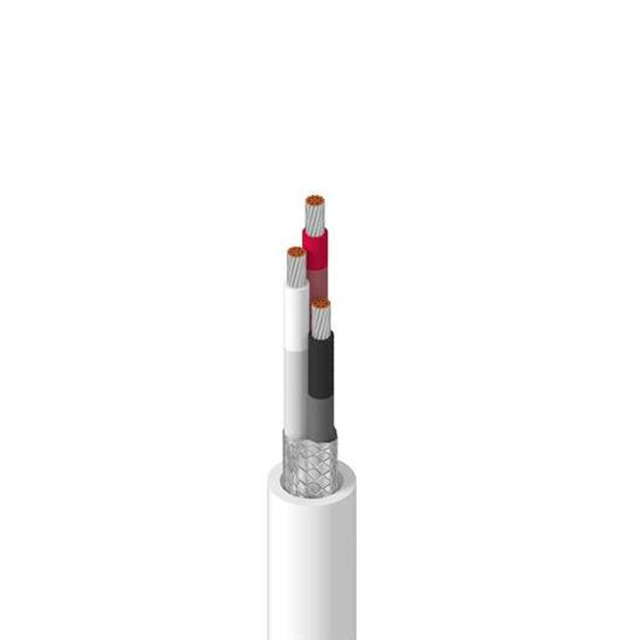

CABLE 3COND 20AWG WHITE SHLD
| Part | Shield Coverage | Shield Material | Cable Type | Number of Conductors | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Material | Usage | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type | Wire Gauge | Length [x] | Length [x] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket Color | Conductor Insulation | Conductor Insulation | Conductor Insulation | Conductor Strand [custom] | Conductor Strand [custom] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 90 % | Copper Tinned | Multi-Conductor | 3 | -20 ░C | 105 ░C | Copper Tinned | Communications | Poly-Vinyl Chloride (PVC) | 5.33 mm | 0.21 in | Braid | 20 AWG | 100 ft | 30.5 m | 0.635 mm | 0.025 in | White | Polyamide (PA) | Nylon | Poly-Vinyl Chloride (PVC) | 19 | 32 AWG | ||
 Belden Inc. | 90 % | Copper Tinned | Multi-Conductor | 3 | -20 ░C | 105 ░C | Copper Tinned | Communications | Poly-Vinyl Chloride (PVC) | 5.33 mm | 0.21 in | Braid | 20 AWG | 0.635 mm | 0.025 in | White | Polyamide (PA) | Nylon | Poly-Vinyl Chloride (PVC) | 19 | 32 AWG | 304.8 m | 1000 ft | ||
Belden Inc. | 90 % | Copper Tinned | Multi-Conductor | 3 | -20 ░C | 105 ░C | Copper Tinned | Communications | Poly-Vinyl Chloride (PVC) | 5.33 mm | 0.21 in | Braid | 20 AWG | 0.635 mm | 0.025 in | White | Polyamide (PA) | Nylon | Poly-Vinyl Chloride (PVC) | 19 | 32 AWG | 152.4 m | 500 ft |
