S3B-XH-S Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

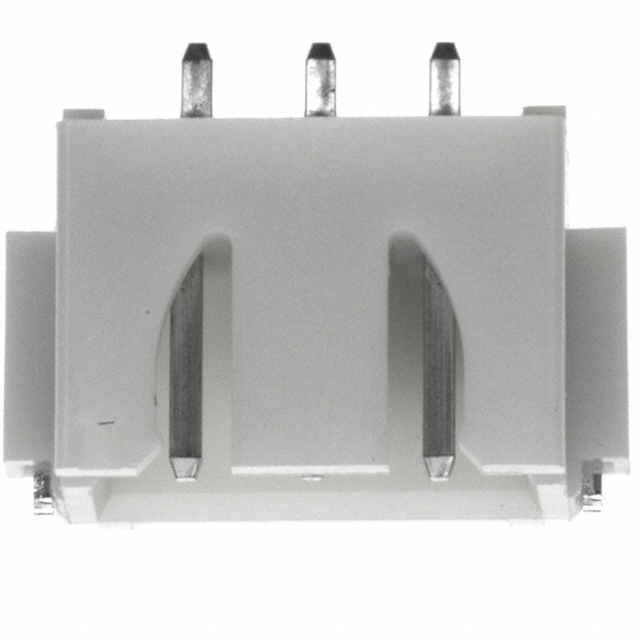

CONN HEADER SMD R/A 3POS 2.5MM
| Part | Insulation Color | Material Flammability Rating | Contact Finish - Post | Shrouding | Connector Type | Pitch - Mating | Pitch - Mating | Fastening Type | Features | Number of Rows | Voltage Rating | Insulation Height [custom] | Insulation Height [custom] | Style | Insulation Material | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Number of Positions Loaded | Contact Shape | Current Rating (Amps) | Contact Type | Contact Material | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Natural | UL94 V-0 | Tin | Shrouded - 4 Wall | Header | 2.5 mm | 0.098 in | Detent Lock | Solder Retention | 1 | 250 V | 0.236 " | 6 mm | Board to Cable/Wire | Nylon 6T Polyamide (PA6T) | 85 °C | -25 °C | Right Angle Surface Mount | All | Square | 3 A | Male Pin | Copper Alloy | Solder |
