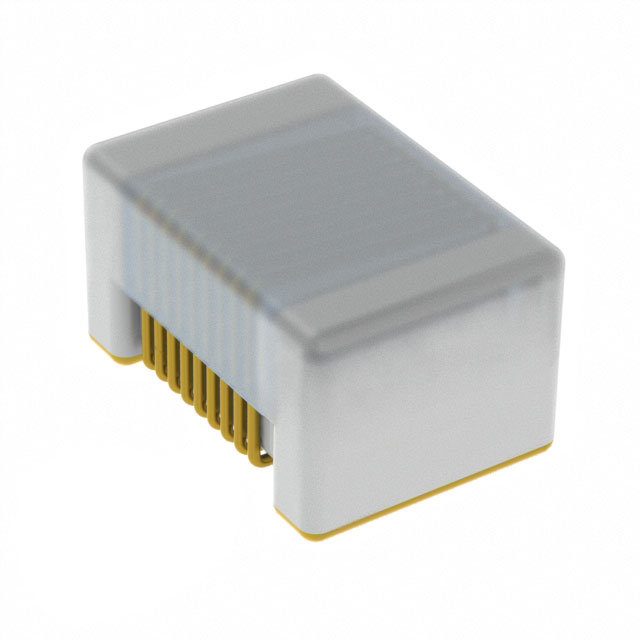

CW161009A Series

Catalog

FIXED IND 56NH 600MA 250MOHM SMD

Part	Inductance Frequency - Test	Q @ Freq [custom]	Q @ Freq	Tolerance	Ratings	Frequency - Self Resonant	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case	Mounting Type	Current Rating (Amps)	Shielding	Material - Core	Inductance	DC Resistance (DCR) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	DC Resistance (DCR)	Q @ Freq [custom]	Q @ Freq [custom]	Q @ Freq [custom]
Bourns Inc. CW161009A-56NJ	200 MHz	200 MHz	32	5 %	AEC-Q200	1.9 GHz	125 °C	-40 C	1608 Metric	0603	Surface Mount	600 mA	Unshielded	Ceramic	56 nH	250 mOhm	0.043 "	1.1 mm	1.65 mm	0.065 in	0.045 "	1.15 mm
Bourns Inc. CW161009A-68NJ	200 MHz	200 MHz	32	5 %	AEC-Q200	1.7 GHz	125 °C	-40 C	1608 Metric	0603	Surface Mount	600 mA	Unshielded	Ceramic	68 nH	350 mOhm	0.043 "	1.1 mm	1.65 mm	0.065 in	0.045 "	1.15 mm
Bourns Inc. CW161009A-36NJ	250 MHz		36 250 MHz	5 %	AEC-Q200	2.08 GHz	125 °C	-40 C	1608 Metric	0603	Surface Mount	600 mA	Unshielded	Ceramic	36 nH		0.043 "	1.1 mm	1.65 mm	0.065 in	0.045 "	1.15 mm	200 mOhm
Bourns Inc. CW161009A-R39J	100 MHz		25 100 MHz	5 %	AEC-Q200	350 MHz	125 °C	-40 C	1608 Metric	0603	Surface Mount	130 mA	Unshielded	Ceramic	390 nH	2.9 Ohm	0.043 "	1.1 mm	1.65 mm	0.065 in	0.045 "	1.15 mm
Bourns Inc. CW161009A-6N2J	250 MHz			5 %	AEC-Q200	5.8 GHz	125 °C	-40 C	1608 Metric	0603	Surface Mount	700 mA	Unshielded	Ceramic	6.2 nH		0.043 "	1.1 mm	1.65 mm	0.065 in	0.045 "	1.15 mm	100 mOhm	25	250 MHz
Bourns Inc. CW161009A-7N5J	250 MHz		28 250 MHz	5 %	AEC-Q200	4.8 GHz	125 °C	-40 C	1608 Metric	0603	Surface Mount	700 mA	Unshielded	Ceramic	7.5 nH		0.043 "	1.1 mm	1.65 mm	0.065 in	0.045 "	1.15 mm	100 mOhm
Bourns Inc. CW161009A-24NJ	250 MHz			5 %	AEC-Q200	2.65 GHz	125 °C	-40 C	1608 Metric	0603	Surface Mount	700 mA	Unshielded	Ceramic	24 nH	140 mOhm	0.043 "	1.1 mm	1.65 mm	0.065 in	0.045 "	1.15 mm		35	250 MHz
Bourns Inc. CW161009A-8N7J	250 MHz		28 250 MHz	5 %	AEC-Q200	4.6 GHz	125 °C	-40 C	1608 Metric	0603	Surface Mount	700 mA	Unshielded	Ceramic	8.7 nH		0.043 "	1.1 mm	1.65 mm	0.065 in	0.045 "	1.15 mm	100 mOhm
Bourns Inc. CW161009A-11NJ	250 MHz			5 %	AEC-Q200	4 GHz	125 °C	-40 C	1608 Metric	0603	Surface Mount	700 mA	Unshielded	Ceramic	11 nH		0.043 "	1.1 mm	1.65 mm	0.065 in	0.045 "	1.15 mm	100 mOhm		250 MHz	30
Bourns Inc. CW161009A-4N3J	250 MHz		22 250 MHz	5 %	AEC-Q200	5.9 GHz	125 °C	-40 C	1608 Metric	0603	Surface Mount	700 mA	Unshielded	Ceramic	4.3 nH		0.043 "	1.1 mm	1.65 mm	0.065 in	0.045 "	1.15 mm	70 mOhm
