9445 Series
Manufacturer: Belden Inc.
Beta
⌘K

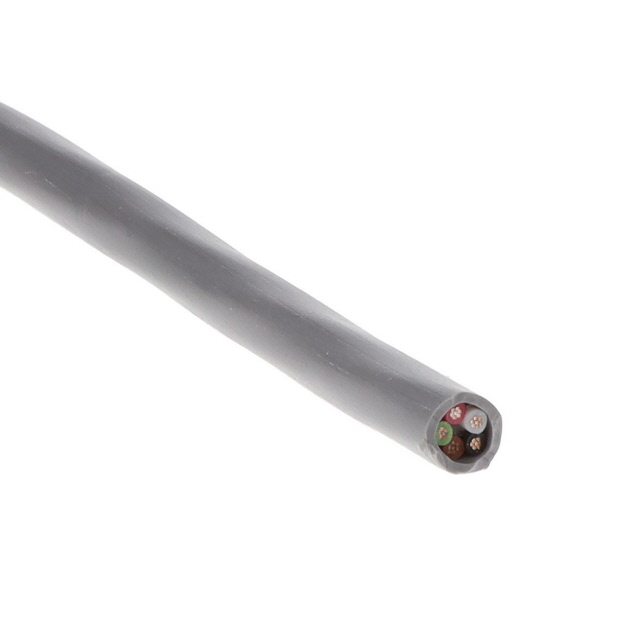

CABLE 5COND 20AWG CHROME
| Part | Conductor Insulation | Wire Gauge | Jacket (Insulation) Material | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Cable Type | Number of Conductors | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Strand [custom] | Conductor Strand [custom] | Jacket Color | Ratings | Voltage | Usage | Length | Length | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Poly-Vinyl Chloride (PVC) | 20 AWG | Poly-Vinyl Chloride (PVC) | Copper Tinned | 0.239 " | 6.07 mm | 80 °C | -20 ░C | Multi-Conductor | 5 | 0.813 mm | 0.032 in | 28 AWG | 7 | Chrome | UL Style 2464 | 300 VDC | Audio Control Instrumentation | ||||
Belden Inc. | Poly-Vinyl Chloride (PVC) | 20 AWG | Poly-Vinyl Chloride (PVC) | Copper Tinned | 0.239 " | 6.07 mm | 80 °C | -20 ░C | Multi-Conductor | 5 | 0.813 mm | 0.032 in | 28 AWG | 7 | Chrome | UL Style 2464 | 300 VDC | Audio Control Instrumentation | 304.8 m | 1000 ft | ||
 Belden Inc. | Poly-Vinyl Chloride (PVC) | 20 AWG | Poly-Vinyl Chloride (PVC) | Copper Tinned | 0.239 " | 6.07 mm | 80 °C | -20 ░C | Multi-Conductor | 5 | 0.813 mm | 0.032 in | 28 AWG | 7 | Chrome | Audio Control Instrumentation | 100 ft | 30.5 m | ||||
Belden Inc. | Poly-Vinyl Chloride (PVC) | 20 AWG | Poly-Vinyl Chloride (PVC) | Copper Tinned | 0.239 " | 6.07 mm | 80 °C | -20 ░C | Multi-Conductor | 5 | 0.813 mm | 0.032 in | 28 AWG | 7 | Chrome | UL Style 2464 | 300 VDC | Audio Control Instrumentation | 304.8 m | 1000 ft |
