FXTRL8 Series

Catalog

OM3 12-FIBER ROUND HARNESS CABLE, LSZH,

Part	Color - Connectors	Fiber Type	Bend Radius	1st Connector	Cable Diameter [diameter]	Cable Diameter [diameter]	2nd Connector	Operating Temperature [Max]	Operating Temperature [Min]	Type	Length - Overall [x]	Length - Overall [x]	Return Loss	Insertion Loss	Length - Overall

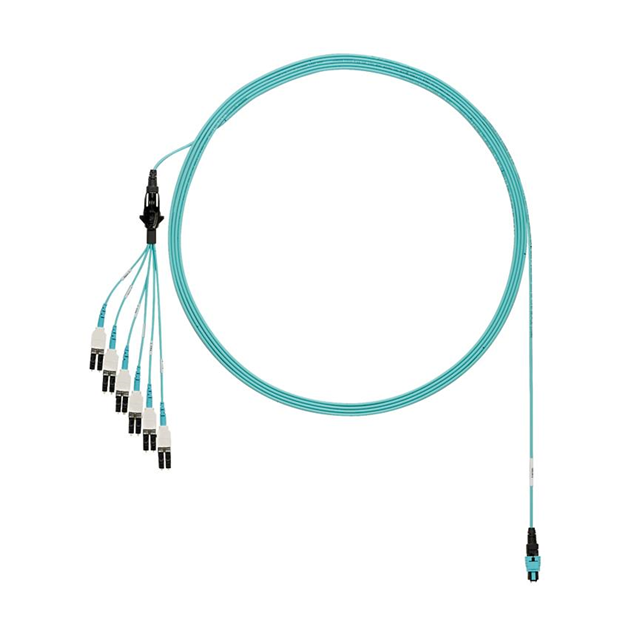

Panduit Corp FXTRL8NUFSNM010	Aqua	50/125	30 mm	MPO	3 mm	0.12 in	LC	60 °C	0 °C	Multimode OM3	10 m	32.8 ft	26 dB	0.5 dB
Panduit Corp FXTRL8NUHSNM015	Aqua	50/125	30 mm	MPO	3 mm	0.12 in	LC	60 °C	0 °C	Multimode OM3	15 m	49.2 '	26 dB	0.5 dB
Panduit Corp FXTRL8NUJSNM004
Panduit Corp FXTRL8NUSSNM023	Aqua	50/125	30 mm	MPO	3 mm	0.12 in	LC	60 °C	0 °C	Multimode OM3		75.5 ft	26 dB	0.5 dB	23 m
Panduit Corp FXTRL8NUSSNM008	Aqua	50/125	30 mm	MPO	3 mm	0.12 in	LC	60 °C	0 °C	Multimode OM3	8 m	26.2 ft	26 dB	0.5 dB
Panduit Corp FXTRL8NQSONM010
Panduit Corp FXTRL8NUHSNM012	Aqua	50/125	30 mm	MPO	3 mm	0.12 in	LC	60 °C	0 °C	Multimode OM3	12 m	39.4 ft	26 dB	0.5 dB
Panduit Corp FXTRL8NUJSNM009
Panduit Corp FXTRL8NUSSNM004	Aqua	50/125	30 mm	MPO	3 mm	0.12 in	LC	60 °C	0 °C	Multimode OM3	4 m	13.1 '	26 dB	0.5 dB
Panduit Corp FXTRL8NUGSNM014	Aqua	50/125	30 mm	MPO	3 mm	0.12 in	LC	60 °C	0 °C	Multimode OM3	14 m	45.9 ft	26 dB	0.5 dB
