M2013SA Series

Catalog

SWITCH TOGGLE SPDT 6A 125V

Part	Actuator Material	Electrical Life	Current Rating (Amps)	Mounting Type	Panel Cutout Dimensions [diameter]	Bushing Thread	Features	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Switch Function	Actuator Length [x]	Circuit	Actuator Type	Illumination	Voltage Rating - AC
NKK Switches M2013SA1W03	Brass Chrome Plated	25000 Steps	3 A 6 A	Panel Mount	6.5 mm	1/4-40	Epoxy Sealed Terminals	30 V	85 °C	-30 ░C	PC Pin	On-Off-On	12.27 mm	SPDT	Standard Round	Non-Illuminated	125 V
NKK Switches M2013SA2W40	Brass Chrome Plated	25000 Steps	3 A 6 A	Right Angle Through Hole Vertical	6.5 mm	Unthreaded	Epoxy Sealed Terminals	30 V	85 °C	-30 ░C	PC Pin	On-Off-On	12.28 mm	SPDT	Standard Round	Non-Illuminated	125 V
NKK Switches M2013SA2W03	Brass Chrome Plated	25000 Steps	3 A 6 A	Through Hole	6.5 mm	Unthreaded	Epoxy Sealed Terminals	30 V	85 °C	-30 ░C	PC Pin	On-Off-On	12.28 mm	SPDT	Standard Round	Non-Illuminated	125 V
NKK Switches M2013SA1G30	Brass Chrome Plated	25000 Steps	0.4 VA	Right Angle Through Hole	6.5 mm	1/4-40	Epoxy Sealed Terminals	28 V	85 °C	-30 ░C	PC Pin	On-Off-On	12.28 mm	SPDT	Standard Round	Non-Illuminated	28 V

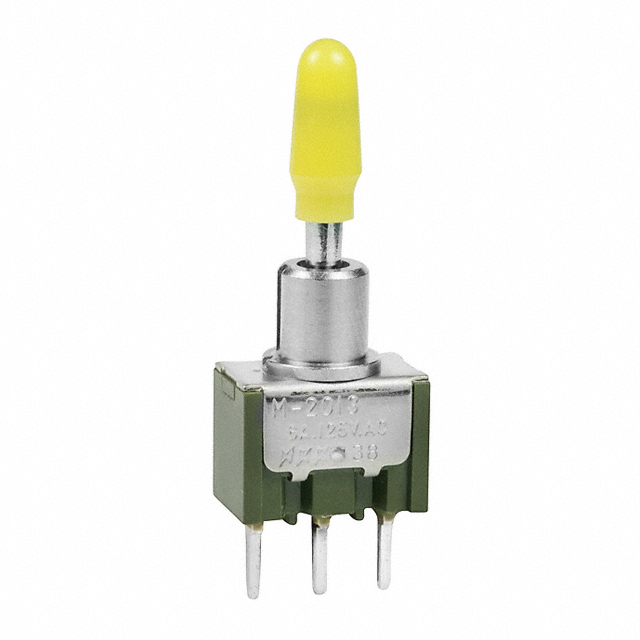

NKK Switches M2013SA2W03-BE	Brass Chrome Plated	25000 Steps	3 A 6 A	Through Hole	6.5 mm	Unthreaded	Yellow Cap	30 V	85 °C	-30 ░C	PC Pin	On-Off-On	12.27 mm	SPDT	Standard Round	Non-Illuminated	125 V
NKK Switches M2013SA2W03/CUL			3 A 6 A	Through Hole		Unthreaded	Epoxy Sealed Terminals		85 °C	-30 ░C	PC Pin	On-Off-On	12.27 mm	SPDT	Standard Round	Non-Illuminated

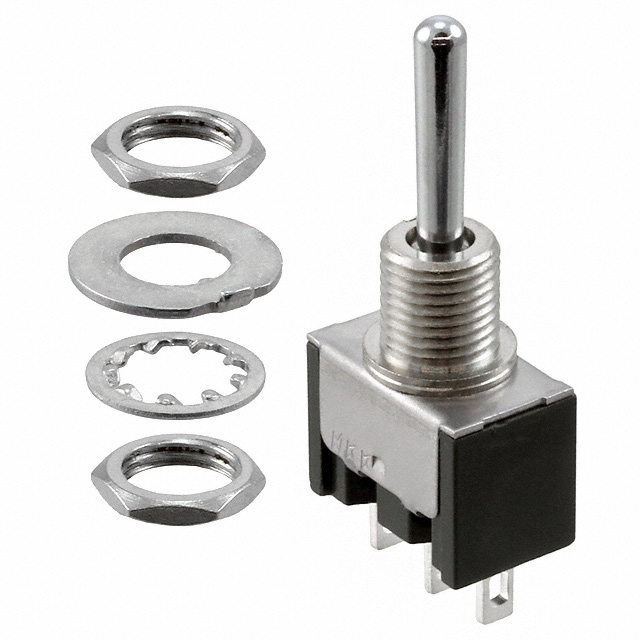

NKK Switches M2013SA1W01	Brass Chrome Plated	25000 Steps	3 A 6 A	Panel Mount	6.5 mm	1/4-40	Epoxy Sealed Terminals	30 V	85 °C	-30 ░C	Solder Lug	On-Off-On	12.27 mm	SPDT	Standard Round	Non-Illuminated	125 V
