LPFCM14 Series
Manufacturer: Panduit Corp
Beta
⌘K

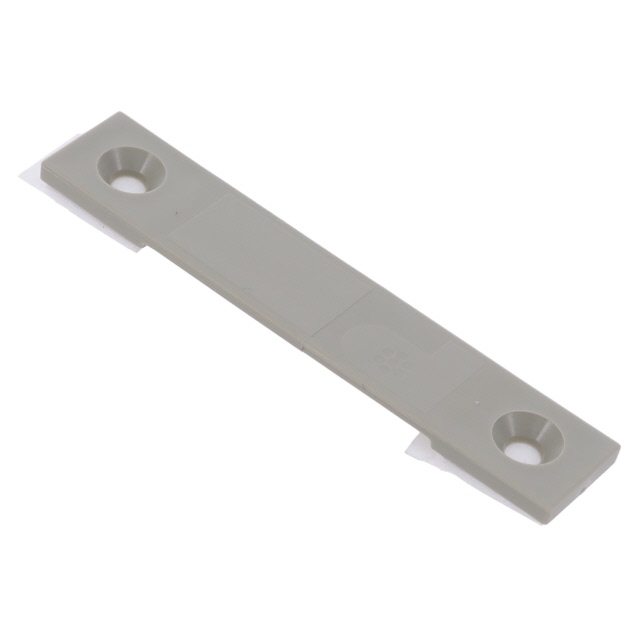

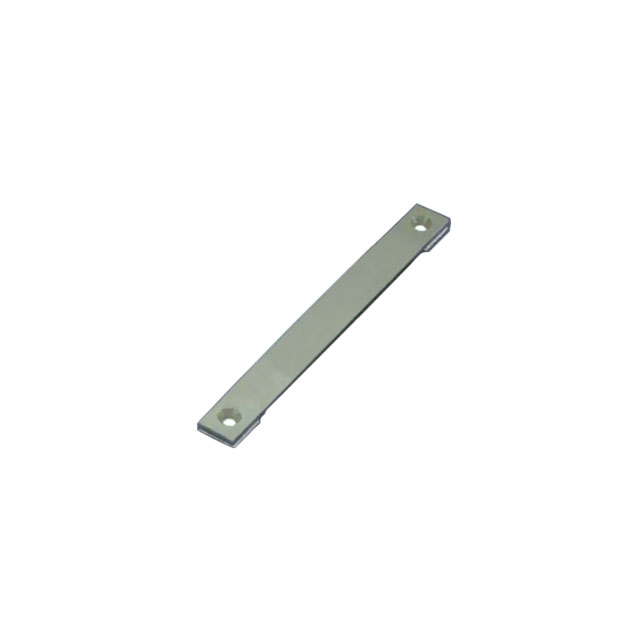

LPFCM TYPE LOW PROFILE ADHESIVE BACKED FLAT CABLE MOUNT, NYLON (POLYAMIDE) MATERIAL, GRAY COLOR ROHS COMPLIANT: YES
| Part | Screw Size | Width | Width | Color | Height [z] | Height | Panel Hole Size | Panel Hole Size | Material Thickness | Material Thickness | Type | Adhesive | Length [x] | Length [x] | Mounting Type | Material | Type Attributes | Opening Size | Opening Size | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panduit Corp | #6 (M3) Flat Head | 12.7 mm | 0.5 in | Gray | 0.134 in | 3.4 mm | 0.138 in | 3.51 mm | 0.06 in | 1.52 mm | Clamp Flat | Rubber Based | 65 mm | 2.559 in | Adhesive Fastener | Polyamide (PA66) Nylon 6/6 | Low Profile | 36.58 mm | 1.44 in | ||||||
 Panduit Corp | Gray | Single Opening | #6 Adhesive Screw | Nylon | 0.13 " | 0.5 " | 3.4 mm | 2.56 in | 65 mm | 12.7 mm |
