NRPN082 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER SMD 16POS 2MM

Part	Contact Finish Thickness - Post	Contact Length - Mating	Contact Length - Mating	Contact Material	Current Rating (Amps)	Number of Rows [custom]	Voltage Rating	Connector Type	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Shrouding	Insulation Height	Insulation Height	Insulation Color	Style	Insulation Material	Features	Contact Finish - Mating	Contact Finish - Post	Material Flammability Rating	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating	Row Spacing - Mating	Contact Type	Fastening Type	Termination	Mounting Type	Contact Shape	Contact Finish Thickness - Mating	Insulation Height [z]	Insulation Height [z]	Overall Contact Length	Overall Contact Length	Contact Length - Post [custom]	Contact Length - Post
Sullins Connector Solutions NRPN082MAMP-M81RC	Flash	0.141 in	3.6 mm	Brass	2 A	2	150 VDC	Header	0.079 "	2 mm	All	Unshrouded	0.059 in	1.5 mm	Black	Board to Board Cable	Nylon 6T Polyamide (PA6T)	Board Guide Pick and Place	Gold	Gold	UL94 V-0	16	-40 C	105 ░C	2 mm	0.079 in	Male Pin	Push-Pull	Solder	Surface Mount	Square	Flash
Sullins Connector Solutions NRPN082MAMP-RC	Flash	0.141 in	3.6 mm	Brass	2 A	2	150 VDC	Header	0.079 "	2 mm	All	Unshrouded	0.059 in	1.5 mm		Board to Board Cable	Nylon 6T Polyamide (PA6T)	Board Guide	Gold	Gold	UL94 V-0	16	-40 C	105 ░C	2 mm	0.079 in	Male Pin	Push-Pull	Solder	Surface Mount	Square	Flash
Sullins Connector Solutions NRPN082PAEN-RC	Flash	0.141 in	3.6 mm	Brass	2 A	2	150 VDC	Header	0.079 "	2 mm	All	Unshrouded			Black	Board to Board Cable	Nylon 6T Polyamide (PA6T)		Gold	Gold	UL94 V-0	16	-40 C	105 ░C	2 mm	0.079 in	Male Pin	Push-Pull	Solder	Through Hole	Square	Flash	2 mm	0.079 in	0.33 in	8.38 mm	0.11 in	2.79 mm

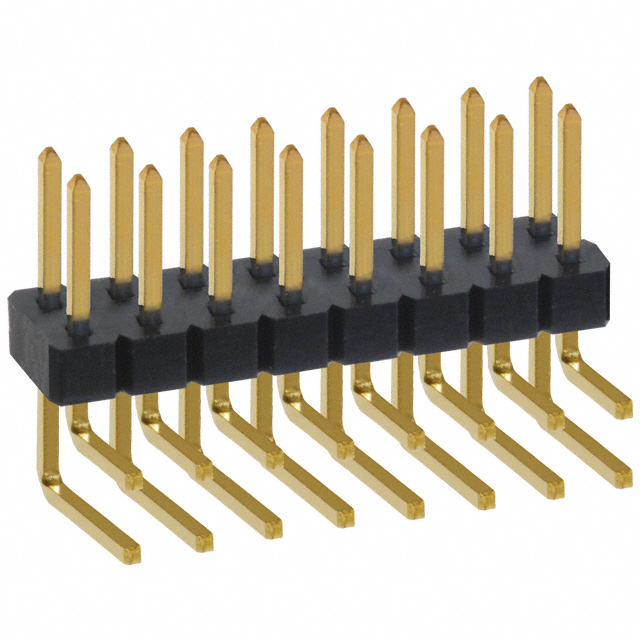

Sullins Connector Solutions NRPN082PARN-RC	Flash	0.141 in	3.6 mm	Brass	2 A	2	150 VDC	Header	0.079 "	2 mm	All	Unshrouded			Black	Board to Board Cable	Nylon 6T Polyamide (PA6T)		Gold	Gold	UL94 V-0	16	-40 C	105 ░C	2 mm	0.079 in	Male Pin	Push-Pull	Solder	Right Angle Through Hole	Square	Flash	4 mm	0.157 in			0.11 in	2.79 mm
