170258 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

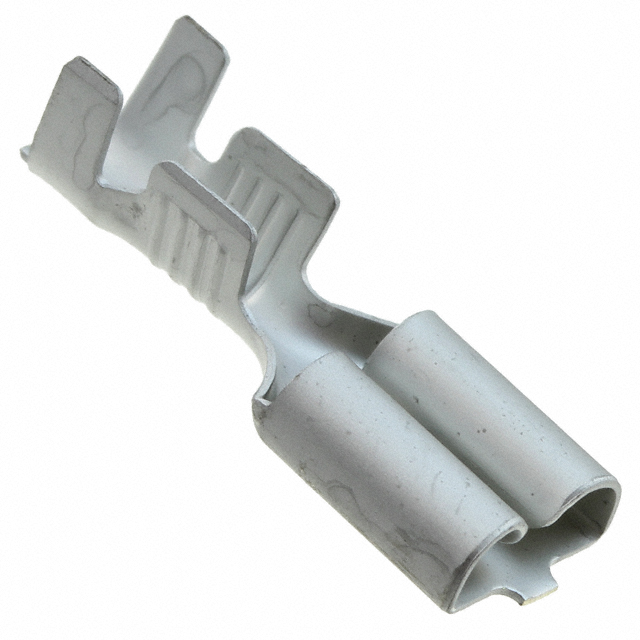

CONN QC RCPT 12-14AWG 0.250
| Part | Insulation | Length - Overall [x] | Length - Overall [x] | Contact Material | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Tab Width | Tab Width | Contact Finish | Mounting Type | Wire Gauge [Max] | Wire Gauge [Min] | Tab Thickness | Tab Thickness | Gender | Tab Length | Tab Length | Termination | Terminal Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Non-Insulated | 0.756 in | 19.2 mm | Brass | 0.15 " | 0.114 " | 2.9 mm | 3.81 mm | 6.35 mm | 0.25 in | Tin | Free Hanging (In-Line) | 14 AWG | 12 AWG | 0.032 in | 0.81 mm | Female | 7.8 mm | 0.307 in | Crimp | Standard |
