NPPN402 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HDR 80POS 0.079 GOLD SMD

Part	Contact Finish Thickness - Post	Insulation Material	Contact Material	Contact Shape	Material Flammability Rating	Number of Rows [custom]	Number of Positions Loaded	Contact Finish - Post	Number of Positions	Connector Type	Insulation Color	Termination	Mounting Type	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Mating	Features	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Contact Finish Thickness - Mating	Fastening Type	Contact Type	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height [z]	Insulation Height	Insulation Height

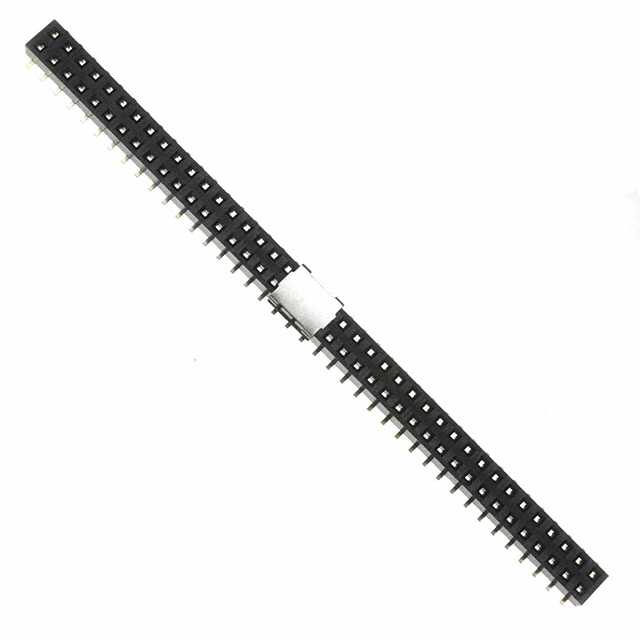

Sullins Connector Solutions NPPN402GFNP-RC	Flash	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	Square	UL94 V-0	2	All	Gold	80	Header Top or Bottom Entry	Black	Solder	Surface Mount	2 mm	0.079 in	Gold	Board Guide	-40 C	105 ░C	0.079 "	2 mm	2 A	Flash	Push-Pull	Female Socket
Sullins Connector Solutions NPPN402FJFN-RC	Flash	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	Square	UL94 V-0	2	All	Gold	80	Header	Black	Solder	Right Angle Through Hole	2 mm	0.079 in	Gold		-40 C	105 ░C	0.079 "	2 mm		Flash	Push-Pull	Female Socket	0.118 in	3 mm	4.85 mm	0.191 in
Sullins Connector Solutions NPPN402FFKS-RC	Flash	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	Square	UL94 V-0	2	All	Gold	80	Header	Black	Solder	Surface Mount	2 mm	0.079 in	Gold		-40 C	105 ░C	0.079 "	2 mm	2 A	Flash	Push-Pull	Female Socket			0.173 in		4.4 mm

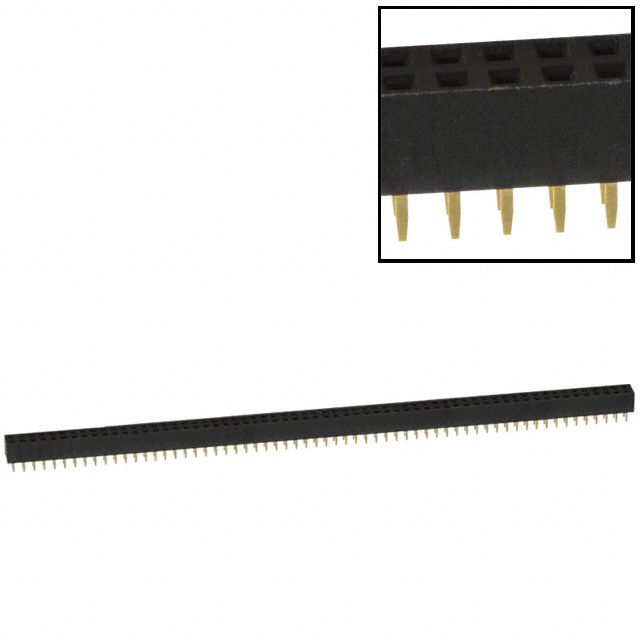

Sullins Connector Solutions NPPN402AFCN-RC	Flash	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	Square	UL94 V-0	2	All	Gold	80	Header	Black	Solder	Through Hole	2 mm	0.079 in	Gold		-40 C	105 ░C	0.079 "	2 mm		Flash	Push-Pull	Female Socket	0.094 in	2.4 mm	4.3 mm			0.169 "
