3SE5114 Series

Manufacturer: Siemens

Catalog

SWITCH LIMIT DPST 4A 125V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Electrical Life	Voltage Rating - AC	Actuator Type	Operating Force	Mechanical Life	Termination Style	Current Rating (Amps)	Circuit	Voltage Rating - DC	Mounting Type	Ingress Protection	Switch Function

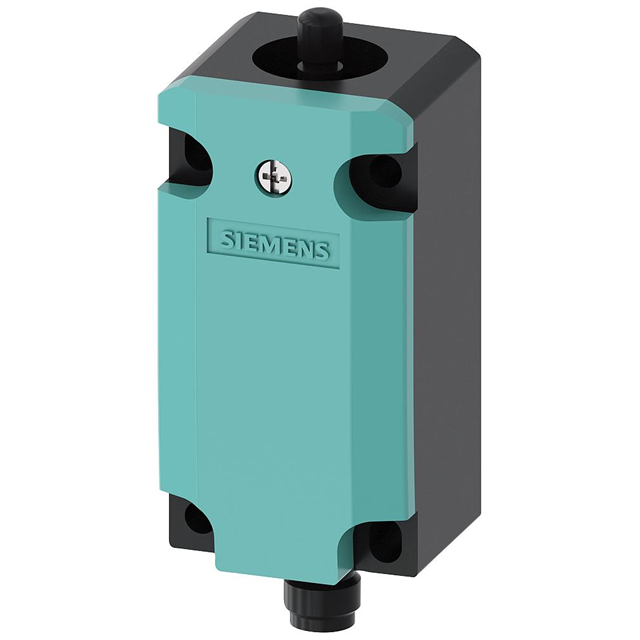

Siemens 3SE51140BA001AC5	85 °C	-25 °C	10000000 Cycles	125 V	Round (Pin Plunger)	2039 gf	15000000 Cycles	Connector	3 A 4 A	DPST-NO/NC	24 V	Chassis Mount	IP66 IP67	Off-Mom On-Mom
Siemens 3SE51141CD021AF3	60 °C	-25 °C	10000000 Cycles		Roller Plunger	2039 gf	15000000 Cycles	Connector	3 A	DPST-NO/NC	24 V	Chassis Mount	IP66 IP67	Off-Mom On-Mom

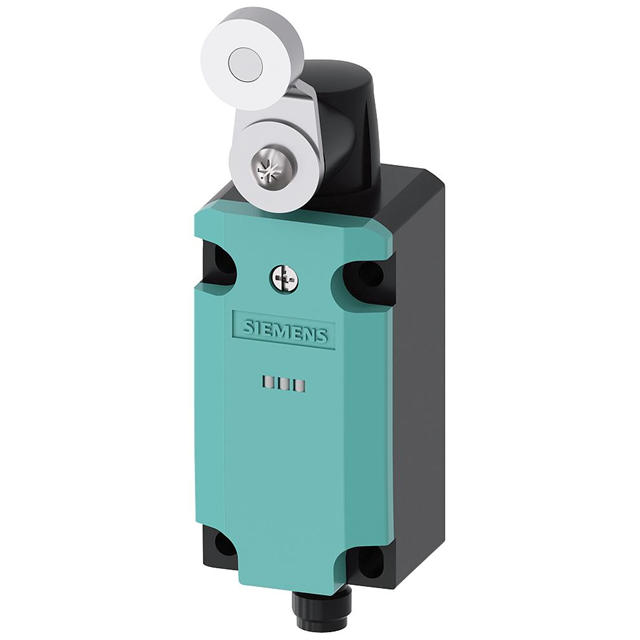

Siemens 3SE51141CH021AF3	60 °C	-25 °C	10000000 Cycles		Roller Side Rotary		15000000 Cycles	Connector	3 A	DPST-NO/NC	24 V	Chassis Mount	IP66 IP67	Off-Mom On-Mom

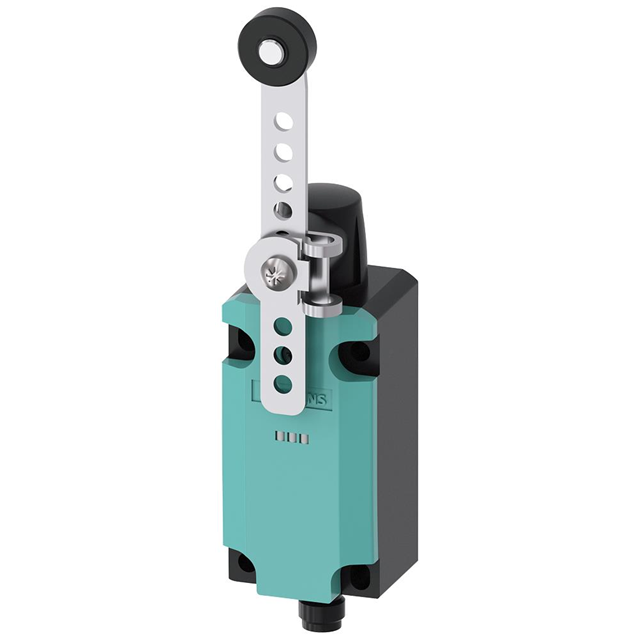

Siemens 3SE51141CH601AF3	60 °C	-25 °C	10000000 Cycles		Side Rotary Adjustable Roller		15000000 Cycles	Connector	3 A	DPST-NO/NC	24 V	Chassis Mount	IP66 IP67	Off-Mom On-Mom
Siemens 3SE51140CD021AL0	85 °C	-25 °C	10000000 Cycles	125 V	Roller Plunger	3059 gf	15000000 Cycles	Connector	3 A 4 A	DPST-NO/NC	24 V	Chassis Mount	IP66 IP67	Off-Mom On-Mom
Siemens 3SE51140CA001AC5	85 °C	-25 °C	10000000 Cycles	125 V	Round (Pin Plunger)	2039 gf	15000000 Cycles	Connector	3 A 4 A	DPST-NO/NC	24 V	Chassis Mount	IP66 IP67	Off-Mom On-Mom
Siemens 3SE51141CA001AF3	60 °C	-25 °C	10000000 Cycles		Round (Pin Plunger)	2039 gf	15000000 Cycles	Connector	3 A	DPST-NO/NC	24 V	Chassis Mount	IP66 IP67	Off-Mom On-Mom
Siemens 3SE51140KA001AE1	85 °C	-25 °C	10000000 Cycles	125 V	Round (Pin Plunger)	2039 gf	15000000 Cycles	Connector	3 A 4 A	3PST-2NC/1NO	24 V	Chassis Mount	IP66 IP67	Off-Mom On-Mom
Siemens 3SE51141CH011AF3	60 °C	-25 °C	10000000 Cycles		Roller Side Rotary		15000000 Cycles	Connector	3 A	DPST-NO/NC	24 V	Chassis Mount	IP66 IP67	Off-Mom On-Mom

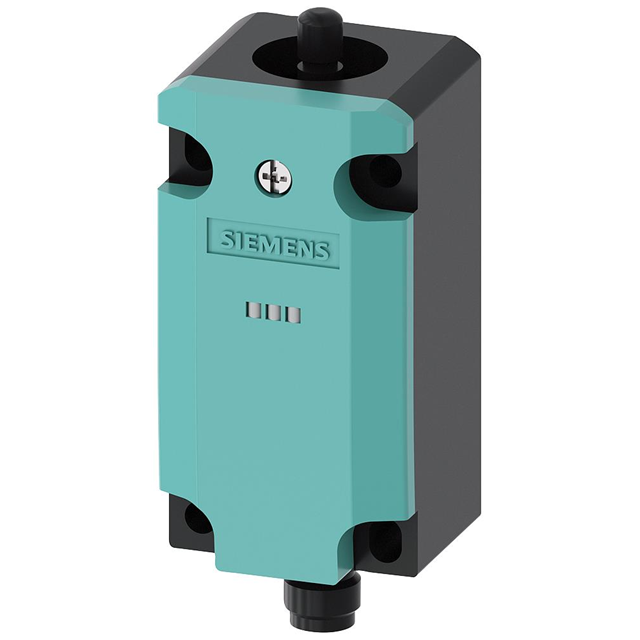

Siemens 3SE51141BA001AF3	60 °C	-25 °C	10000000 Cycles		Round (Pin Plunger)	2039 gf	15000000 Cycles	Connector	3 A	DPST-NO/NC	24 V	Chassis Mount	IP66 IP67	Off-Mom On-Mom
