MSSA145 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
SWITCH SLIDE SP4T 300MA 125V
| Part | Switch Travel | Electrical Life | Operating Force | Mechanical Life | Actuator Material | Contact Finish | Mounting Type | Contact Timing | Contact Material | Voltage Rating - AC | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Circuit | Actuator Type | Current Rating (Amps) | Actuator Length [x] | Switch Function | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

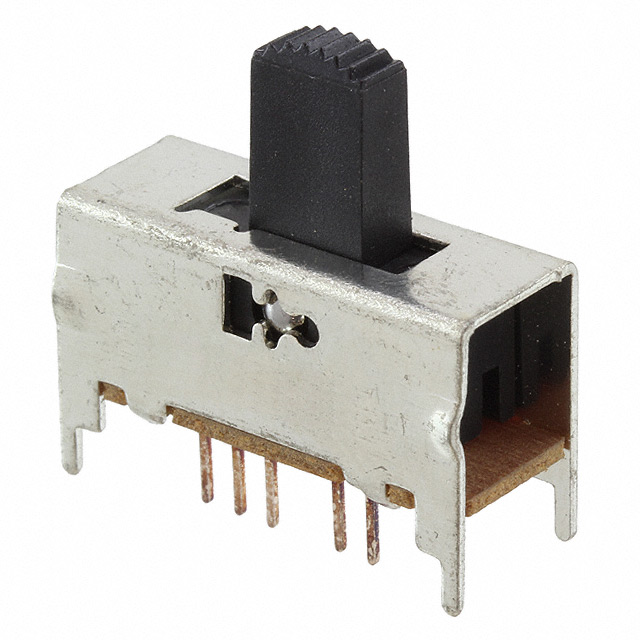

 TE Connectivity AMP Connectors | 2 mm | 15000 Cycles | 600 gf | 15000 Cycles | Polyester | Silver | Through Hole | Shorting (MBB) | Copper Alloy | 125 V | PC Pin | 85 °C | -20 ░C | SP4T | Standard | 300 mA | 10.41 mm | On-On-On-On | Epoxy Sealed Terminals |

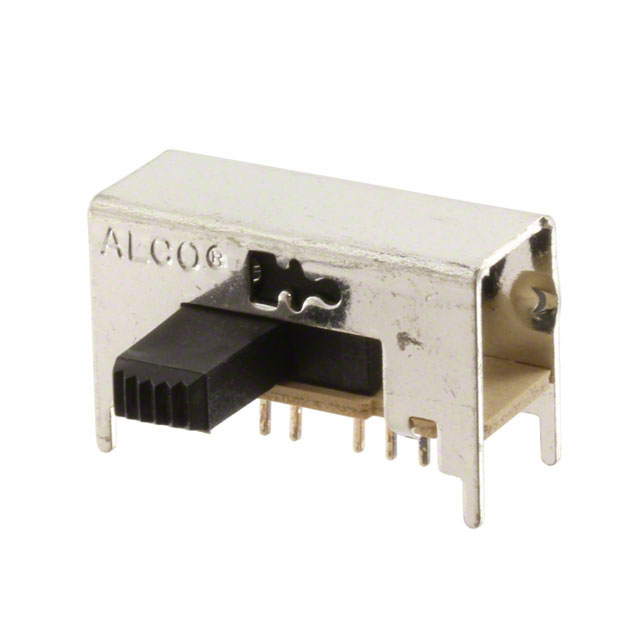

 TE Connectivity AMP Connectors | 2 mm | 15000 Cycles | 470 gf | 15000 Cycles | Polyester | Silver | Right Angle Through Hole | Shorting (MBB) | Copper Alloy | 125 V | PC Pin | 85 °C | -20 ░C | SP4T | Standard | 300 mA | 9.02 mm | On-On-On-On | Epoxy Sealed Terminals |
