315-030 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 30POS 0.156

Part	Termination Rows [custom]	Material - Insulation	Color	Termination	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Read Out	Gender	Card Type	Contact Finish	Pitch	Pitch	Features	Number of Rows [custom]	Card Thickness [Max]	Card Thickness [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Contact Material	Contact Type	Number of Positions	Number of Positions/Bay/Row

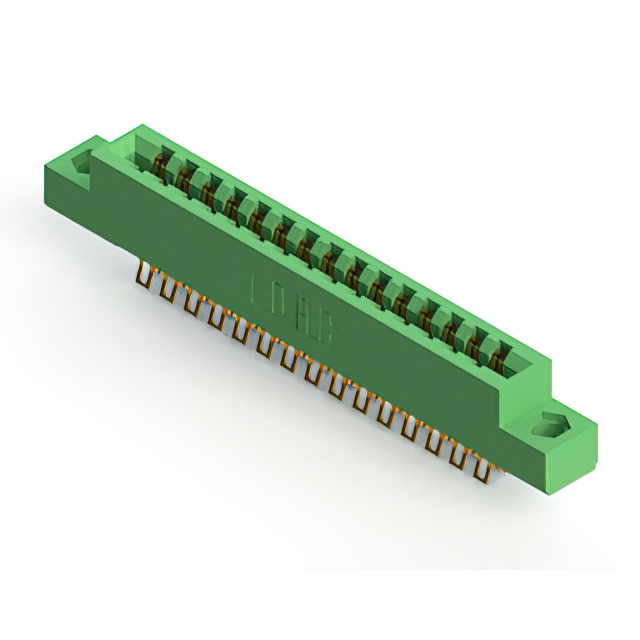

EDAC Inc. 315-030-555-204	2	Polyester Thermoplastic	Green	Solder	0.25 Ám	10 Áin	Board Edge Straddle Mount	Dual	Female	Non Specified - Dual Edge	Gold	3.96 mm	0.156 in	Card Extender	2	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Copper Alloy	Semi Bellows	30	15

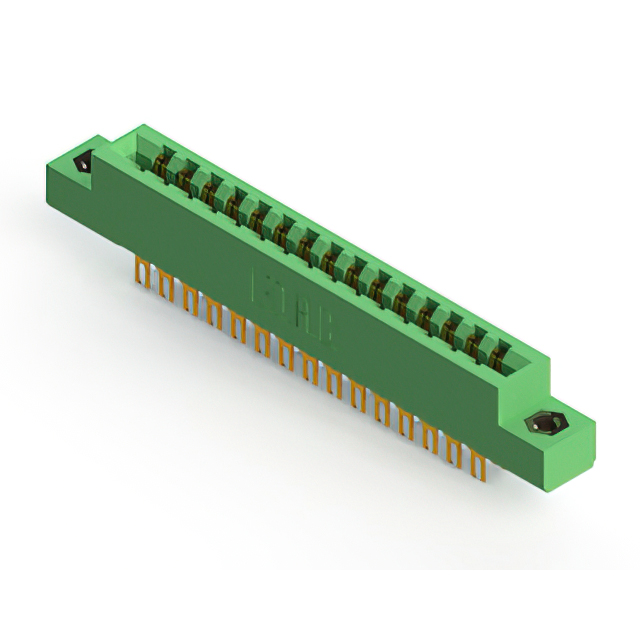

EDAC Inc. 315-030-500-208	2	Polyester Thermoplastic	Green	Solder Eyelet(s)	0.25 Ám	10 Áin	Panel Mount	Dual	Female	Non Specified - Dual Edge	Gold	3.96 mm	0.156 in		2	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	4-40 Flush Mount Threaded Insert Top Opening			Copper Alloy	Semi Bellows	30	15

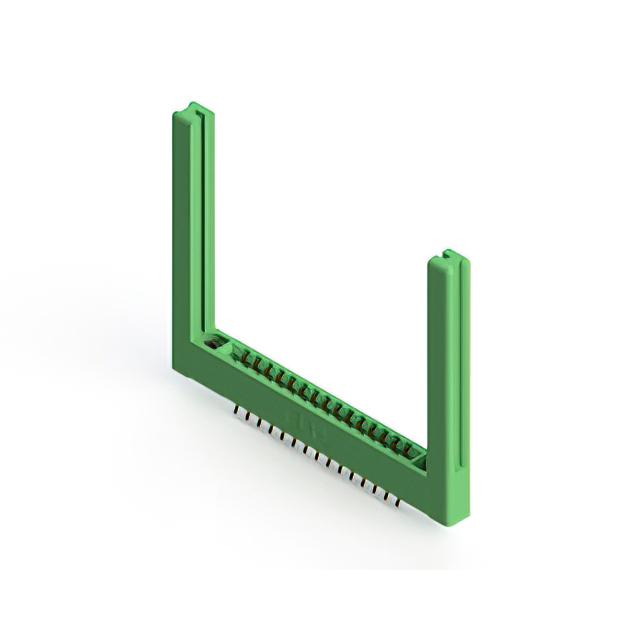

EDAC Inc. 315-030-556-258	2	Polyester Thermoplastic	Green	Solder	0.25 Ám	10 Áin	Board Edge Straddle Mount	Dual	Female	Non Specified - Dual Edge	Gold	3.96 mm	0.156 in	Card Extender Card Guides	2	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	4-40 Flush Mount Threaded Insert Top Opening			Copper Alloy	Semi Bellows	30	15
EDAC Inc. 315-030-555-207	2	Polyester Thermoplastic	Green	Solder	0.25 Ám	10 Áin	Board Edge Straddle Mount	Dual	Female	Non Specified - Dual Edge	Gold	3.96 mm	0.156 in	Card Extender	2	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Flush Mount M3 Threaded Insert Top Opening			Copper Alloy	Semi Bellows	30	15

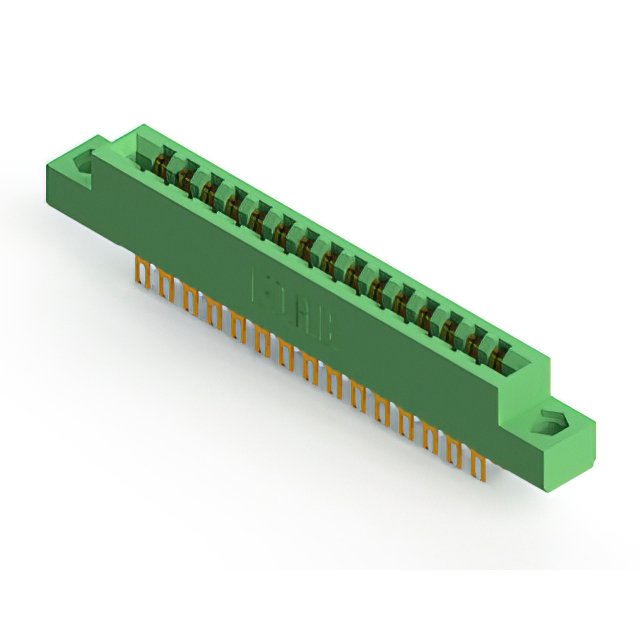

EDAC Inc. 315-030-500-204	2	Polyester Thermoplastic	Green	Solder Eyelet(s)	0.25 Ám	10 Áin	Panel Mount	Dual	Female	Non Specified - Dual Edge	Gold	3.96 mm	0.156 in		2	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Copper Alloy	Semi Bellows	30	15

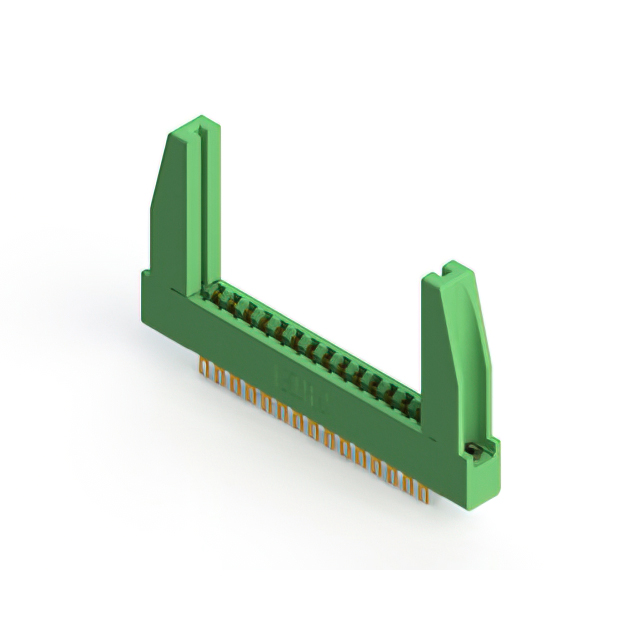

EDAC Inc. 315-030-500-278	2	Polyester Thermoplastic	Green	Solder Eyelet(s)	0.25 Ám	10 Áin	Panel Mount	Dual	Female	Non Specified - Dual Edge	Gold	3.96 mm	0.156 in		2	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	4-40 Flush Mount Threaded Insert Top Opening			Copper Alloy	Semi Bellows	30	15
EDAC Inc. 315-030-555-208	2	Polyester Thermoplastic	Green	Solder	0.25 Ám	10 Áin	Board Edge Straddle Mount	Dual	Female	Non Specified - Dual Edge	Gold	3.96 mm	0.156 in	Card Extender	2	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	4-40 Flush Mount Threaded Insert Top Opening			Copper Alloy	Semi Bellows	30	15

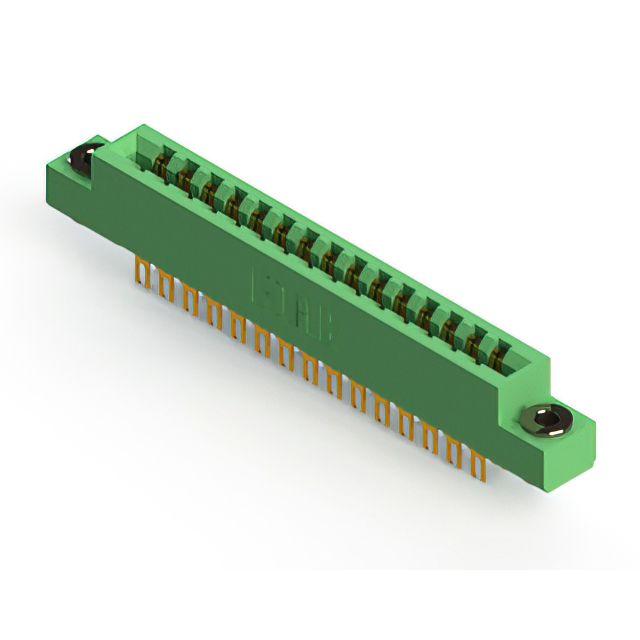

EDAC Inc. 315-030-500-203	2	Polyester Thermoplastic	Green	Solder Eyelet(s)	0.25 Ám	10 Áin	Panel Mount	Dual	Female	Non Specified - Dual Edge	Gold	3.96 mm	0.156 in		2	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Floating Bobbin Flush Mount	0.116 "	2.95 mm	Copper Alloy	Semi Bellows	30	15

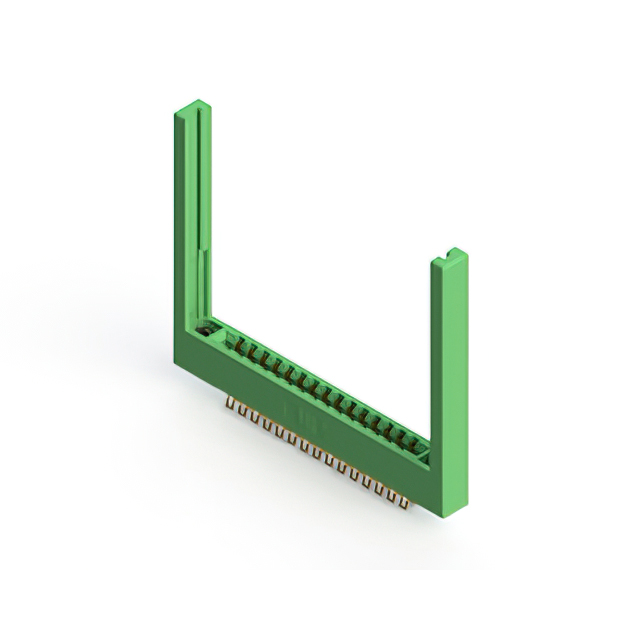

EDAC Inc. 315-030-555-268	2	Polyester Thermoplastic	Green	Solder	0.25 Ám	10 Áin	Board Edge Straddle Mount	Dual	Female	Non Specified - Dual Edge	Gold	3.96 mm	0.156 in	Card Extender Card Guides	2	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	4-40 Flush Mount Threaded Insert Top Opening			Copper Alloy	Semi Bellows	30	15
EDAC Inc. 315-030-556-204	2	Polyester Thermoplastic	Green	Solder	0.25 Ám	10 Áin	Board Edge Straddle Mount	Dual	Female	Non Specified - Dual Edge	Gold	3.96 mm	0.156 in	Card Extender	2	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Copper Alloy	Semi Bellows	30	15
