2178712 Series

Catalog

CONN HEADER 8POS IDC TIN

Part	Contact Type	Row Spacing [Max]	Row Spacing [Max]	Mounting Type	Cable Termination	Number of Positions	Contact Finish	Pitch [x]	Pitch [x]	Wire Type	Color	Connector Type	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Number of Positions

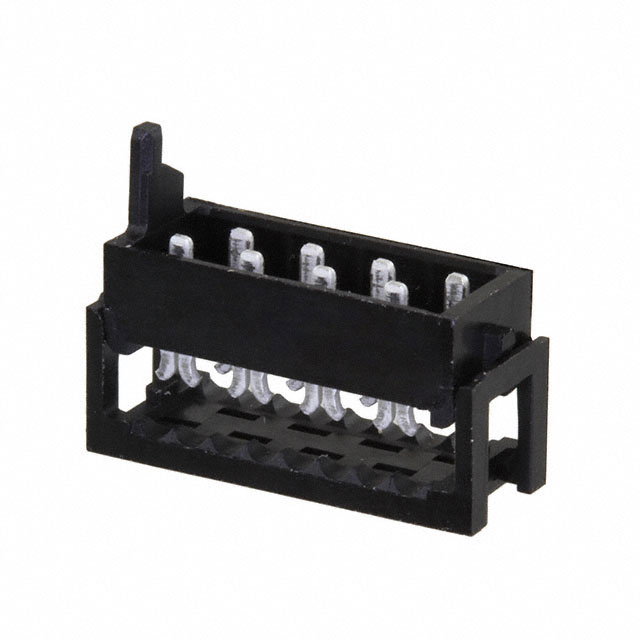

TE Connectivity Raychem Cable Protection 2178712-8	Male Pin	1.5 mm	0.059 in	Free Hanging (In-Line) Right Angle	IDC	8	Tin	2.54 mm	0.1 in	Ribbon Cable	Black	Header	2	3 µm	118.1 µin

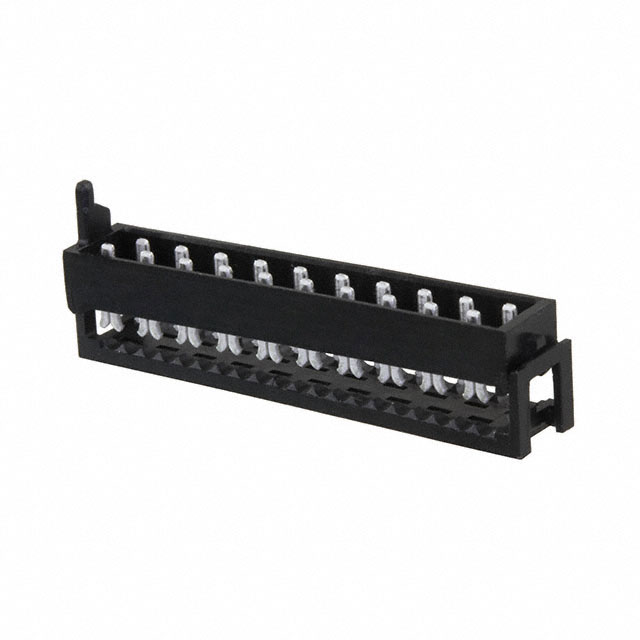

TE Connectivity Raychem Cable Protection 2-2178712-0	Male Pin	1.5 mm	0.059 in	Free Hanging (In-Line) Right Angle	IDC	20	Tin	2.54 mm	0.1 in	Ribbon Cable	Black	Header	2	3 µm	118.1 µin
TE Connectivity Raychem Cable Protection 1-2178712-2	Male Pin	1.5 mm	0.059 in	Free Hanging (In-Line) Right Angle	IDC	12	Tin	2.54 mm	0.1 in	Ribbon Cable	Black	Header	2	3 µm	118.1 µin

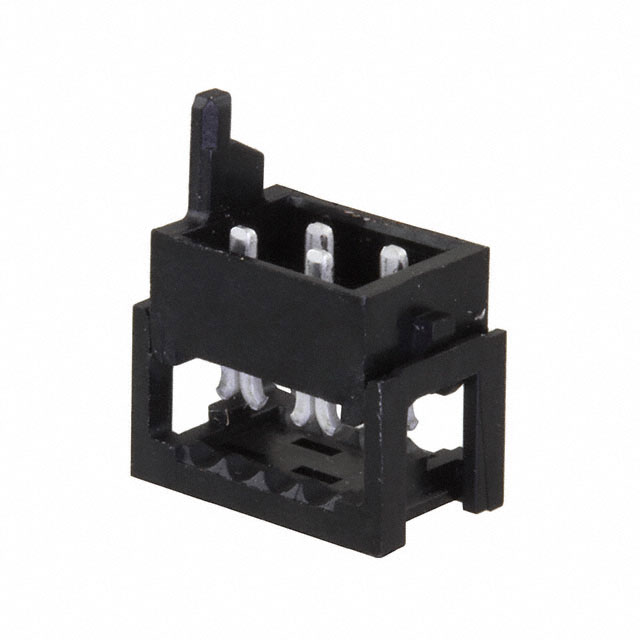

TE Connectivity Raychem Cable Protection 2178712-4	Male Pin	1.5 mm	0.059 in	Free Hanging (In-Line) Right Angle	IDC	4	Tin	2.54 mm	0.1 in	Ribbon Cable	Black	Header	2	3 µm	118.1 µin

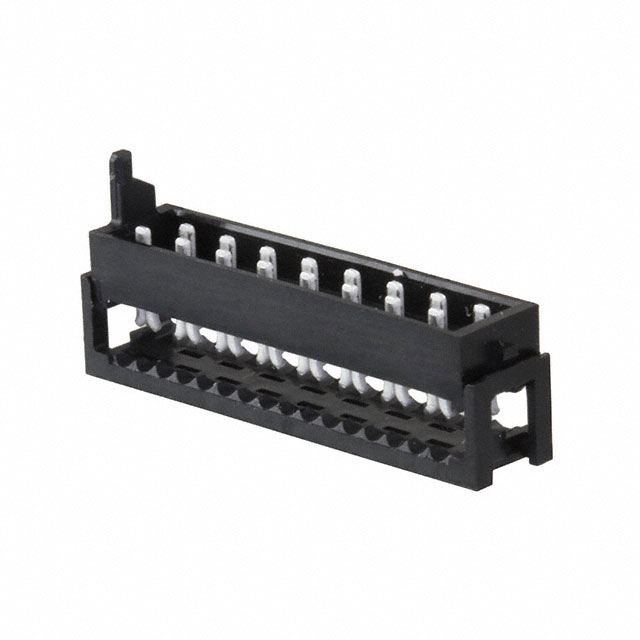

TE Connectivity Raychem Cable Protection 1-2178712-6	Male Pin	1.5 mm	0.059 in	Free Hanging (In-Line) Right Angle	IDC		Tin	2.54 mm	0.1 in	Ribbon Cable	Black	Header	2	3 µm	118.1 µin	16
