R12540 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

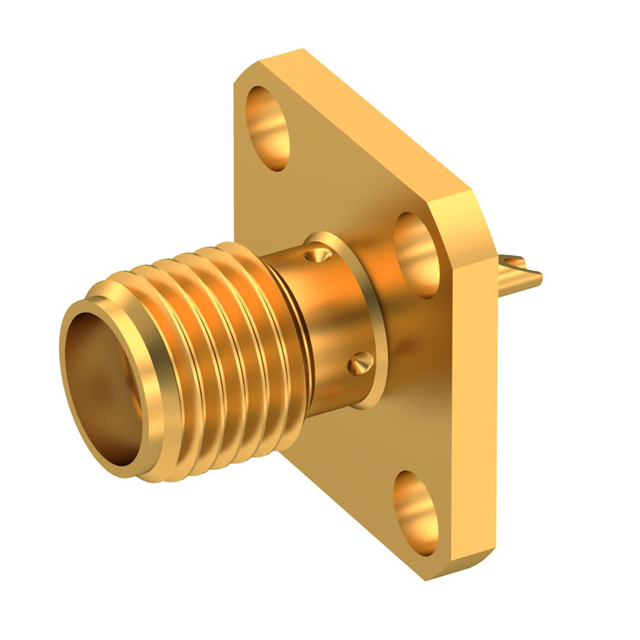

SMA / SQUARE FLANGE JACK RECEPTA
| Part | Voltage Rating | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Center Contact Plating | Body Finish | Dielectric Material | Fastening Type | Housing Color | Mounting Feature | Connector Style | Mounting Type | Impedance | Number of Ports | Center Contact Material | Connector Type | Shield Termination | Contact Termination | Frequency - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 500 V | 500 | -65 ░C | 165 °C | Stainless Steel | Gold | Gold | Polytetrafluoroethylene (PTFE) | Threaded | Gold | Flange | SMA | Panel Mount | 50 Ohms | 1 | Beryllium Copper | Female Socket Jack | Solder | Solder Cup | 18 GHz |
