Milli-Grid Receptacle, Surface Mount, Vertical, Top/Bottom Entry, without Press-fit Plastic Pegs, without Cap, Tube, 0.38µm Gold (Au) Selective, 30 Circuits, Lead-Free
Milli-Grid Receptacle, Surface Mount, Vertical, Top/Bottom Entry, without Press-fit Plastic Pegs, without Cap, Tube, 0.38µm Gold (Au) Selective, 30 Circuits, Lead-Free
Milli-Grid Receptacle, Surface Mount, Vertical, Top/Bottom Entry, without Press-fit Plastic Pegs, without Cap, Tube, 0.38µm Gold (Au) Selective, 30 Circuits, Lead-Free
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Height | Insulation Height | Mounting Type | Contact Material | Contact Finish - Post | Number of Positions Loaded | Contact Shape | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Rows | Connector Type | Termination | Number of Positions | Insulation Color | Style | Contact Type | Fastening Type | Material Flammability Rating | Applications | Voltage Rating | Contact Finish - Mating | Pitch - Mating [x] | Pitch - Mating [x] | Row Spacing - Mating | Row Spacing - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

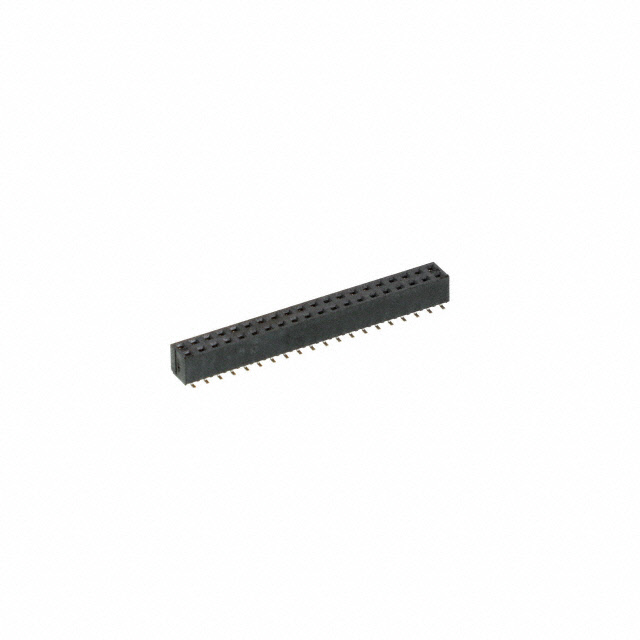

 Molex | 74.8 Áin | 1.9 Ám | -55 °C | 125 °C | 4.45 mm | 0.175 in | Surface Mount | Phosphor Bronze | Tin | All | Square | 15 µin | 0.38 µm | 2 | Receptacle | Solder | 40 | Black | Board to Board Cable | Female Socket | Push-Pull | UL94 V-0 | Automotive General Purpose Telecommunications | 125 VDC | Gold | 0.079 in | 2 mm | 0.079 in | 2 mm |
 Molex | 74.8 Áin | 1.9 Ám | -55 °C | 125 °C | 4.45 mm | 0.175 in | Surface Mount | Phosphor Bronze | Tin | All | Square | 15 µin | 0.38 µm | 2 | Receptacle | Solder | 24 | Black | Board to Board Cable | Female Socket | Push-Pull | UL94 V-0 | Automotive General Purpose Telecommunications | 125 VDC | Gold | 0.079 in | 2 mm | 0.079 in | 2 mm |

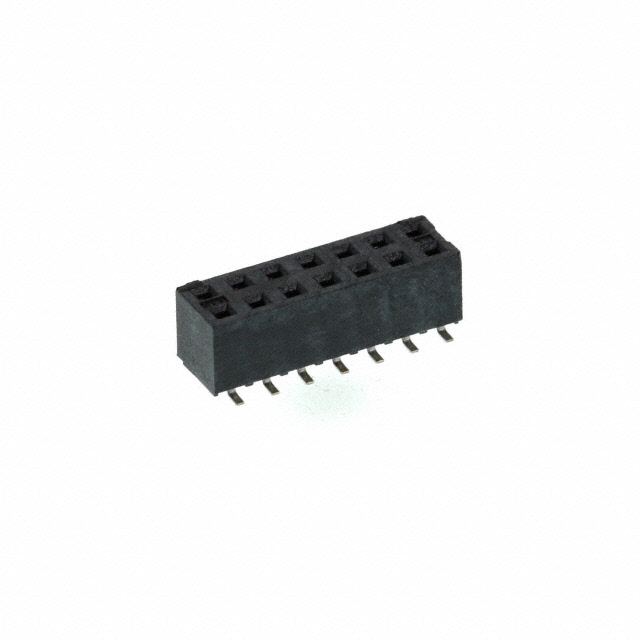

 Molex | 74.8 Áin | 1.9 Ám | -55 °C | 125 °C | 4.45 mm | 0.175 in | Surface Mount | Phosphor Bronze | Tin | All | Square | 15 µin | 0.38 µm | 2 | Receptacle | Solder | 14 | Black | Board to Board Cable | Female Socket | Push-Pull | UL94 V-0 | Automotive General Purpose Telecommunications | 125 VDC | Gold | 0.079 in | 2 mm | 0.079 in | 2 mm |
 Molex | |||||||||||||||||||||||||||||
Molex | |||||||||||||||||||||||||||||

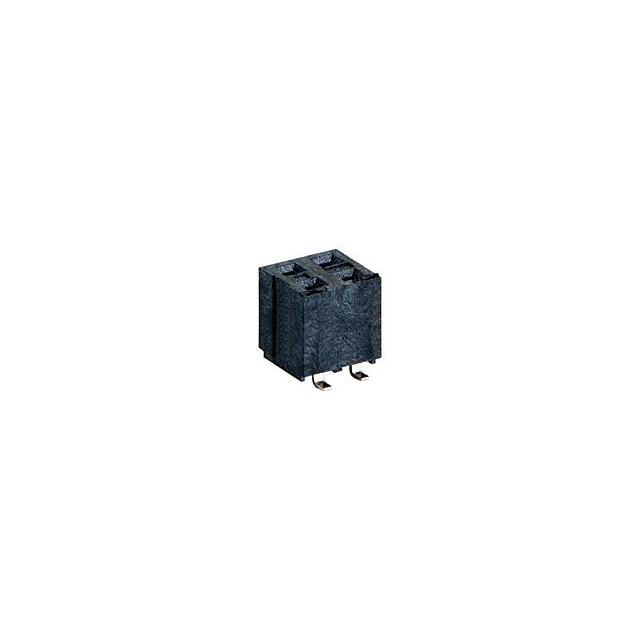

Molex | 74.8 Áin | 1.9 Ám | -55 °C | 125 °C | 4.65 mm | 0.183 in | Surface Mount | Phosphor Bronze | Tin | All | Square | 5 µin | 0.127 µm | 2 | Receptacle | Solder | 4 | Black | Female Socket | Push-Pull | UL94 V-0 | 125 VAC | Gold | 0.079 in | 2 mm | 0.079 in | 2 mm | ||
Molex |
