ISOW7841A-Q1 Series

Automotive, quad-channel, 3/1, reinforced digital isolator with integrated power

Catalog

Automotive, quad-channel, 3/1, reinforced digital isolator with integrated power

Part	Inputs - Side 1/Side 2 [custom]	Inputs - Side 1/Side 2 [custom]	Common Mode Transient Immunity (Min) [Min]	Number of Channels	Channel Type	Propagation Delay tpLH / tpHL (Max) [Max] [custom]	Propagation Delay tpLH / tpHL (Max) [Max] [custom]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case [x]	Package / Case	Package / Case [y]	Supplier Device Package	Data Rate	Voltage - Supply [Max]	Voltage - Supply [Min]	Pulse Width Distortion (Max) [Max]	Type	Mounting Type	Technology	Utilized IC / Part	Primary Attributes	Function	Secondary Attributes	Supplied Contents	Contents	Qualification	Grade
Texas Instruments ISOW7841DWER	3	1	100 V/ns	4	Unidirectional	17.6 ns	17.6 ns	2 ns	2 ns	125 °C	-40 °C	0.295 in	16-SOIC	7.5 mm	16-SOIC	100 Mbps	5.5 V	3 V	4.7 ns	General Purpose	Surface Mount	Capacitive Coupling

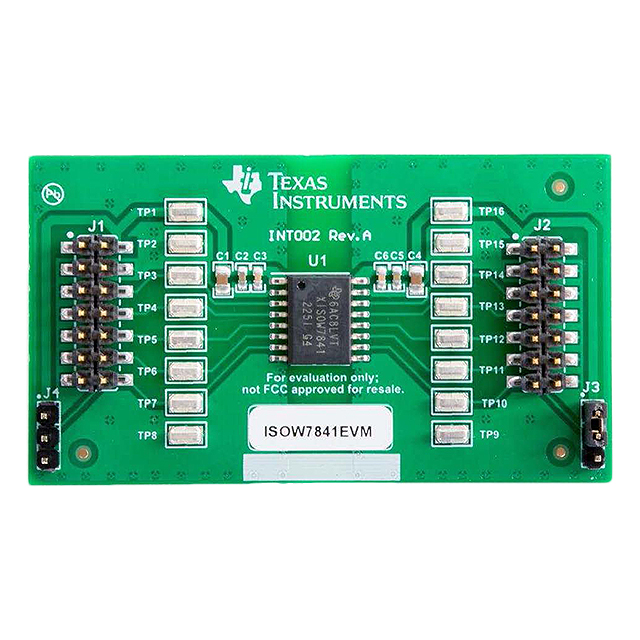

Texas Instruments ISOW7841EVM																				Interface			ISOW7841	4-Channel (Quad)	Digital Isolator	Short-Circuit and Thermal Protection	Board(s)	Board(s)
Texas Instruments ISOW7841FDWER	3	1	100 V/ns	4	Unidirectional	17.6 ns	17.6 ns	2 ns	2 ns	125 °C	-40 °C	0.295 in	16-SOIC	7.5 mm	16-SOIC	100 Mbps	5.5 V	3 V	4.7 ns	General Purpose	Surface Mount	Capacitive Coupling
Texas Instruments ISOW7841FDWE	3	1	100 V/ns	4	Unidirectional	17.6 ns	17.6 ns	4 ns	4 ns	125 °C	-40 °C	0.295 in	16-SOIC	7.5 mm	16-SOIC	100 Mbps	5.5 V	3 V	4.7 ns	General Purpose	Surface Mount	Capacitive Coupling
Texas Instruments ISOW7841FAQDWERQ1	3	1	100 V/ns	4	Unidirectional	17.6 ns	17.6 ns	2 ns	2 ns	125 °C	-40 °C	0.295 in	16-SOIC	7.5 mm	16-SOIC	100 Mbps	5.5 V	3 V	4.7 ns	General Purpose	Surface Mount	Capacitive Coupling							AEC-Q100	Automotive
Texas Instruments ISOW7841AQDWEQ1	3	1	100 V/ns	4	Unidirectional	17.6 ns	17.6 ns	2 ns	2 ns	125 °C	-40 °C	0.295 in	16-SOIC	7.5 mm	16-SOIC	100 Mbps	5.5 V	3 V	4.7 ns	General Purpose	Surface Mount	Capacitive Coupling							AEC-Q100	Automotive
Texas Instruments ISOW7841AQDWERQ1	3	1	100 V/ns	4	Unidirectional	17.6 ns	17.6 ns	2 ns	2 ns	125 °C	-40 °C	0.295 in	16-SOIC	7.5 mm	16-SOIC	100 Mbps	5.5 V	3 V	4.7 ns	General Purpose	Surface Mount	Capacitive Coupling							AEC-Q100	Automotive

Catalog

Automotive, quad-channel, 3/1, reinforced digital isolator with integrated power

Key Features

• Qualified for Automotive ApplicationsAEC-Q100 Qualified With the Following Results:Device temperature Grade 1: –40°C to 125°C Ambient Operating Temperature100 Mbps data rateFunctional Safety-CapableDocumentation available to aid functional safety system designRobust isolation barrier:>100-Year projected lifetime at 1 kVRMSworking voltageUp to 5000 VRMSisolation ratingUp to 10 kVPKsurge capability±100 kV/µs minimum CMTIIntegrated high-efficiency DC-DC converter with on-chip transformer3-V to 5.5-V Wide input supply rangeRegulated 5-V or 3.3-V outputUp to 0.65-W output power5 V to 5 V; 5 V to 3.3 V: Available load current ≥ 130 mA3.3 V to 3.3 V: Available load current ≥ 75 mA ; 3.3 V to 5 V: Available load current ≥ 40 mASoft-start to limit inrush currentOverload and short-circuit protectionThermal shutdownDefault output:HighandLowoptionsLow propagation delay: 13 ns Typ (5-V supply)Robust electromagnetic compatibility (EMC)System-level ESD, EFT, and surge immunity±8 kV IEC 61000-4-2 contact discharge protection across isolation barrierLow emissions16-pin wide SOIC packageSafety-related certifications:7071-VPKreinforced isolation per DIN V VDE V 0884-11:2017-015000-VRMSisolation for 1 minute per UL 1577CSA Certification per IEC 60950-1, IEC 62368-1 and IEC 60601-1 end equipment standardsCQC Approval per GB4943.1-2011TUV Certification according to EN 60950-1 and EN 61010-1All certifications are plannedQualified for Automotive ApplicationsAEC-Q100 Qualified With the Following Results:Device temperature Grade 1: –40°C to 125°C Ambient Operating Temperature100 Mbps data rateFunctional Safety-CapableDocumentation available to aid functional safety system designRobust isolation barrier:>100-Year projected lifetime at 1 kVRMSworking voltageUp to 5000 VRMSisolation ratingUp to 10 kVPKsurge capability±100 kV/µs minimum CMTIIntegrated high-efficiency DC-DC converter with on-chip transformer3-V to 5.5-V Wide input supply rangeRegulated 5-V or 3.3-V outputUp to 0.65-W output power5 V to 5 V; 5 V to 3.3 V: Available load current ≥ 130 mA3.3 V to 3.3 V: Available load current ≥ 75 mA ; 3.3 V to 5 V: Available load current ≥ 40 mASoft-start to limit inrush currentOverload and short-circuit protectionThermal shutdownDefault output:HighandLowoptionsLow propagation delay: 13 ns Typ (5-V supply)Robust electromagnetic compatibility (EMC)System-level ESD, EFT, and surge immunity±8 kV IEC 61000-4-2 contact discharge protection across isolation barrierLow emissions16-pin wide SOIC packageSafety-related certifications:7071-VPKreinforced isolation per DIN V VDE V 0884-11:2017-015000-VRMSisolation for 1 minute per UL 1577CSA Certification per IEC 60950-1, IEC 62368-1 and IEC 60601-1 end equipment standardsCQC Approval per GB4943.1-2011TUV Certification according to EN 60950-1 and EN 61010-1All certifications are planned

Description

The ISOW784x is a family of high-performance, quad-channel reinforced digital isolators with an integrated high-efficiency power converter. The integrated DC-DC converter provides up to 650 mW of isolated power at high efficiency and can be configured for various input and output voltage configurations. Therefore these devices eliminate the need for a separate isolated power supply in space-constrained isolated designs. The ISOW784x is a family of high-performance, quad-channel reinforced digital isolators with an integrated high-efficiency power converter. The integrated DC-DC converter provides up to 650 mW of isolated power at high efficiency and can be configured for various input and output voltage configurations. Therefore these devices eliminate the need for a separate isolated power supply in space-constrained isolated designs.
