505473 Series

Manufacturer: Molex

Catalog

SLIMSTACK BOARD-TO-BOARD RECEPTACLE, 0.40MM PITCH, BATTERY SERIES, 0.60MM MATED HEIGHT, 2.00MM MATED WIDTH, 10 CIRCUITS, 10.0A

Part	Connector Type	Mated Stacking Heights	Contact Finish	Features	Height Above Board [z]	Height Above Board [z]	Number of Positions [custom]	Number of Positions [custom]	Mounting Type	Number of Rows [custom]	Pitch	Pitch	Number of Positions
Molex 5054731010	Receptacle Center Strip Contacts	0.6 mm	Gold	Solder Retention	0.57 mm	0.022 in	6	4	Surface Mount	2	0.4 mm	0.016 in

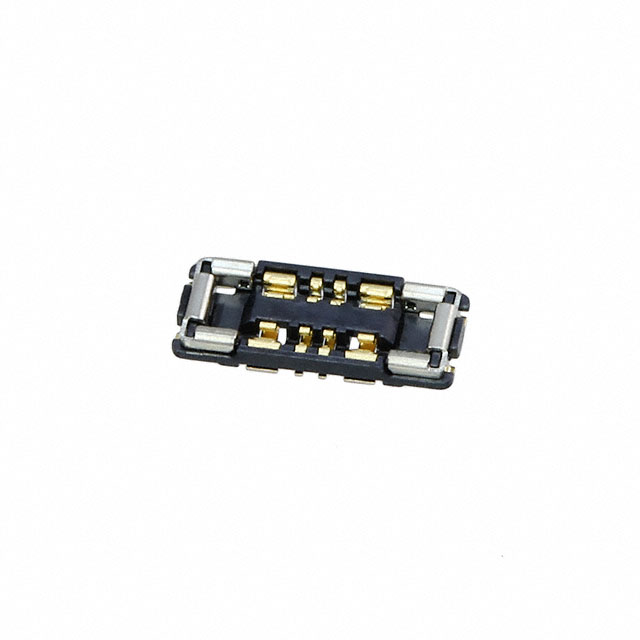

Molex 5054730810	Receptacle Center Strip Contacts	0.6 mm	Gold	Solder Retention	0.57 mm	0.022 in			Surface Mount	2	0.4 mm	0.016 in	8
