851-20 Series
Manufacturer: Qualtek
Beta
⌘K
LINE FILTER 115V/250VAC 20A CHAS
| Part | Current | Termination Style | Filter Type | Inductance | Applications | Configuration | Mounting Type | Frequency - Operating [Max] | Frequency - Operating [Min] | Voltage - Rated AC | Approval Agency | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

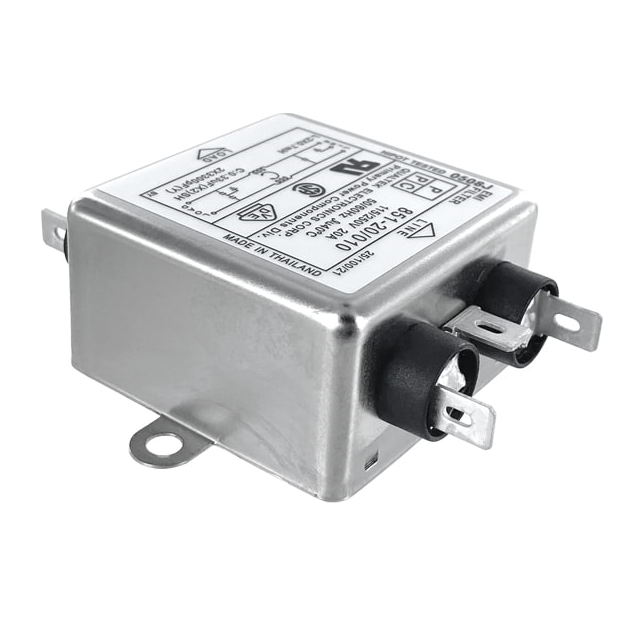

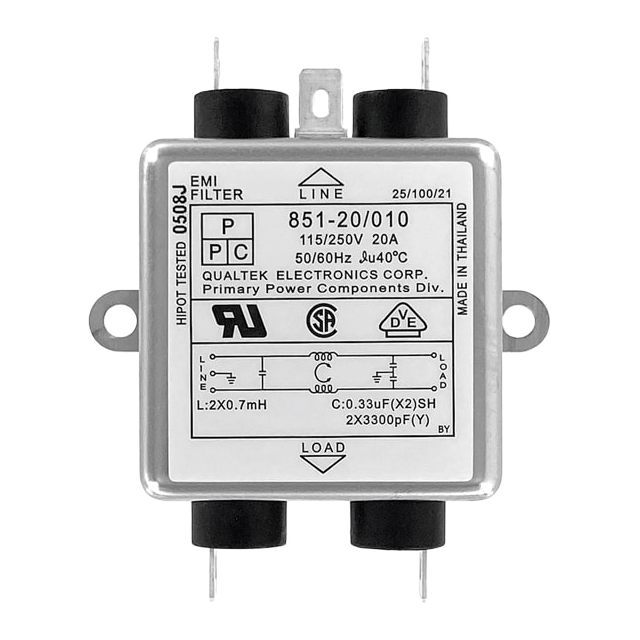

 Qualtek | 20 A | Quick Connect | Single Phase | 700 µH | General Purpose | Single Stage | Chassis Mount | 60 Hz | 50 Hz | 115 V 250 V | CSA UR VDE | 85 °C | -25 °C |

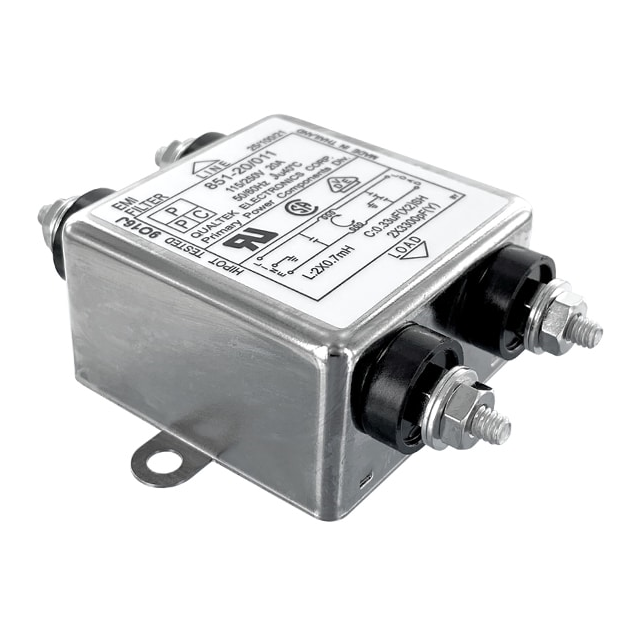

 Qualtek | 20 A | Threaded Post (8-32) | Single Phase | 700 µH | General Purpose | Single Stage | Chassis Mount | 60 Hz | 50 Hz | 115 V 250 V | CSA UR VDE | 85 °C | -25 °C |
