201647 Series
Manufacturer: Molex
Beta
⌘K
SPOT-ON 1.5 W/B SINGLE REC HSG N
| Part | Note | Contact Type | Pitch | Pitch | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Color | Contact Termination | Mounting Type | Connector Type | Insulation Material | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Contacts Not Included | Female Socket | 0.059 in | 1.5 mm | Latch Lock | -40 C | 105 ░C | 1 | Natural | Crimp | Free Hanging (In-Line) | Receptacle | Polybutylene Terephthalate (PBT) Polyester | 16 |

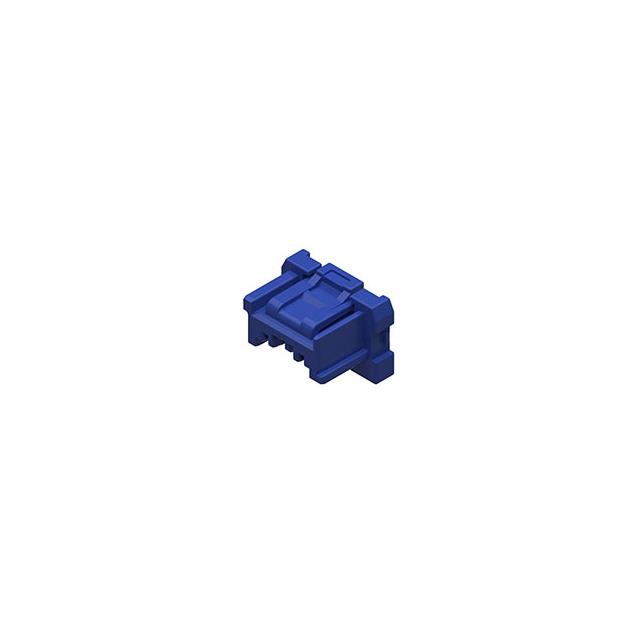

 Molex | Contacts Not Included | Female Socket | 0.059 in | 1.5 mm | Latch Lock | -40 C | 105 ░C | 1 | Blue | Crimp | Free Hanging (In-Line) | Receptacle | Polybutylene Terephthalate (PBT) Polyester | 2 |
 Molex | Contacts Not Included | Female Socket | 0.059 in | 1.5 mm | Latch Lock | -40 C | 105 ░C | 1 | Black | Crimp | Free Hanging (In-Line) | Receptacle | Polybutylene Terephthalate (PBT) Polyester | 12 |

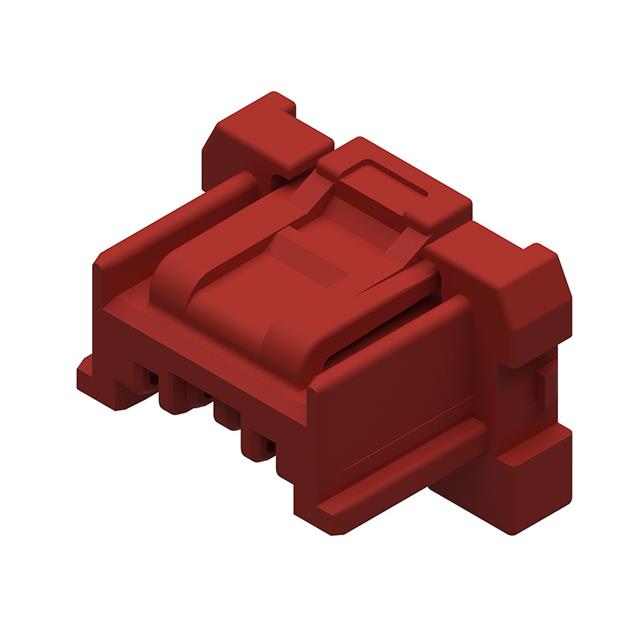

 Molex | Female Socket | 0.059 in | 1.5 mm | Latch Lock | -40 C | 105 ░C | 1 | Red | Crimp | Free Hanging (In-Line) | Receptacle | Polybutylene Terephthalate (PBT) Polyester | 4 | |
 Molex | Contacts Not Included | Female Socket | 0.059 in | 1.5 mm | Latch Lock | -40 C | 105 ░C | 1 | Black | Crimp | Free Hanging (In-Line) | Receptacle | Polybutylene Terephthalate (PBT) Polyester | 10 |

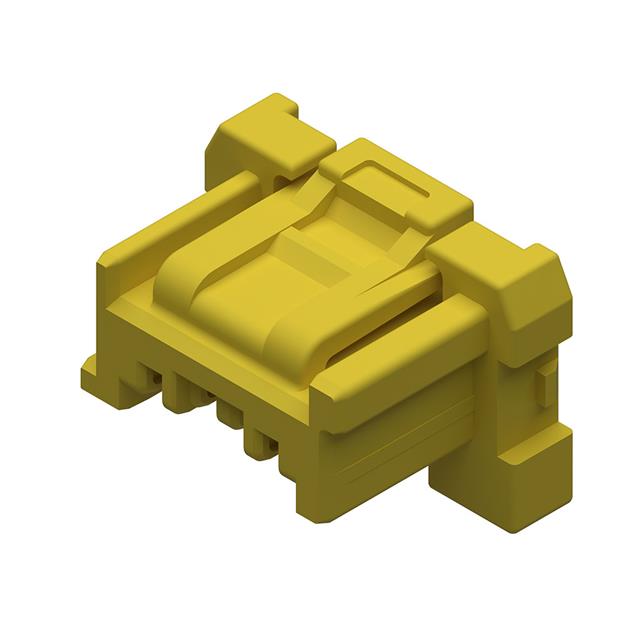

 Molex | Contacts Not Included | Female Socket | 0.059 in | 1.5 mm | Latch Lock | -40 C | 105 ░C | 1 | Yellow | Crimp | Free Hanging (In-Line) | Receptacle | Polybutylene Terephthalate (PBT) Polyester | 2 |
Molex | Contacts Not Included | Female Socket | 0.059 in | 1.5 mm | Latch Lock | -40 C | 105 ░C | 1 | Blue | Crimp | Free Hanging (In-Line) | Receptacle | Polybutylene Terephthalate (PBT) Polyester | 5 |
Molex | Contacts Not Included | Female Socket | 0.059 in | 1.5 mm | Latch Lock | -40 C | 105 ░C | 1 | Black | Crimp | Free Hanging (In-Line) | Receptacle | Polybutylene Terephthalate (PBT) Polyester | 15 |
Molex | Contacts Not Included | Female Socket | 0.059 in | 1.5 mm | Latch Lock | -40 C | 105 ░C | 1 | Natural | Crimp | Free Hanging (In-Line) | Receptacle | Polybutylene Terephthalate (PBT) Polyester | 8 |
Molex | Contacts Not Included | Female Socket | 0.059 in | 1.5 mm | Latch Lock | -40 C | 105 ░C | 1 | Red | Crimp | Free Hanging (In-Line) | Receptacle | Polybutylene Terephthalate (PBT) Polyester |
