ADS7038 Series
Manufacturer: Texas Instruments
Beta
⌘K
8-CHANNEL, 1-MSPS, 12-BIT ANALOG-TO-DIGITAL CONVERTER (ADC) WITH SPI, GPIOS AND CRC
| Part | Package / Case | Number of Bits | Input Type | Number of Inputs | Features | Reference Type | Supplier Device Package | Number of A/D Converters | Sampling Rate (Per Second) | Architecture | Configuration | Mounting Type | Voltage - Supply, Analog [Min] | Voltage - Supply, Analog [Max] | Voltage - Supply, Digital [Max] | Voltage - Supply, Digital [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Data Interface | Ratio - S/H:ADC | Supplied Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

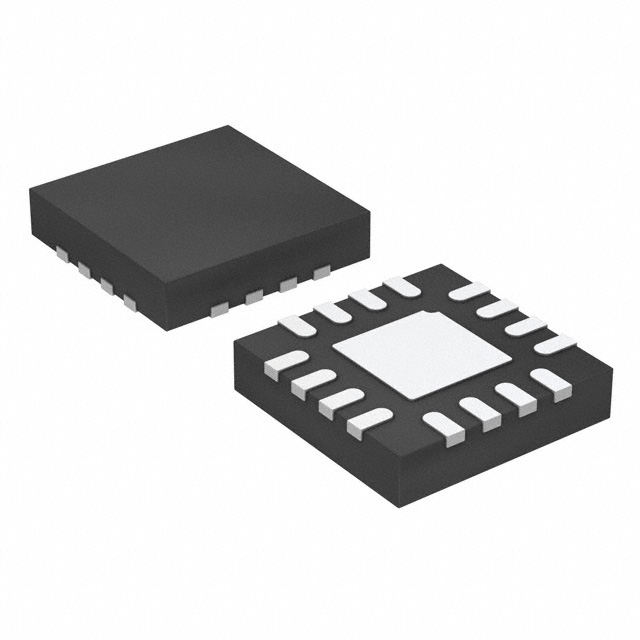

Texas Instruments | 16-WFQFN Exposed Pad | 12 bits | Single Ended | 8 | Digital Window Comparator GPIO Oscillator | Supply | 16-WQFN (3x3) | 1 | 1 M | SAR | MUX-ADC | Surface Mount | 2.35 V | 5.5 V | 5.5 V | 1.65 V | 125 °C | -40 °C | SPI | 0:1 | ||
 Texas Instruments | 12 bits | 1 | 1 M | Serial SPI | Board(s) Cable(s) | ADS7038-Q1 |
