UF92A Series

Catalog

FAN AXIAL 92X38MM 115VAC WIRE

Part	Material - Blade	Material - Frame	Fan Type	Width [y]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	RPM	Bearing Type	Air Flow	Air Flow	Noise	Power (Watts)	Weight [custom]	Weight [custom]	Termination	Voltage - Rated	Static Pressure	Static Pressure	Current Rating (Amps)	Termination	Current Rating (Amps) [Min]	Current Rating (Amps) [Max]	Voltage - Rated [Max]	Voltage - Rated [Min]	Features
Mechatronics Fan Group UF92A12-BWHR	Polybutylene Terephthalate (PBT)	Aluminum	Tubeaxial	38 mm	92 mm	92 mm	-40 C	70 °C	70 °C	-40 °C	CE cETL ETL TUV	3300 RPM	Ball	1.29 m³/min	46 CFM	38 dB(A)	12 W	449.96 g	0.992 lb	2 Wire Leads	115 VAC	79.7 Pa	0.32 in H2O

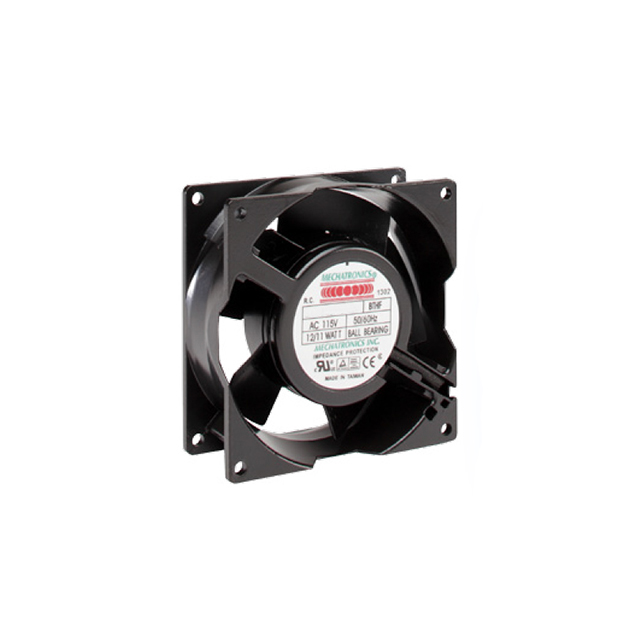

Mechatronics Fan Group UF92AM12-BWHR-F	Metal	Aluminum	Tubeaxial	38 mm	92.5 mm	92.5 mm	-40 C		90 °C		CE cUL TUV UL	3200 RPM	Ball	1.43 mł/min	51 CFM	42 dB	11 W	430.01 g	0.948 lb	2 Wire Leads	115 VAC	74.7 Pa	0.3 in H2O	120 mA

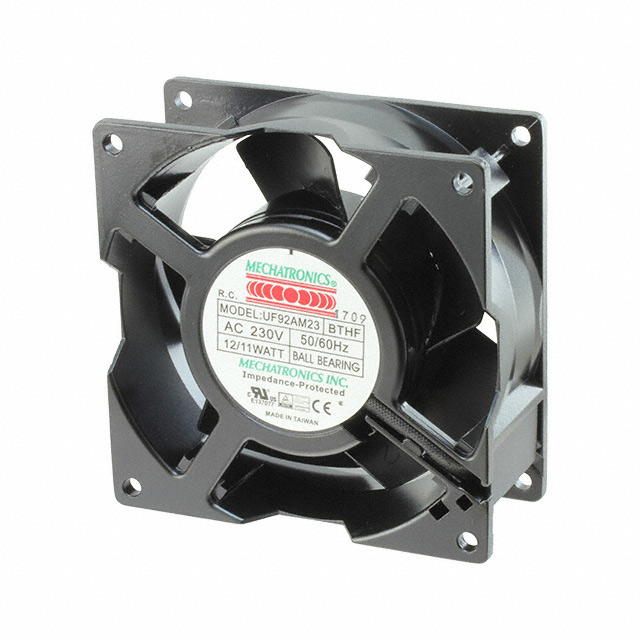

Mechatronics Fan Group UF92AM23-BTHR-F	Metal		Tubeaxial	38 mm	92.5 mm	92.5 mm	-40 C		90 °C		CE cUL TUV UL	3300 RPM	Ball	1.43 mł/min	51 CFM	42 dB	11 W	430.01 g	0.948 lb		230 VAC	74.7 Pa	0.3 in H2O	0.09 A	2
Mechatronics Fan Group UF92A23-BWHR	Polybutylene Terephthalate (PBT)	Aluminum	Tubeaxial	38 mm	92 mm	92 mm	-40 C	70 °C	70 °C	-40 °C	CE cETL ETL TUV	3300 RPM	Ball	1.29 m³/min	46 CFM	38 dB(A)	12 W	449.96 g	0.992 lb	2 Wire Leads	230 VAC	79.7 Pa	0.32 in H2O	0.09 A
Mechatronics Fan Group UF92AM12/23-BWHR	Metal	Aluminum	Tubeaxial	38 mm	92.5 mm	92.5 mm	-40 C		90 °C		CE cUL TUV UL	3200 RPM	Ball	1.43 mł/min	51 CFM	42 dB	11 W	430.01 g	0.948 lb	2 Wire Leads		74.7 Pa	0.3 in H2O			0.06 A	0.12 A	230 VAC	115 VAC	Dual Voltage

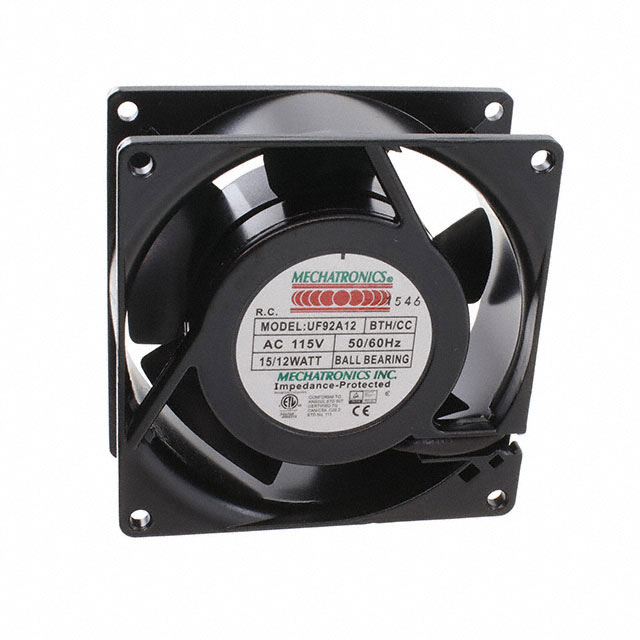

Mechatronics Fan Group UF92A12-BTHR-CC	Polybutylene Terephthalate (PBT)		Tubeaxial	38 mm	92 mm	92 mm	-40 C	70 °C	70 °C	-40 °C	CE cETL ETL TUV	3300 RPM	Ball	1.29 m³/min	46 CFM	38 dB(A)	12 W	449.96 g	0.992 lb		115 VAC	79.7 Pa	0.32 in H2O		2					Conformal Coating
