317-082 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 82POS 0.156

Part	Material - Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Card Thickness [Max]	Card Thickness [Min]	Gender	Contact Finish Thickness	Contact Finish Thickness	Pitch	Pitch	Number of Positions/Bay/Row	Color	Contact Finish	Mounting Type	Contact Material	Termination	Number of Rows [custom]	Read Out	Number of Positions	Contact Type	Card Type	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature
EDAC Inc. 317-082-540-804	Diallyl Phthalate (DAP)	-65 ░C	125 °C	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	0.25 Ám	10 Áin	3.96 mm	0.156 in	41	Green	Gold	Through Hole	Copper Alloy	Wire Wrap	2	Dual	82	Cantilever	Non Specified - Dual Edge	0.156 "	3.96 mm

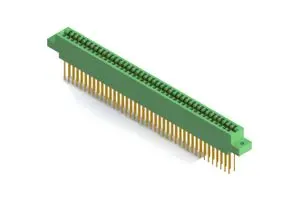

EDAC Inc. 317-082-540-802	Diallyl Phthalate (DAP)	-65 ░C	125 °C	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	0.25 Ám	10 Áin	3.96 mm	0.156 in	41	Green	Gold	Through Hole	Copper Alloy	Wire Wrap	2	Dual	82	Cantilever	Non Specified - Dual Edge

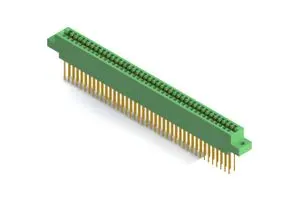

EDAC Inc. 317-082-542-804	Diallyl Phthalate (DAP)	-65 ░C	125 °C	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	0.25 Ám	10 Áin	3.96 mm	0.156 in	41	Green	Gold	Through Hole	Copper Alloy	Wire Wrap	2	Dual	82	Cantilever	Non Specified - Dual Edge	0.156 "	3.96 mm
EDAC Inc. 317-082-540-807	Diallyl Phthalate (DAP)	-65 ░C	125 °C	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	0.25 Ám	10 Áin	3.96 mm	0.156 in	41	Green	Gold	Through Hole	Copper Alloy	Wire Wrap	2	Dual	82	Cantilever	Non Specified - Dual Edge			M3 Threaded Insert Top Mount Opening
EDAC Inc. 317-082-542-808	Diallyl Phthalate (DAP)	-65 ░C	125 °C	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	0.25 Ám	10 Áin	3.96 mm	0.156 in	41	Green	Gold	Through Hole	Copper Alloy	Wire Wrap	2	Dual	82	Cantilever	Non Specified - Dual Edge			4-40 Threaded Insert Top Mount Opening

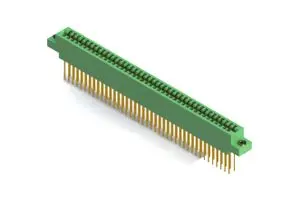

EDAC Inc. 317-082-540-803	Diallyl Phthalate (DAP)	-65 ░C	125 °C	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	0.25 Ám	10 Áin	3.96 mm	0.156 in	41	Green	Gold	Through Hole	Copper Alloy	Wire Wrap	2	Dual	82	Cantilever	Non Specified - Dual Edge	0.116 "	2.95 mm	Floating Bobbin Flush Mount

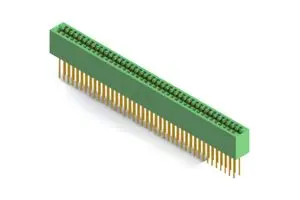

EDAC Inc. 317-082-542-801	Diallyl Phthalate (DAP)	-65 ░C	125 °C	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	0.25 Ám	10 Áin	3.96 mm	0.156 in	41	Green	Gold	Through Hole	Copper Alloy	Wire Wrap	2	Dual	82	Cantilever	Non Specified - Dual Edge
EDAC Inc. 317-082-542-803	Diallyl Phthalate (DAP)	-65 ░C	125 °C	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	0.25 Ám	10 Áin	3.96 mm	0.156 in	41	Green	Gold	Through Hole	Copper Alloy	Wire Wrap	2	Dual	82	Cantilever	Non Specified - Dual Edge	0.116 "	2.95 mm	Floating Bobbin Flush Mount
EDAC Inc. 317-082-540-801	Diallyl Phthalate (DAP)	-65 ░C	125 °C	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	0.25 Ám	10 Áin	3.96 mm	0.156 in	41	Green	Gold	Through Hole	Copper Alloy	Wire Wrap	2	Dual	82	Cantilever	Non Specified - Dual Edge
EDAC Inc. 317-082-542-807	Diallyl Phthalate (DAP)	-65 ░C	125 °C	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	0.25 Ám	10 Áin	3.96 mm	0.156 in	41	Green	Gold	Through Hole	Copper Alloy	Wire Wrap	2	Dual	82	Cantilever	Non Specified - Dual Edge			M3 Threaded Insert Top Mount Opening
