R11218 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

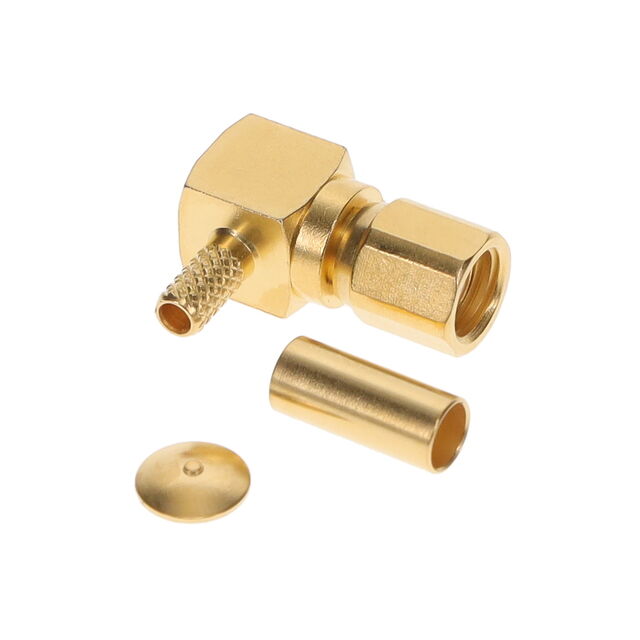

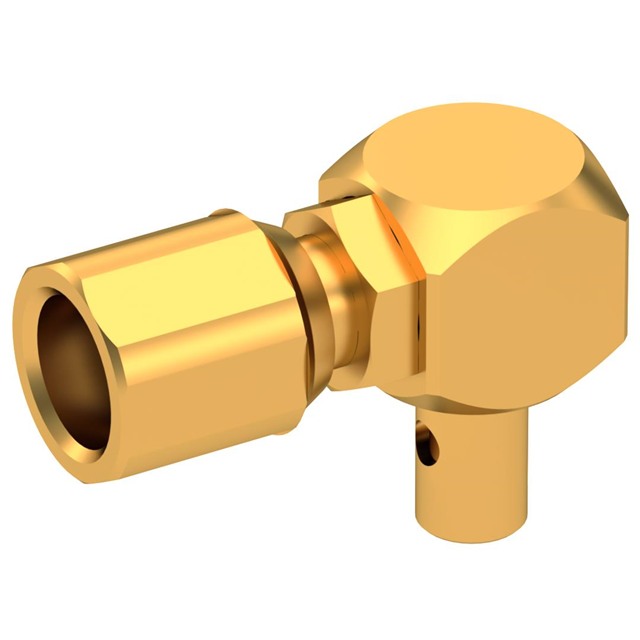

SMC / RIGHT ANGLE PLUG CRIMP TYP
| Part | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Body Finish | Voltage Rating | Center Contact Plating | Body Material | Center Contact Material | Number of Ports | Contact Termination | Connector Type | Mounting Type | Frequency - Max [Max] | Cable Group | Shield Termination | Housing Color | Connector Style | Fastening Type | Impedance | Insertion Loss | Includes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | 500 | Gold | 335 V | Gold | Brass | Beryllium Copper | 1 | Crimp | Female Socket Plug | Free Hanging (In-Line) Right Angle | 10 GHz | 179 187 188 316 RG-174 | Crimp | Gold | SMC | Threaded | 50 Ohms | ||
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | 500 | Gold | 335 V | Gold | Brass | Beryllium Copper | 1 | Crimp | Female Socket Plug | Free Hanging (In-Line) Right Angle | 10 GHz | RG-174 RG-179 RG-316 | Crimp | Gold | SMC | Threaded | 50 Ohms | 0.5 dB | 1 Connector 1 Ferrule |
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | 500 | Gold | 250 V | Gold | Brass | Beryllium Copper | 1 | Crimp | Female Socket Plug | Free Hanging (In-Line) Right Angle | 10 GHz | RG-178 | Crimp | Gold | SMC | Threaded | 50 Ohms |
