MAX1300 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K
IC ADC 16BIT SAR 24TSSOP
| Part | Number of Bits | Supplier Device Package | Number of A/D Converters | Data Interface | Package / Case | Package / Case | Mounting Type | Reference Type | Input Type | Voltage - Supply, Digital | Architecture | Voltage - Supply, Analog | Features | Configuration | Operating Temperature [Max] | Operating Temperature [Min] | Sampling Rate (Per Second) | Ratio - S/H:ADC | Number of Inputs | Utilized IC / Part | Supplied Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices Inc./Maxim Integrated | 16 | 24-TSSOP | 1 | SPI | 24-TSSOP | 0.173 in 4.4 mm | Surface Mount | External Internal | Differential Single Ended | 5 V | SAR | 5 V | PGA | MUX-PGA-S/H-ADC | 85 °C | -40 °C | 115k | 1:1 | 4 8 | ||

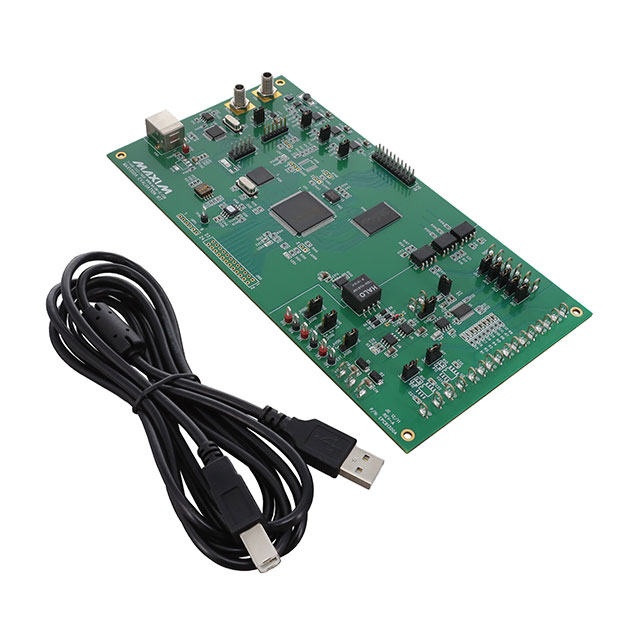

 Analog Devices Inc./Maxim Integrated | 16 | 1 | SPI | 115k | MAX1300A | Board(s) | |||||||||||||||
Analog Devices Inc./Maxim Integrated | 16 | 24-TSSOP | 1 | SPI | 24-TSSOP | 0.173 in 4.4 mm | Surface Mount | External Internal | Differential Single Ended | 5 V | SAR | 5 V | PGA | MUX-PGA-S/H-ADC | 85 °C | -40 °C | 115k | 1:1 | 4 8 | ||
Analog Devices Inc./Maxim Integrated | 16 | 24-TSSOP | 1 | SPI | 24-TSSOP | 0.173 in 4.4 mm | Surface Mount | External Internal | Differential Single Ended | 5 V | SAR | 5 V | PGA | MUX-PGA-S/H-ADC | 85 °C | -40 °C | 115k | 1:1 | 4 8 |
