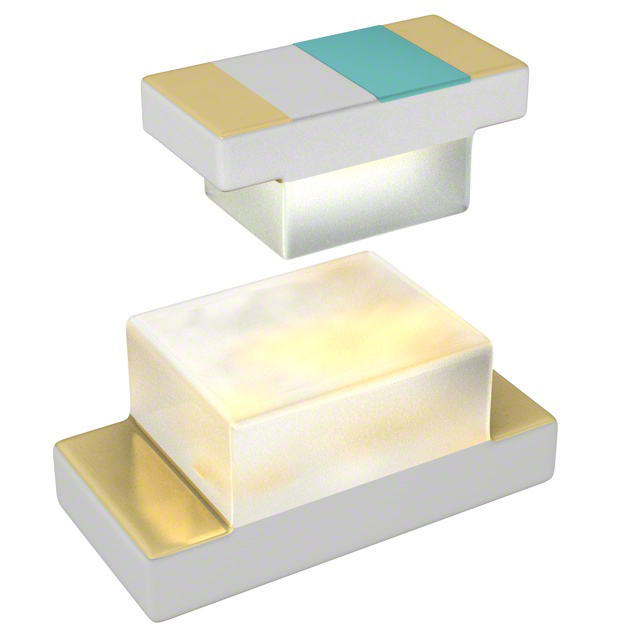

QTLP600 Series

Manufacturer: Everlight Electronics Co Ltd

Catalog

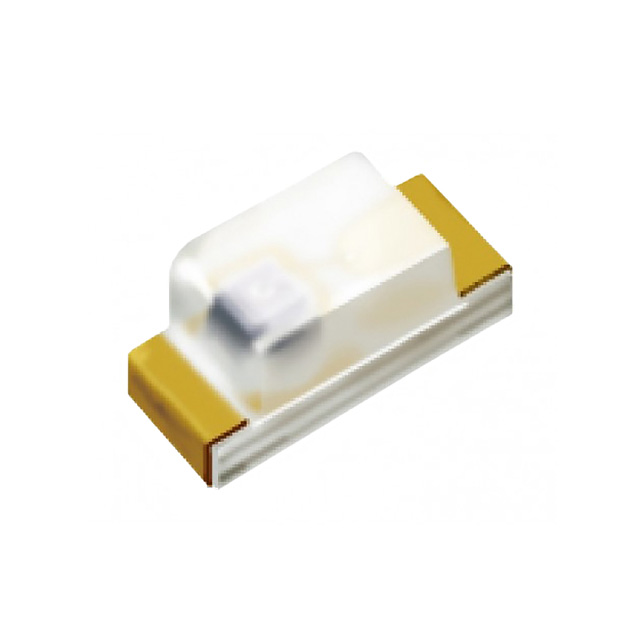

LED UNI-COLOR GREEN 565NM 2-PIN CHIP 0603(1608METRIC) T/R

Part	Color	Lens Size [y]	Lens Size [x]	Size / Dimension [x]	Size / Dimension [y]	Wavelength - Peak	Wavelength - Dominant	Current - Test	Mounting Type	Height (Max) [Max] [z]	Viewing Angle	Package / Case	Package / Case	Millicandela Rating	Lens Style	Voltage - Forward (Vf) (Typ)	Configuration	Lens Color	Lens Transparency	Millicandela Rating	Current - Test	Voltage - Forward (Vf) (Typ)	Supplier Device Package
Everlight Electronics Co Ltd QTLP600C4TR	Green	0.8 mm	1.2 mm	1.6 mm	0.8 mm	565 nm	570 nm	20 mA	Surface Mount	0.8 mm	100 °	1608 Metric	0603	18 mcd	Rectangle with Flat Top	2.1 V	Standard	Colorless	Clear
Everlight Electronics Co Ltd QTLP600CRYTR	Red Yellow-Green	1.1 mm	1.2 mm	1.9 mm	1.6 mm		589 nm 624 nm		Surface Mount	0.8 mm	130 °		0606 (1616 Metric)		Rectangle with Flat Top		Independent	Colorless	Clear	30mcd Red 30mcd Yellow-Green	20mA Red 20mA Yellow-Green	2V Red 2V Yellow-Green	0606
Everlight Electronics Co Ltd QTLP600CYTR	Yellow	0.8 mm	1.2 mm	1.6 mm	0.8 mm	590 nm		20 mA	Surface Mount	0.8 mm	100 °	1608 Metric	0603	40 mcd	Rectangle with Flat Top	2.1 V	Standard	Colorless	Clear
Everlight Electronics Co Ltd QTLP600C7TR	Red	0.8 mm	1.2 mm	1.6 mm	0.8 mm	660 nm	645 nm	20 mA	Surface Mount	0.8 mm	100 °	1608 Metric	0603	20 mcd	Rectangle with Flat Top	1.9 V	Standard	Colorless	Clear
Everlight Electronics Co Ltd QTLP600CAGTR	Yellow-Green	0.8 mm	1.2 mm	1.6 mm	0.8 mm	575 nm	573 nm	20 mA	Surface Mount	0.8 mm	100 °	1608 Metric	0603	15 mcd	Rectangle with Flat Top	2 V	Standard	Colorless	Clear
Everlight Electronics Co Ltd QTLP600CEBTR	Blue			1.6 mm	0.8 mm	465 nm		5 mA	Surface Mount	0.8 mm	100 °	1608 Metric	0603	25 mcd		2.8 V	Standard	Colorless	Clear
Everlight Electronics Co Ltd QTLP600CRTR	Red	0.8 mm	1.2 mm	1.6 mm	0.8 mm	630 nm		20 mA	Surface Mount	0.8 mm	100 °	1608 Metric	0603	40 mcd	Rectangle with Flat Top	2 V	Standard	Colorless	Clear
Everlight Electronics Co Ltd QTLP600CIGTR	Green	0.8 mm	1.2 mm	1.6 mm	0.8 mm	520 nm	525 nm	20 mA	Surface Mount	0.8 mm	100 °	1608 Metric	0603	110 mcd	Rectangle with Flat Top	3.5 V	Standard	Colorless	Clear
Everlight Electronics Co Ltd QTLP600CBTR	Blue	0.8 mm	1.2 mm	1.6 mm	0.8 mm	430 nm	465 nm	20 mA	Surface Mount	0.8 mm	100 °	1608 Metric	0603	20 mcd	Rectangle with Flat Top	3.8 V	Standard	Colorless	Clear
Everlight Electronics Co Ltd QTLP600C2TR	Red	0.8 mm	1.2 mm	1.6 mm	0.8 mm	635 nm	630 nm	20 mA	Surface Mount	0.8 mm	100 °	1608 Metric	0603	9 mcd	Rectangle with Flat Top	2 V	Standard	Colorless	Clear
