TPSM8D6C24 Series

2.95-V to 16-V input, dual 35-A, PMBus® power module

Catalog

2.95-V to 16-V input, dual 35-A, PMBus® power module

Part	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Voltage - Input (Max) [Max]	Features	Mounting Type	Voltage - Output 2 [Min]	Voltage - Output 2 [Max]	Efficiency	Type	Package / Case	Number of Outputs	Current - Output (Max)	Current - Output (Max)	Voltage - Input (Min) [Min]	Supplier Device Package	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Control Features	Applications	Operating Temperature [Max]	Operating Temperature [Min]

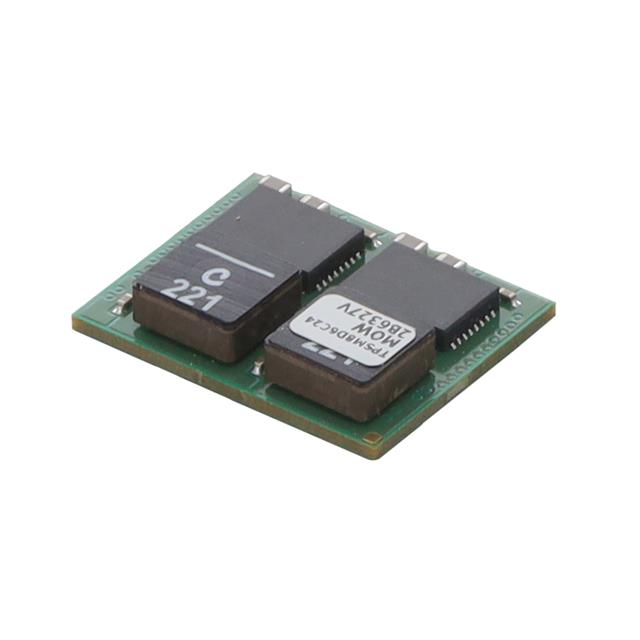

Texas Instruments TPSM8D6C24MOWR	3.6 V	0.5 V	16 V	Adjustable Output PMBus™ Remote On/Off Remote Sense	Surface Mount	0.5 V	3.6 V	80 %	Non-Isolated PoL Module	59-SMD Module	2	35 A	35 A	2.95 V	59-QFM (16x20)	0.79 in 20 mm	0.17 in 4.2 mm	0.63 in 16 mm	Active Low Enable	ITE (Commercial)	125 °C	-40 °C

Catalog

2.95-V to 16-V input, dual 35-A, PMBus® power module

Key Features

• 4.25 V to 16 V with PVIN tied to AVIN with internal LDO2.95 V to 16 V with PVIN and AVIN split rail, or with external bias on VDD5Integrated MOSFETs, inductors, and basic passivesAverage current mode control with selectable internal compensation0.5-V to 3.6-V output voltage range from through pinstrap0.25-V to 3.6-V PMBus VOUT_COMMAND rangeExtensive PMBus command set with telemetry for V OUT, I OUT, and die temperatureDifferential remote sensing with an internal FB divider for < 1% V OUT error–40°C to +125°C junction temperature rangeAVS and margining capabilities through PMBusMulti-function select (MSEL) pins for pinstrap programming PMBus defaultsNine selectable switching frequencies from 275 kHz to 1.1 MHzFrequency sync in and sync outSupports prebiased output16-mm × 20-mm × 4.3-mm, 59-pin MOW packageCreate a custom design using the TPSM8D6C24 with theWEBENCH Power Designer4.25 V to 16 V with PVIN tied to AVIN with internal LDO2.95 V to 16 V with PVIN and AVIN split rail, or with external bias on VDD5Integrated MOSFETs, inductors, and basic passivesAverage current mode control with selectable internal compensation0.5-V to 3.6-V output voltage range from through pinstrap0.25-V to 3.6-V PMBus VOUT_COMMAND rangeExtensive PMBus command set with telemetry for V OUT, I OUT, and die temperatureDifferential remote sensing with an internal FB divider for < 1% V OUT error–40°C to +125°C junction temperature rangeAVS and margining capabilities through PMBusMulti-function select (MSEL) pins for pinstrap programming PMBus defaultsNine selectable switching frequencies from 275 kHz to 1.1 MHzFrequency sync in and sync outSupports prebiased output16-mm × 20-mm × 4.3-mm, 59-pin MOW packageCreate a custom design using the TPSM8D6C24 with theWEBENCH Power Designer

Description

The TPSM8D6C24 is a highly integrated, easy-to-use, non-isolated DC/DC buck power module. The TPSM8D6C24 provides two 35-A independent outputs or a single stacked 2-phase 70-A output. Two modules can be stacked for a 4-phase 140-A output. The device has an option to overdrive the internal 5-V LDO with an external 5-V supply to enable a lower input voltage range down to 2.95 V and improve the efficiency of the converter. The TPSM8D6C24 power module uses a proprietary fixed-frequency current-mode control with input feedforward and selectable internal compensation components for minimal size and stability over a wide range of output capacitances. The PMBus interface with 1-MHz clock support provides a convenient, standardized digital interface for converter configuration as well as monitoring of key parameters including output voltage, output current, and internal die temperature. Response to fault conditions can be set to restart, latch off, or ignore, depending on system requirements. Back-channel communication between stacked devices enables all TPSM8D6C24 converters, powering a single output rail to share a single address to simplify system software or firmware design. Key parameters including output voltage, switching frequency, soft-start time, and overcurrent fault limits can also be configured through BOM selection without PMBus communication to support program free power up. The TPSM8D6C24 is a highly integrated, easy-to-use, non-isolated DC/DC buck power module. The TPSM8D6C24 provides two 35-A independent outputs or a single stacked 2-phase 70-A output. Two modules can be stacked for a 4-phase 140-A output. The device has an option to overdrive the internal 5-V LDO with an external 5-V supply to enable a lower input voltage range down to 2.95 V and improve the efficiency of the converter. The TPSM8D6C24 power module uses a proprietary fixed-frequency current-mode control with input feedforward and selectable internal compensation components for minimal size and stability over a wide range of output capacitances. The PMBus interface with 1-MHz clock support provides a convenient, standardized digital interface for converter configuration as well as monitoring of key parameters including output voltage, output current, and internal die temperature. Response to fault conditions can be set to restart, latch off, or ignore, depending on system requirements. Back-channel communication between stacked devices enables all TPSM8D6C24 converters, powering a single output rail to share a single address to simplify system software or firmware design. Key parameters including output voltage, switching frequency, soft-start time, and overcurrent fault limits can also be configured through BOM selection without PMBus communication to support program free power up.
