EYW06015024 Series
Manufacturer: YS TECH USA
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

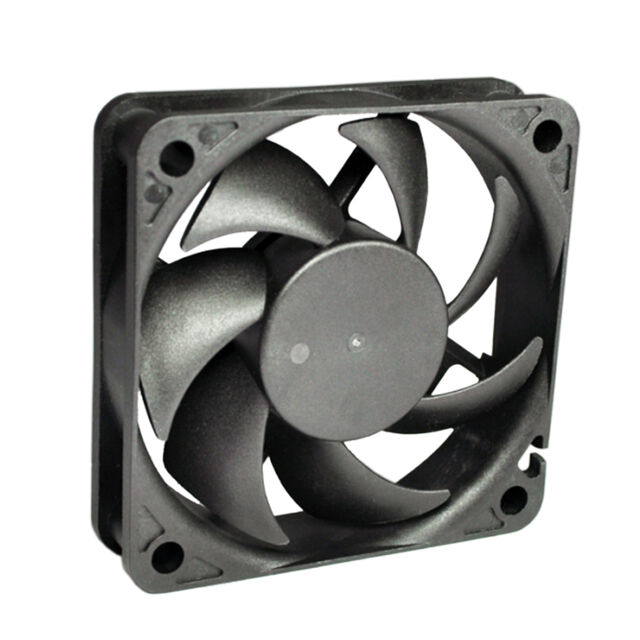

FAN AXIAL 60X15MM 24VDC WIRE
| Part | Material - Blade | Material - Frame | Voltage Range (Min) | Voltage Range (Max) | Size / Dimension Height | Size / Dimension Shape | Size / Dimension Length | Width | Voltage - Rated | Fan Type | Termination Leads Count | Termination Type | Termination | Lifetime | Current Rating | Air Flow | Noise | Bearing Type | Power (Watts) | Static Pressure | RPM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 YS TECH USA | PBT Polybutylene Terephthalate | Polybutylene Terephthalate (PBT) | 12 V | 26.4 VDC | 60 mm | Square | 60 mm | 15 mm | 24 VAC | Tubeaxial | 2 leads | Wire Leads | 2 Wire Leads | ||||||||
YS TECH USA | PBT Polybutylene Terephthalate | Polybutylene Terephthalate (PBT) | 12 V | 26.4 VDC | 60 mm | Square | 60 mm | 15 mm | 24 VAC | Tubeaxial | 3 | Wire Leads | 3 Wire Leads | 75000 Hrs | 0.055 A | 20.9 CFM | 33 dB | Ball | 1.32 W | 0.154 in H2O | 4800 RPM |
