045714 Series
Manufacturer: Molex
Beta
⌘K

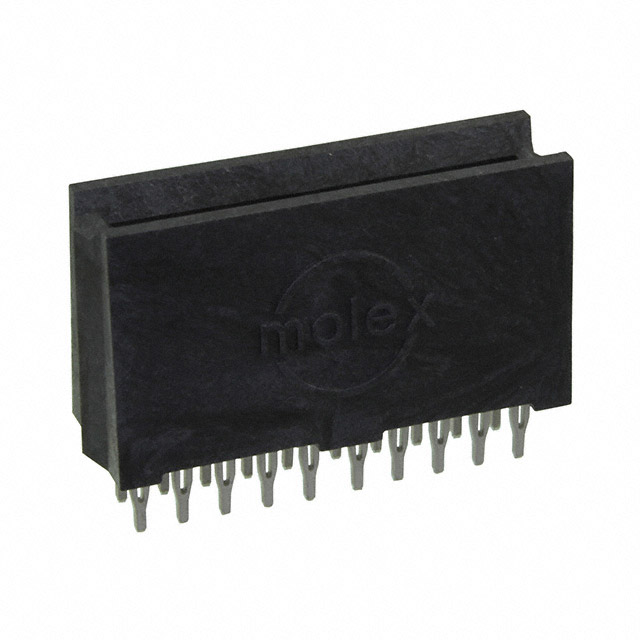

CONN EDGE DUAL FMALE 4POS 0.508
| Part | Gender | Number of Positions | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness | Color | Card Thickness | Card Thickness | Number of Rows | Read Out | Contact Finish | Material - Insulation | Termination | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Card Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Female | 4 | 0.508 in | 12.9 mm | 0.76 Ám | 30 Áin | Black | 0.093 in | 2.36 mm | 2 | Dual | Gold | Liquid Crystal Polymer (LCP) | Press-Fit | Through Hole | -40 °C | 105 ░C | Copper Alloy | Non Specified - Dual Edge |
Molex | Female | 8 | 0.508 in | 12.9 mm | 0.76 Ám | 30 Áin | Black | 0.093 in | 2.36 mm | 2 | Dual | Gold | Liquid Crystal Polymer (LCP) | Press-Fit | Through Hole | -40 °C | 105 ░C | Copper Alloy | Non Specified - Dual Edge |
