5747 Series

Manufacturer: BRADY

Catalog

5747-HPHV PROCESS WATER/GRN/STY

Part	Material	Color	Label Type	Label Size [y]	Label Size [x]	Label Size [y]	Label Size [x]	Color - Legend	Arrangement	Material - Body	Features	Print Type	Length	Length	Color - Background	Language	Outside Pipe Diameter (Min)	Outside Pipe Diameter (Min) [Min]	Location	Width [x]	Width [x]	Applications	Shape	Application Specifics	Mounting Type	Outside Pipe Diameter (Max) [Max] [diameter]	Outside Pipe Diameter (Max) [Max] [diameter]	Legend (Symbol Only)	Legend (Text)	Outside Pipe Diameter (Max) [diameter]	Outside Pipe Diameter (Max) [diameter]	Width	Width	Outside Pipe Diameter (Max) [Max]	Outside Pipe Diameter (Max) [Max]	Outside Pipe Diameter (Min) [Min]	Length [x]	Length [x]
BRADY 5747-HPHV	Polyester	Green Background White Legend	Process Water	101.6 mm	609.6 mm	4 "	24 in

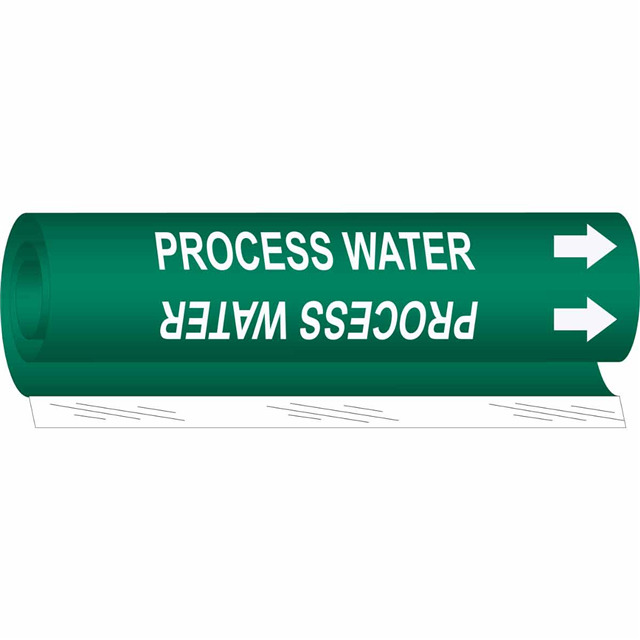

BRADY 5747-O								White	Symbol and Text	Plastic	Abrasion Resistant Chemical Resistant Humidity Resistant UV Resistant Water Resistant Weather Resistant	Pre-Printed	8 in	203.2 mm	Green	63000 A 69000 A	34.93 mm	1.375 in	Outdoor	127 mm	127 mm	General	Rectangle	Water Fluids	Snap On	0.5 in	12.7 mm	Directional Arrow	Process Water
BRADY 5747-I								White	Symbol and Text	Plastic	Abrasion Resistant Chemical Resistant Humidity Resistant UV Resistant Water Resistant Weather Resistant	Pre-Printed	9 in	228.6 mm	Green	63000 A 69000 A	60.33 mm	2.375 in	Outdoor			Pipe	Rectangle	Directionality	Snap On			Directional Arrow	Process Water	1.5 in	38.1 mm	8 in	203.2 mm
BRADY 5747-II								White	Symbol and Text	Plastic	Abrasion Resistant Chemical Resistant Humidity Resistant UV Resistant Water Resistant Weather Resistant	Pre-Printed			Green	63000 A 69000 A		7.875 in	Outdoor			General	Rectangle	Water Fluids	Snap On			Directional Arrow	Process Water			12 in	304.8 mm	63.5 mm	2.5 in	200.03 mm	660.4 mm	26 in
