CWSN99 Series

Catalog

SN99.3CU.7 WRMAP3 .032 1# SPL

Part	Weight	Weight	Composition	Storage/Refrigeration Temperature	Type	Flux Type	Melting Point	Form	Form	Diameter [diameter]	Diameter [diameter]	Wire Gauge	Shelf Life	Shelf Life Start	Melting Point
Amerway Inc CWSN99.3 WRMAP3 .032	453.59 g	1 lbs	Sn99.3Cu0.7 (99.3/0.7)	Room Temperature	Wire Solder	Rosin Mildly Activated (RMA)	361 °F	1 lb 454 g	Spool	0.81 mm	0.032 in	20 AWG	60 Months	Date of Manufacture
Amerway Inc CWSN99.3 WRMAP3 .015	453.59 g	1 lbs	Sn99.3Cu0.7 (99.3/0.7)	Room Temperature	Wire Solder	Rosin Mildly Activated (RMA)	361 °F	1 lb 454 g	Spool	0.38 mm	0.015 in	27 AWG	60 Months	Date of Manufacture

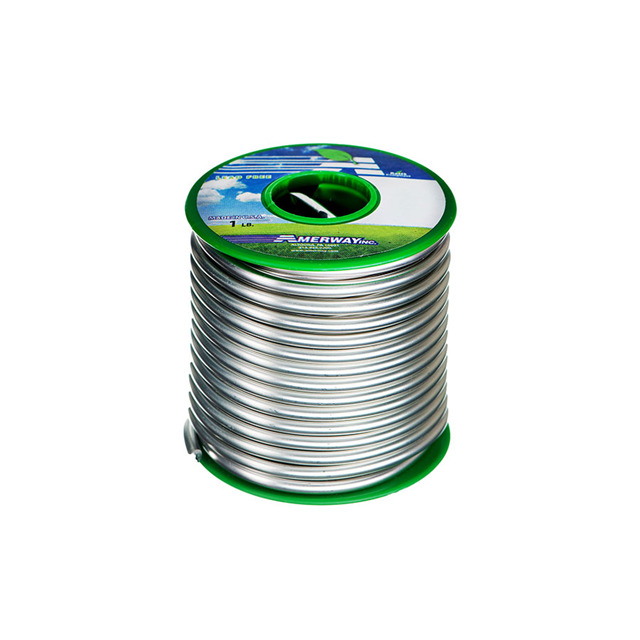

Amerway Inc CWSN99.3.062 1#	453.59 g	1 lbs	Sn99.3Cu0.7 (99.3/0.7)	Room Temperature	Wire Solder	Rosin Activated (RA)	361 °F	1 lb 454 g	Spool	1.57 mm	0.062 in	14.5 AWG	60 Months	Date of Manufacture
Amerway Inc CWSN99.3 WRAP3.015	453.59 g	1 lbs	Sn99.3Cu0.7 (99.3/0.7)	Room Temperature	Wire Solder	Rosin Activated (RA)	361 °F	1 lb 454 g	Spool	0.38 mm	0.015 in	27 AWG	60 Months	Date of Manufacture
Amerway Inc CWSN99.3 NCCW2.2 .032	453.59 g	1 lbs	Sn99.3Cu0.7 (99.3/0.7)	Room Temperature	Wire Solder	No-Clean	361 °F	1 lb 454 g	Spool	0.81 mm	0.032 in	20 AWG	60 Months	Date of Manufacture
Amerway Inc CWSN99.3 WRMAP .062	453.59 g	1 lbs	Sn99.3Cu0.7 (99.3/0.7)	Room Temperature	Wire Solder	Rosin Mildly Activated (RMA)	361 °F	1 lb 454 g	Spool	1.57 mm	0.062 in	14.5 AWG	60 Months	Date of Manufacture
Amerway Inc CWSN99.3 NCCW2.2 .015	453.59 g	1 lbs	Sn99.3Cu0.7 (99.3/0.7)	Room Temperature	Wire Solder	No-Clean	440 °F	1 lb 454 g	Spool	0.38 mm	0.015 in	27 AWG	60 Months	Date of Manufacture	227 °C
Amerway Inc CWSN99.3 NCCW2.2 .062	453.59 g	1 lbs	Sn99.3Cu0.7 (99.3/0.7)	Room Temperature	Wire Solder	No-Clean	361 °F	1 lb 454 g	Spool	1.57 mm	0.062 in	14.5 AWG	60 Months	Date of Manufacture
