Q2-F-3/4 Series

Manufacturer: Qualtek

Catalog

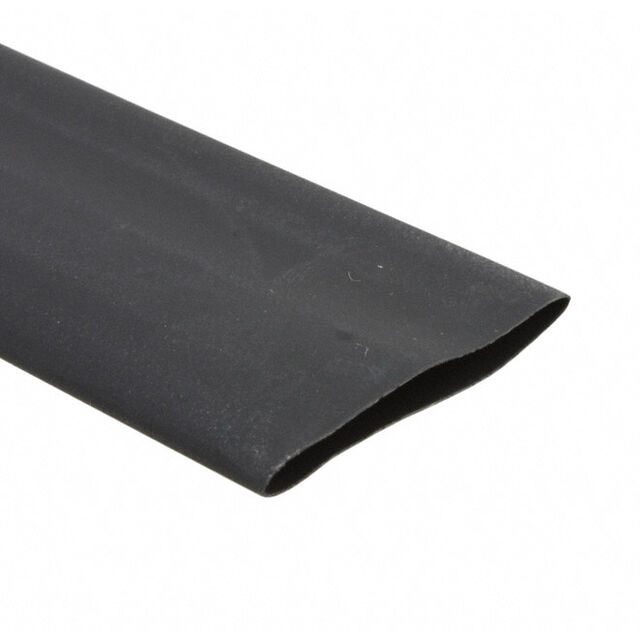

HEATSHRINK POLY Q2F 3/4" BLK 15'

Part	Operating Temperature [Min]	Operating Temperature [Max]	Shrink Temperature	Material	Color	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Recovered Wall Thickness	Recovered Wall Thickness	Shelf Life	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Features	Length	Length	Type	Length [x]	Length [x]	Spool Size [x]	Spool Size [x]	Length	Length	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Length [x]
Qualtek Q2-F-3/4-01-QX15FT	-55 C	135 °C	70 °C	Polyolefin (PO)	Black	40 °C	14 °F	-50 °F	40 °C	1	2	0.027 in	0.69 mm	144 Months	9.53 mm	0.375 in	Flame Retardant	15 '	4.6 m	Tubing Flexible
Qualtek Q2-F-3/4-01-QB48IN-5	-55 C	135 °C	70 °C	Polyolefin (PO)	Black	40 °C	14 °F	-50 °F	40 °C	1	2	0.027 in	0.69 mm	144 Months	9.53 mm	0.375 in	Flame Retardant			Tubing Flexible	4 ft	1.22 m
Qualtek Q2-F-3/4-01-SS200FT	-55 C	135 °C	70 °C	Polyolefin (PO)	Black	40 °C	14 °F	-50 °F	40 °C	1	2	0.027 in	0.69 mm	144 Months	9.53 mm	0.375 in	Flame Retardant	0.062 ft 0.083 ft 0.125 ft 0.167 ft 0.5 ' 200 ft	19.05 mm 25.4 mm 38.1 mm 50.8 mm 61 m 101.6 mm 152.4 mm	Tubing Flexible	0.25 ft 0.333 ft	76.2 mm	200 ft	61 m	0.75 " 1 " 1.5 in 2 in 4 in 6 "	Enter Number of Feet in Order Quantity	19.1 mm	0.752 in	3 in
