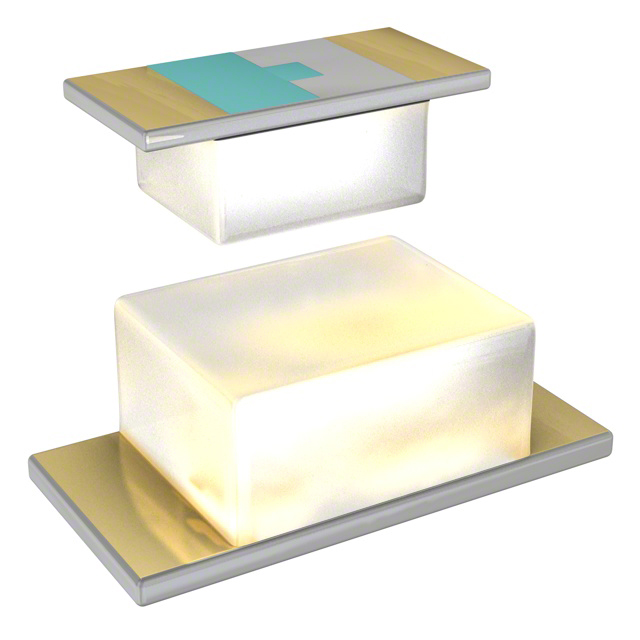

QTLP601 Series

Manufacturer: Everlight Electronics Co Ltd

Catalog

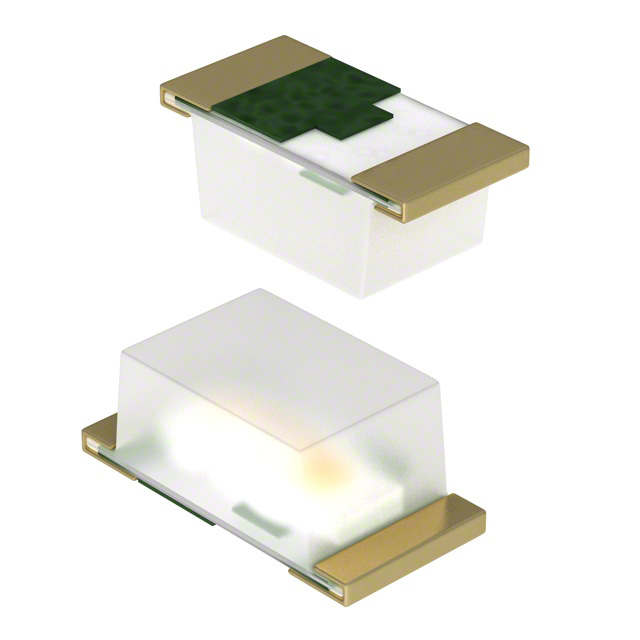

LED BLUE CLEAR 0603 SMD

Part	Package / Case	Package / Case	Current - Test	Configuration	Millicandela Rating	Lens Transparency	Height (Max) [z]	Lens Color	Mounting Type	Lens Style	Lens Size [y]	Lens Size [x]	Viewing Angle	Voltage - Forward (Vf) (Typ)	Color	Size / Dimension [x]	Size / Dimension [y]	Wavelength - Dominant	Wavelength - Peak
Everlight Electronics Co Ltd QTLP601CEBTR	1608 Metric	0603	5 mA	Standard	17 mcd	Clear	0.6 mm	Colorless	Surface Mount	Rectangle with Flat Top	0.8 mm	1.2 mm	120 °	3.15 V	Blue	1.6 mm	0.8 mm	473 nm
Everlight Electronics Co Ltd QTLP601CBTR	1608 Metric	0603	20 mA	Standard	20 mcd	Clear	0.6 mm	Colorless	Surface Mount	Rectangle with Flat Top	0.8 mm	1.2 mm	120 °	3.8 V	Blue	1.6 mm	0.8 mm	465 nm	430 nm
Everlight Electronics Co Ltd QTLP601C7TR	1608 Metric	0603	20 mA	Standard	15 mcd	Clear	0.6 mm	Colorless	Surface Mount	Rectangle with Flat Top	0.8 mm	1.2 mm	120 °	1.9 V	Red	1.6 mm	0.8 mm	645 nm	660 nm
Everlight Electronics Co Ltd QTLP601CYTR	1608 Metric	0603	20 mA	Standard	35 mcd	Clear	0.6 mm	Colorless	Surface Mount	Rectangle with Flat Top	0.8 mm	1.2 mm	120 °	2 V	Yellow	1.6 mm	0.8 mm	589 nm	590 nm
Everlight Electronics Co Ltd QTLP601CIGTR	1608 Metric	0603	20 mA	Standard	70 mcd	Clear	0.6 mm	Colorless	Surface Mount	Rectangle with Flat Top	0.8 mm	1.2 mm	120 °	3.5 V	Green	1.6 mm	0.8 mm	525 nm	520 nm
Everlight Electronics Co Ltd QTLP601CRTR	1608 Metric	0603	20 mA	Standard	35 mcd	Clear	0.6 mm	Colorless	Surface Mount	Rectangle with Flat Top	0.8 mm	1.2 mm	120 °	2 V	Red	1.6 mm	0.8 mm	624 nm	630 nm
Everlight Electronics Co Ltd QTLP601C4TR	1608 Metric	0603	20 mA	Standard	15 mcd	Clear	0.6 mm	Colorless	Surface Mount	Rectangle with Flat Top	0.8 mm	1.2 mm	120 °	2.1 V	Green	1.6 mm	0.8 mm	570 nm	565 nm
