DFSG Series

Catalog

FIXED IND 3A 165 MOHM TH

Part	Mounting Type	Package / Case	Current Rating (Amps)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	DC Resistance (DCR)

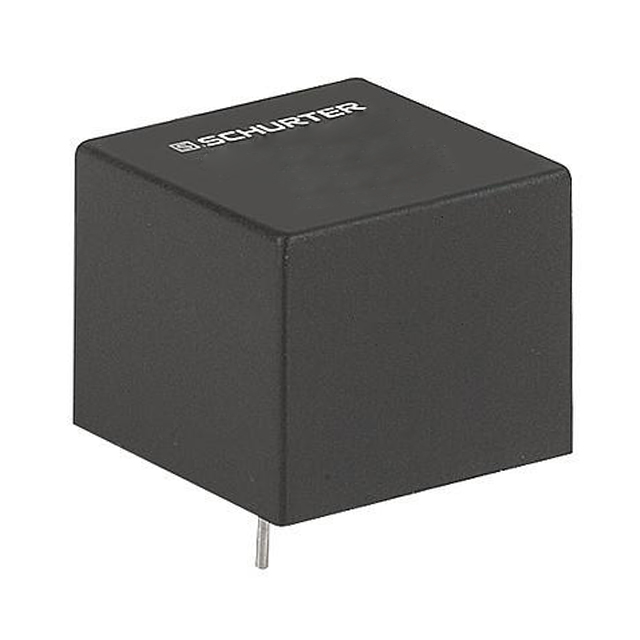

SCHURTER Inc. DFSG-30-0001	Through Hole	Radial Horizontal - Corner Terminals	3 A	30 mm	30 mm	1.181 in	1.181 in	100 °C	-25 °C	165 mOhm

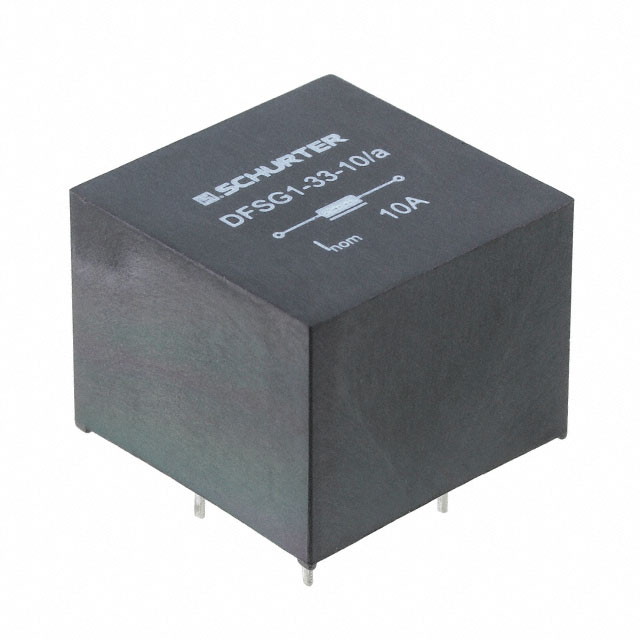

SCHURTER Inc. DFSG-33-0002	Through Hole	Radial Horizontal - Corner Terminals	10 A	33 mm	33 mm	1.299 in	1.299 in	100 °C	-25 °C	30 mOhm

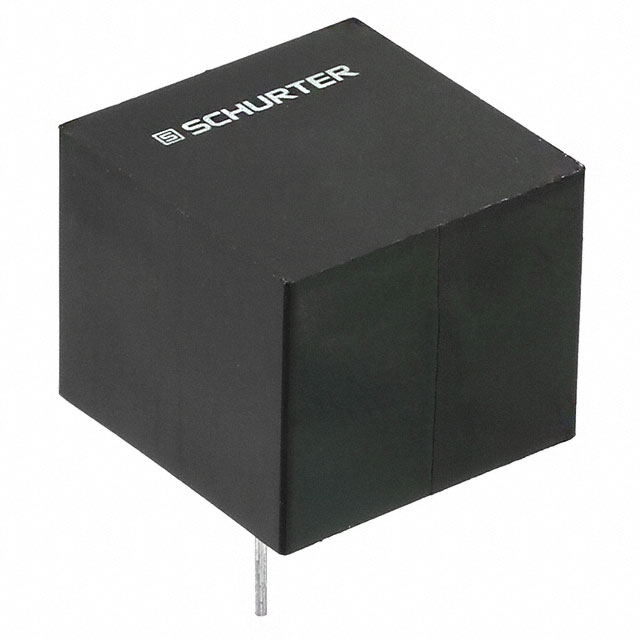

SCHURTER Inc. DFSG-20-0002	Through Hole	Radial Horizontal - Corner Terminals	1.5 A	18 mm	18 mm	0.709 in	0.709 in	100 °C	-25 °C	450 mOhm
SCHURTER Inc. DFSG-20-0001	Through Hole	Radial Horizontal - Corner Terminals	800 mA	18 mm	18 mm	0.709 in	0.709 in	100 °C	-25 °C	1.3 Ohm

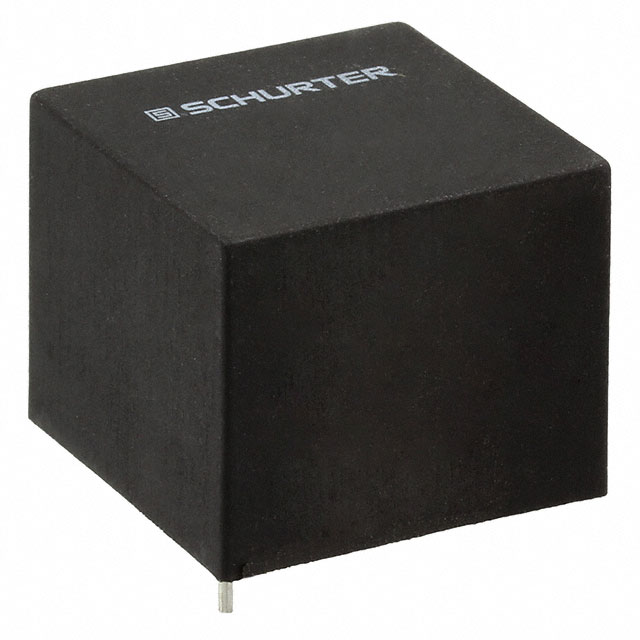

SCHURTER Inc. DFSG-25-0001	Through Hole	Radial Horizontal - Corner Terminals	2 A	22.5 mm	22.5 mm	0.886 in	0.886 "	100 °C	-25 °C	260 mOhm
SCHURTER Inc. DFSG-33-0001	Through Hole	Radial Horizontal - Corner Terminals	5 A	33 mm	33 mm	1.299 in	1.299 in	100 °C	-25 °C	70 mOhm
