302-10 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

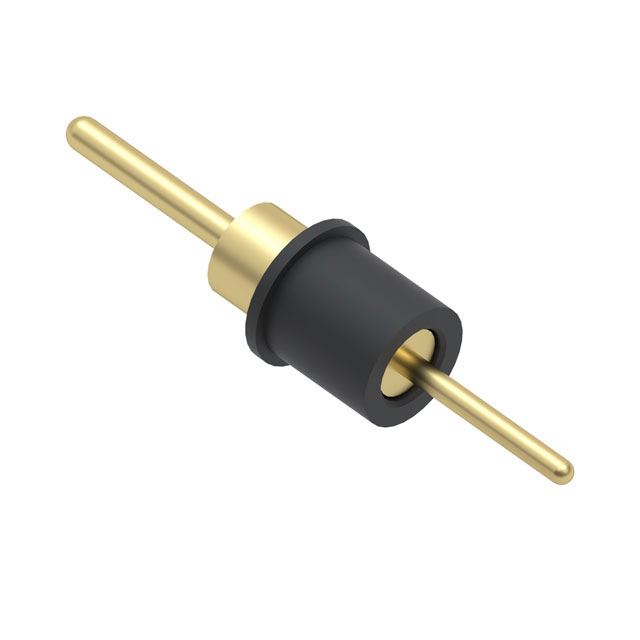

INSULATED TERMINAL PIN
| Part | Insulation Color | Material - Insulation | Contact Finish Thickness | Contact Finish Thickness | Flange Diameter [diameter] | Flange Diameter [diameter] | Mounting Type | Contact Material | Terminal Style | Terminal Type | Contact Finish | Length - Below Flange [x] | Length - Below Flange [x] | Insulation | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Length - Above Flange [x] | Length - Above Flange [x] | Length - Overall [x] | Length - Overall [x] | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Black | Polyamide (PA46) Nylon 4/6 | 0.25 Ám | 10 Áin | 0.11 in | 2.79 mm | Through Hole | Brass Alloy | Double End | PC Pin | Gold | 0.153 " | 3.89 mm | Insulated | 0.64 mm | 0.025 in | 0.166 in | 4.22 mm | 12.12 mm | 0.477 in | 0.46 mm | 0.018 in | Press-Fit |
