HSMF-C115 Series
Manufacturer: Broadcom Limited
Beta
⌘K

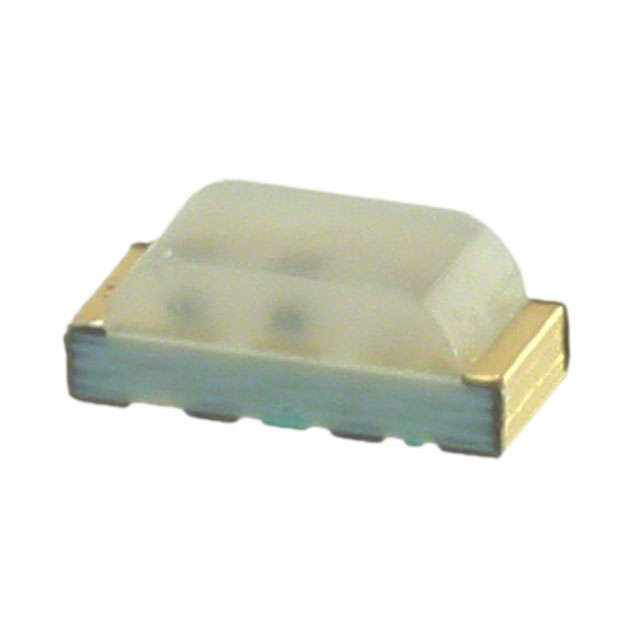

LED RGB DIFFUSED CHIP SMD R/A
| Part | Viewing Angle [custom] | Viewing Angle [custom] | Viewing Angle [custom] | Color | Current - Test | Lens Style | Package / Case | Size / Dimension [y] | Size / Dimension [x] | Configuration | Voltage - Forward (Vf) (Typ) | Millicandela Rating [custom] | Millicandela Rating [custom] | Millicandela Rating [custom] | Wavelength - Dominant | Mounting Type | Supplier Device Package | Lens Transparency | Height (Max) [z] | Lens Size [y] | Lens Size [x] | Lens Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Broadcom Limited | 120 ° | 125 ° | 125 ° | Blue Green Red | 20mA Blue 20mA Green 20mA Red | Rectangle with Domed Top | 4-SMD No Lead | 1 mm | 2.5 mm | Common Anode | 1.9 V 3.4 V 3.4 V | 60 mcd | 80 mcd | 170 mcd | 470 nm 525 nm 626 nm | Right Angle Surface Mount | Chip LED | Diffused | 1 mm | 1 mm | 2.1 mm | White |
