170540 Series
Manufacturer: Molex
Beta
⌘K

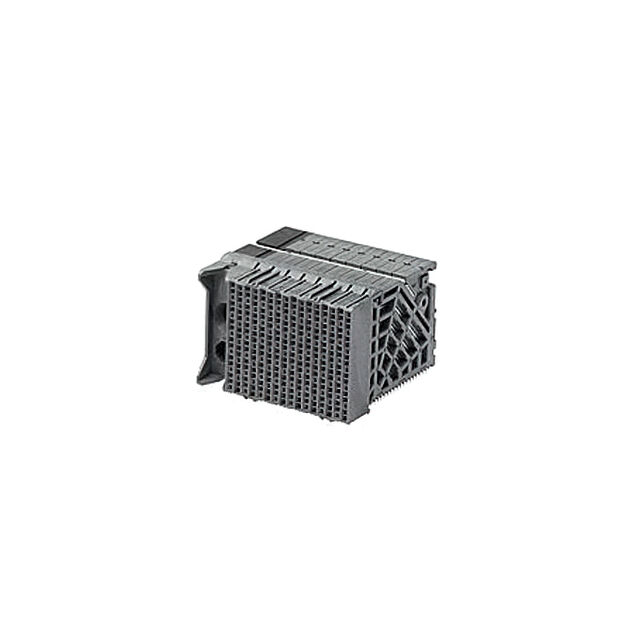

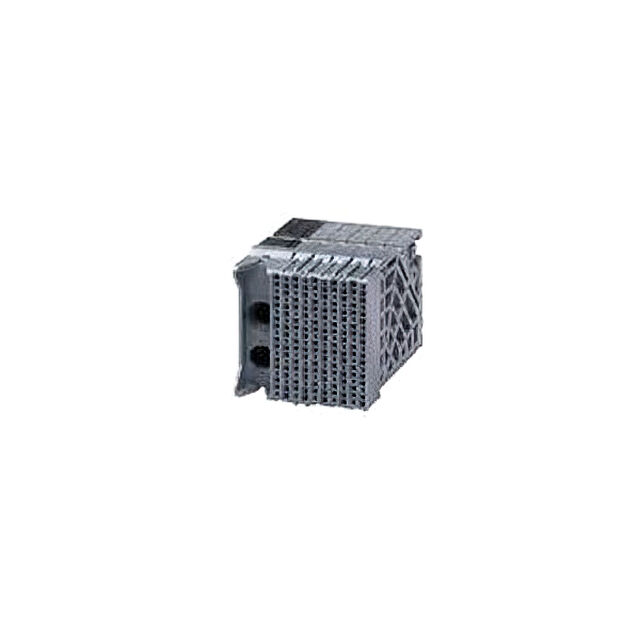

IMPACT 85 OHM PLUS 6 PAIR RIGHT-ANGLE DAUGHTERCARD, LEFT GUIDED, 10 COLUMNS, 180 CIRCUITS, PLATED THROUGH HOLE DIMENSION 0.39MM, LEAD FREE
| Part | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Contact Layout, Typical | Number of Positions Loaded | Color | Mounting Type | Contact Finish | Number of Rows [custom] | Number of Columns | Connector Type | Features | Termination | Connector Style | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Number of Positions [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 30 VDC | -55 C | 85 °C | UL94 V-0 | 60 Differential Pairs | All | Gray | Board Edge Right Angle Through Hole | Gold | 18 | 10 | Receptacle Female Sockets | Board Guide | Press-Fit | Impact Guide Left | 180 | 30 Áin | 0.76 Ám | |

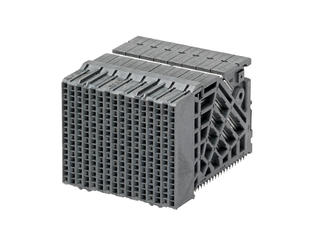

 Molex | 30 VDC | -55 C | 85 °C | UL94 V-0 | 96 Differential Pairs | All | Gray | Board Edge Right Angle Through Hole | Gold | 18 | 16 | Receptacle Female Sockets | Press-Fit | Impact | 30 Áin | 0.76 Ám | 288 | ||
 Molex | 30 VDC | -55 C | 85 °C | UL94 V-0 | 96 Differential Pairs | All | Gray | Board Edge Right Angle Through Hole | Gold | 18 | 16 | Receptacle Female Sockets | Board Guide | Press-Fit | Impact Guide Left | 30 Áin | 0.76 Ám | 288 | |
 Molex | 30 VDC | -55 C | 85 °C | UL94 V-0 | 60 Differential Pairs | All | Gray | Board Edge Right Angle Through Hole | Gold | 18 | 10 | Receptacle Female Sockets | Board Guide | Press-Fit | 180 | 30 Áin | 0.76 Ám | ||
Molex | 96 Differential Pairs | All | Gray | Board Edge Right Angle Through Hole | Gold | 18 | 16 | Receptacle Female Sockets | Board Guide | Press-Fit | 30 Áin | 0.76 Ám | 288 | ||||||
 Molex | 60 Differential Pairs | All | Gray | Board Edge Right Angle Through Hole | Gold | 18 | 10 | Receptacle Female Sockets | Press-Fit | Impact | 180 | 30 Áin | 0.76 Ám |
