24_N-75 Series
Manufacturer: Huber+Suhner, Inc.
Beta
⌘K

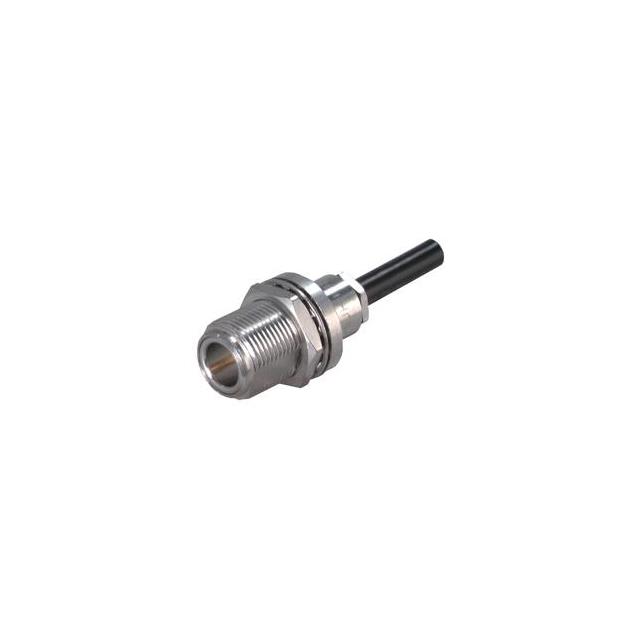

24_N-75-4-2/133_NE
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Mating Cycles | Dielectric Material | Body Material | Center Contact Plating | Voltage Rating | Fastening Type | Mounting Feature | Shield Termination | Number of Ports | Cable Group | Connector Type | Mounting Type | Contact Termination | Housing Color | Connector Style | Frequency - Max [Max] | Impedance | Center Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Huber+Suhner, Inc. | -65 ░C | 165 °C | White Bronze | 500 | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Brass | Gold | 1000 VDC | Threaded | Bulkhead - Front Side Nut | Clamp | 1 | RG-59 | Female Socket Jack | Panel Mount | Solder | Silver | N Type | 1.5 GHz | 75 Ohms | Beryllium Copper |
