R11008 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

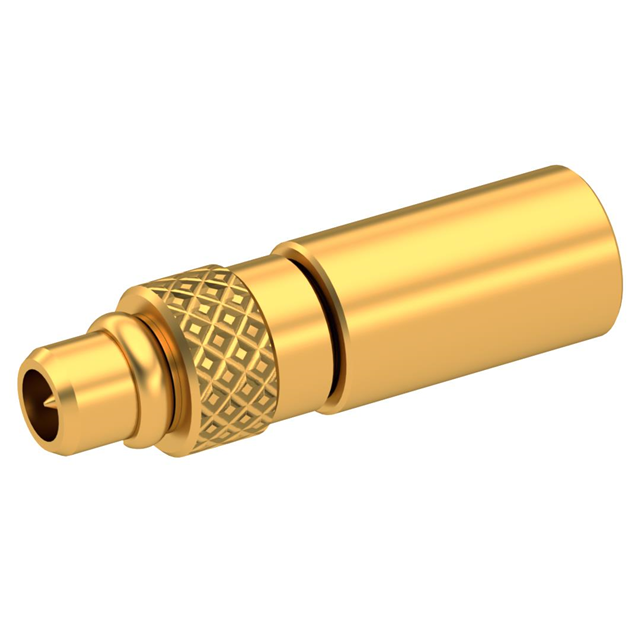

MMCX / STRAIGHT PLUG FULL CRIMP
| Part | Body Material | Voltage Rating | Center Contact Plating | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Mating Cycles | Body Finish | Housing Color | Connector Type | Connector Style | Cable Group | Number of Ports | Mounting Type | Shield Termination | Fastening Type | Frequency - Max [Max] | Contact Termination | Center Contact Material | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Brass | 335 V | Gold | 155 C | -55 C | Polytetrafluoroethylene (PTFE) | 500 | Gold | Gold | Plug Male Pin | MMCX | 316 RG-188 | 1 | Free Hanging (In-Line) | Crimp | Snap-On | 6000 MHz | Crimp | Brass | 50 Ohms |
