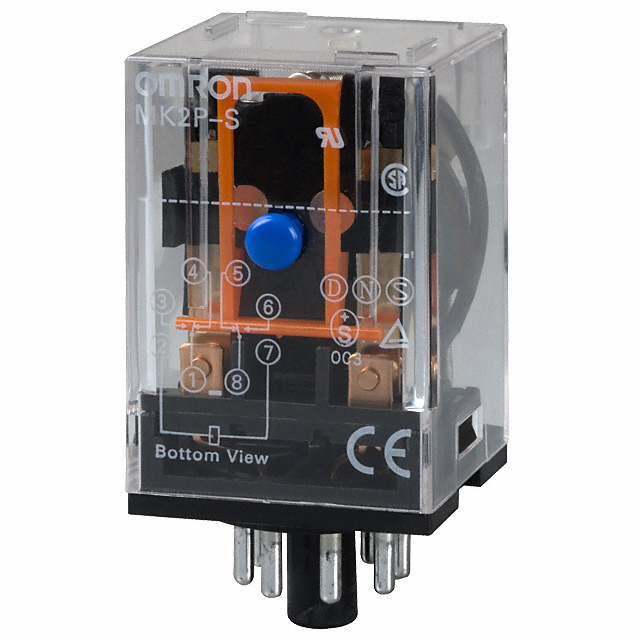

MK2P-S Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
POWER/SIGNAL RELAY, DPDT, MOMENTARY, 2700MW (COIL), 10A (CONTACT), 250VDC (CONTACT), SOCKET MOUNT
| Part | Load - Max Switching | Operating Temperature [Min] | Operating Temperature [Max] | Release Time | Coil Resistance | Must Release Voltage | Coil Voltage | Coil Type | Relay Type | Switching Voltage | Termination Style | Must Operate Voltage | Mounting Type | Contact Rating (Current) | Operate Time | Contact Form | Contact Material | Coil Current | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Omron Electronics Inc-EMC Div | 280 W 2500 VA | -10 °C | 40 °C | 20 ms | 6.74 kOhms | 72 VAC/DC | 240 VAC | Non Latching | General Purpose | 250 VAC 250 VDC | Plug In 8 Pin (Octal) | 192 VAC | Socketable | 10 A | 20 ms | DPDT (2 Form C) | Silver (Ag) | 9.2 mA | DEMKO SEV TUV UL |
Omron Electronics Inc-EMC Div | 280 W 2500 VA | -10 °C | 40 °C | 20 ms | 2.4 kOhms | 9 VDC | 60 VDC | Non Latching | General Purpose | 250 VAC 250 VDC | Plug In 8 Pin (Octal) | 48 VDC | Socketable | 10 A | 30 ms | DPDT (2 Form C) | Silver (Ag) | DEMKO SEV TUV UL | |
Omron Electronics Inc-EMC Div | 280 W 2500 VA | -10 °C | 40 °C | 20 ms | 66 VAC | 220 VAC/DC | Non Latching | General Purpose | 250 VAC 250 VDC | Plug In 8 Pin (Octal) | 176 VAC | Socketable | 10 A | 20 ms | DPDT (2 Form C) | Silver (Ag) | 11 mA | DEMKO SEV TUV UL | |
Omron Electronics Inc-EMC Div | 280 W 2500 VA | -10 °C | 40 °C | 20 ms | 1.24 kOhms | 33 VAC | 110 VAC/DC | Non Latching | General Purpose | 250 VAC 250 VDC | Plug In 8 Pin (Octal) | 88 VAC/DC | Socketable | 10 A | 20 ms | DPDT (2 Form C) | Silver (Ag) | 21 mA | DEMKO SEV TUV UL |
Omron Electronics Inc-EMC Div | 280 W 2500 VA | -10 °C | 40 °C | 20 ms | 7.3 kOhms | 16.5 VDC | 110 VDC | Non Latching | General Purpose | 250 VAC 250 VDC | Plug In 8 Pin (Octal) | 88 VDC | Socketable | 10 A | 30 ms | DPDT (2 Form C) | Silver (Ag) | 15.1 mA | DEMKO SEV TUV UL |
Omron Electronics Inc-EMC Div | 280 W 2500 VA | -10 °C | 40 °C | 20 ms | 3.7 kOhms | 30 VAC | 100 VAC | Non Latching | General Purpose | 250 VAC 250 VDC | Plug In 8 Pin (Octal) | 80 VAC | Socketable | 10 A | 20 ms | DPDT (2 Form C) | Silver (Ag) | 27 mA | DEMKO SEV TUV UL |
 Omron Electronics Inc-EMC Div | 280 W 2500 VA | -10 °C | 40 °C | 20 ms | 95 Ohms | 1.8 VDC | 12 VDC | Non Latching | General Purpose | 250 VAC 250 VDC | Plug In 8 Pin (Octal) | 9.6 VDC | Socketable | 10 A | 30 ms | DPDT (2 Form C) | Silver (Ag) | 126 mA | DEMKO SEV TUV UL |
Omron Electronics Inc-EMC Div | 280 W 2500 VA | -10 °C | 40 °C | 20 ms | 3.9 Ohms | 1.8 VAC | 6 VAC | Non Latching | General Purpose | 250 VAC 250 VDC | Plug In 8 Pin (Octal) | 4.8 VAC/DC | Socketable | 10 A | 20 ms | DPDT (2 Form C) | Silver (Ag) | 360 mA | DEMKO SEV TUV UL |
