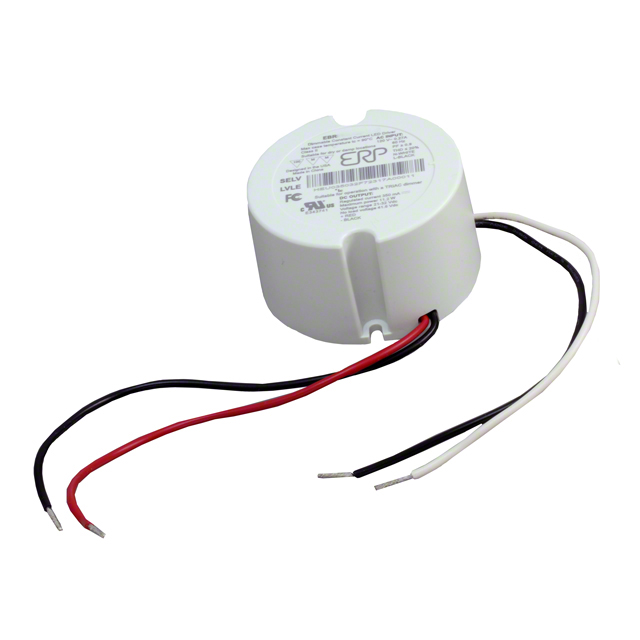

EBR010 Series

Catalog

LED DRIVER CC AC/DC 30-42V 250MA

Part	Mounting Type	Weight	Weight	Features	Voltage - Output [Min]	Voltage - Output [Max]	Approval Agency	Topology	Size / Dimension [diameter]	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [z]	Type	Ratings	Efficiency	Number of Outputs	Termination Style	Dimming	Voltage - Input (Min) [Min]	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]
ERP Power, LLC EBR010E-0250-42-CE	Chassis Mount	170.5 g	0.376 lb	OCP OTP SCP	30 V	42 V	CE cURus	AC DC Converter	2.28 "	1.25 in	57.9 mm	31.8 mm	Constant Current	IP20	87 %	1	Wire Leads	ELV TRIAC	220 VAC	8 W	-30 ░C	90 °C	240 VAC	250 mA
ERP Power, LLC EBR010U-0440-24	Chassis Mount	170.5 g	0.376 lb	OCP OTP SCP	16 V	24 V	CE cURus	AC DC Converter	2.28 "	1.25 in	57.9 mm	31.8 mm	Constant Current	IP20	87 %	1	Wire Leads	ELV TRIAC	90 VAC	11 W	-30 ░C	90 °C	132 VAC	440 mA
ERP Power, LLC EBR010U-0250-42	Chassis Mount	170.5 g	0.376 lb	OCP OTP SCP	30 V	42 V	CE cURus	AC DC Converter	2.28 "	1.25 in	57.9 mm	31.8 mm	Constant Current	IP20	87 %	1	Wire Leads	ELV TRIAC	90 VAC	11 W	-30 ░C	90 °C	132 VAC	250 mA
ERP Power, LLC EBR010U-0200-42	Chassis Mount	170.5 g	0.376 lb	OCP OTP SCP	30 V	42 V	CE cURus	AC DC Converter	2.28 "	1.25 in	57.9 mm	31.8 mm	Constant Current	IP20	87 %	1	Wire Leads	ELV TRIAC	90 VAC	8 W	-30 ░C	90 °C	132 VAC	200 mA
