SRCN6A21 Series

Catalog

STANDARD CIRCULAR CONNECTOR CIRCULAR CONNECTOR

Part	Contact Material	Insert Material	Backshell Material, Plating	Applications	Cable Opening	Cable Opening	Features	Operating Temperature [Max]	Operating Temperature [Min]	Shell Size - Insert	Contact Finish - Mating	Shell Finish	Number of Positions	Current Rating (Amps)	Mounting Type	Fastening Type	Color	Voltage Rating	Orientation	Material Flammability Rating	Shell Material	Primary Material	Connector Type	Current Rating (Amps)	Shell Size - Insert [Min]	Shell Size - Insert [Max]

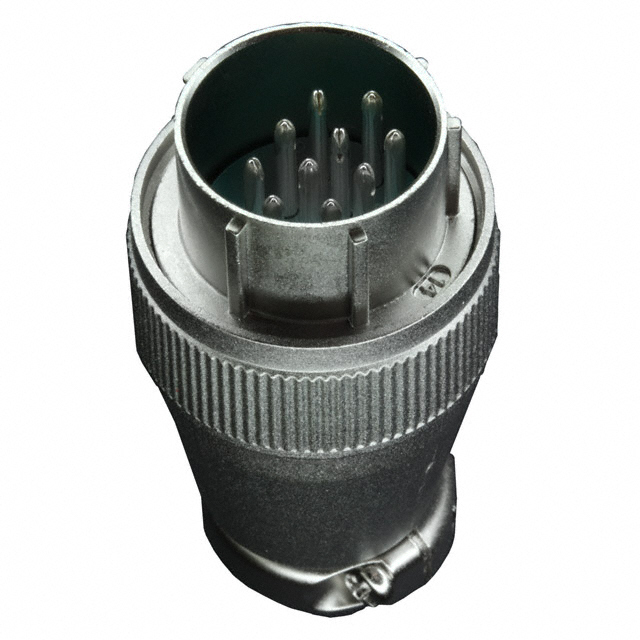

JAE Electronics SRCN6A21-10P	Copper Alloy	Plastic	Aluminum Alloy Nickel	Communication Systems Measurement Telecommunications Test Equipment	0.551 "	14 mm	Backshell Cable Clamp Coupling Nut	85 °C	-25 °C	21-10	Silver	Nickel	10	10 A	Free Hanging (In-Line)	Threaded	Silver	250 VAC 350 VDC	N (Normal)	UL94 V-0	Aluminum Alloy	Metal	Plug Male Pins
JAE Electronics SRCN6A21-16P-R

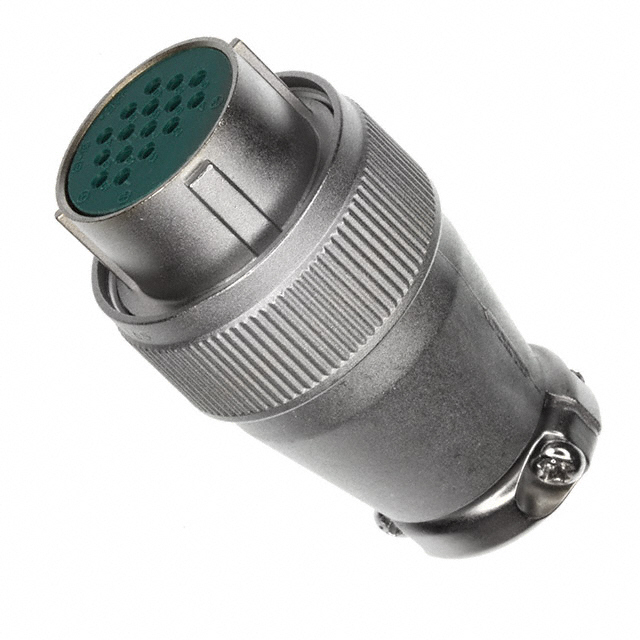

JAE Electronics SRCN6A21-16S	Copper Alloy	Plastic	Aluminum Alloy Nickel	Communication Systems Measurement Telecommunications Test Equipment	0.551 "	14 mm	Backshell Cable Clamp Coupling Nut	85 °C	-25 °C	21-16	Silver	Nickel	16	5 A	Free Hanging (In-Line)	Threaded	Silver	250 VAC 350 VDC	N (Normal)	UL94 V-0	Aluminum Alloy	Metal	Plug Female Sockets

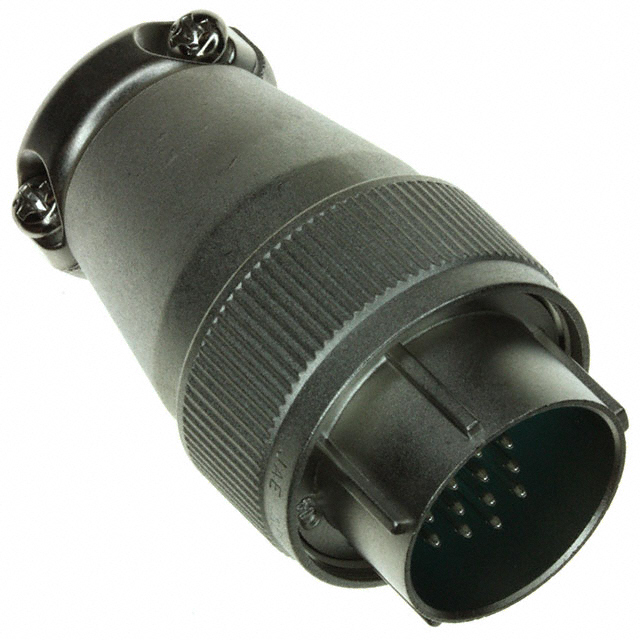

JAE Electronics SRCN6A21-16P	Copper Alloy	Plastic	Aluminum Alloy Nickel	Communication Systems Measurement Telecommunications Test Equipment	0.551 "	14 mm	Backshell Cable Clamp Coupling Nut	85 °C	-25 °C	21-16	Silver	Nickel	16	5 A	Free Hanging (In-Line)	Threaded	Silver	250 VAC 350 VDC	N (Normal)	UL94 V-0	Aluminum Alloy	Metal	Plug Male Pins

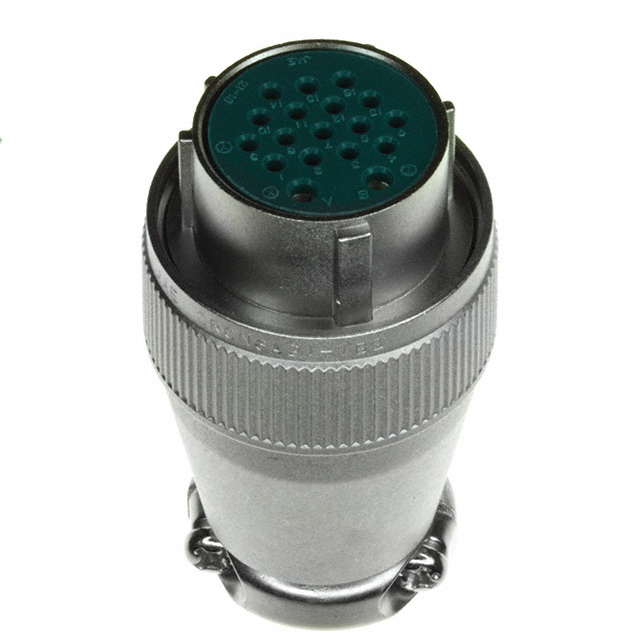

JAE Electronics SRCN6A21-18S	Copper Alloy	Plastic	Aluminum Alloy Nickel	Communication Systems Measurement Telecommunications Test Equipment	0.551 "	14 mm	Backshell Cable Clamp Coupling Nut	85 °C	-25 °C		Silver	Nickel	18		Free Hanging (In-Line)	Threaded	Silver	250 VAC 350 VDC	N (Normal)	UL94 V-0	Aluminum Alloy	Metal	Plug Female Sockets	10A 5A	21	18

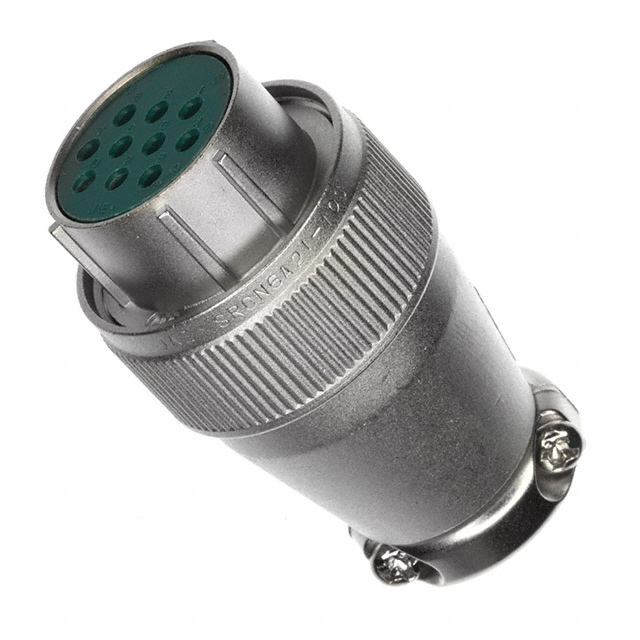

JAE Electronics SRCN6A21-10S	Copper Alloy	Plastic	Aluminum Alloy Nickel	Communication Systems Measurement Telecommunications Test Equipment	0.551 "	14 mm	Backshell Cable Clamp Coupling Nut	85 °C	-25 °C	21-10	Silver	Nickel	10	10 A	Free Hanging (In-Line)	Threaded	Silver	250 VAC 350 VDC	N (Normal)	UL94 V-0	Aluminum Alloy	Metal	Plug Female Sockets

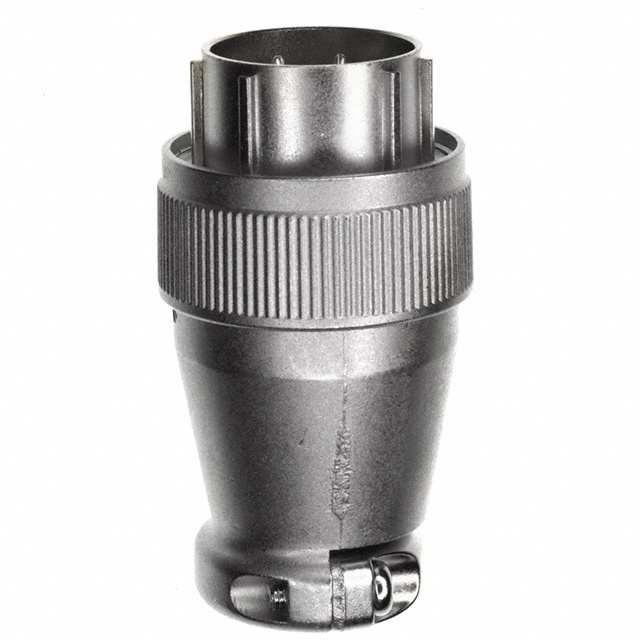

JAE Electronics SRCN6A21-18P	Copper Alloy	Plastic	Aluminum Alloy Nickel	Communication Systems Measurement Telecommunications Test Equipment	0.551 "	14 mm	Backshell Cable Clamp Coupling Nut	85 °C	-25 °C		Silver	Nickel	18		Free Hanging (In-Line)	Threaded	Silver	250 VAC 350 VDC	N (Normal)	UL94 V-0	Aluminum Alloy	Metal	Plug Male Pins	10A 5A	21	18
