9451WB Series
Manufacturer: Belden Inc.
Beta
⌘K

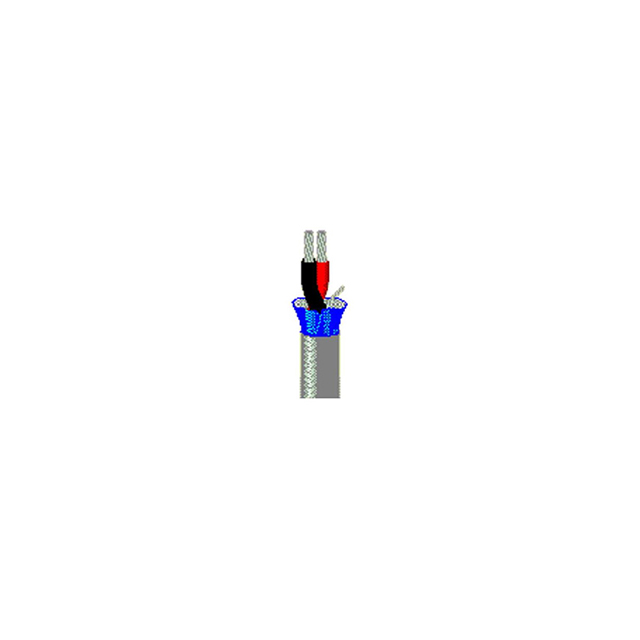

CABLE 2COND 22AWG BLACK SHLD
| Part | Shield Coverage | Shield Material | Jacket (Insulation) Material | Voltage | Jacket Color | Conductor Strand [custom] | Conductor Strand [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Shield Type | Cable Type | Conductor Material | Wire Gauge | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Insulation | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length | Length | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum Polyester | Polyethylene (PE) | 300 VDC | Black | 30 AWG | 7 | -20 ░C | 60 °C | Foil | Multi-Conductor | Copper Tinned | 22 AWG | 0.02 " | 0.508 mm | Polypropylene (PP) | 2 | 4.19 mm | 0.165 in | 304.8 m | 1000 ft | Audio |
