OSTTJ05 Series

Catalog

TERM BLOCK PLUG 5POS STR 5MM

Part	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Torque - Screw	Torque - Screw	Wire Strip Length [Min]	Wire Strip Length [Max]	Material Flammability Rating	Contact Material	Housing Material	Type	Mounting Type	Positions Per Level	Pitch	Pitch	Voltage - UL	Operating Temperature [Max]	Operating Temperature [Min]	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Number of Positions	Color	Termination Style	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Number of Levels	Voltage - IEC	Contact Mating Finish

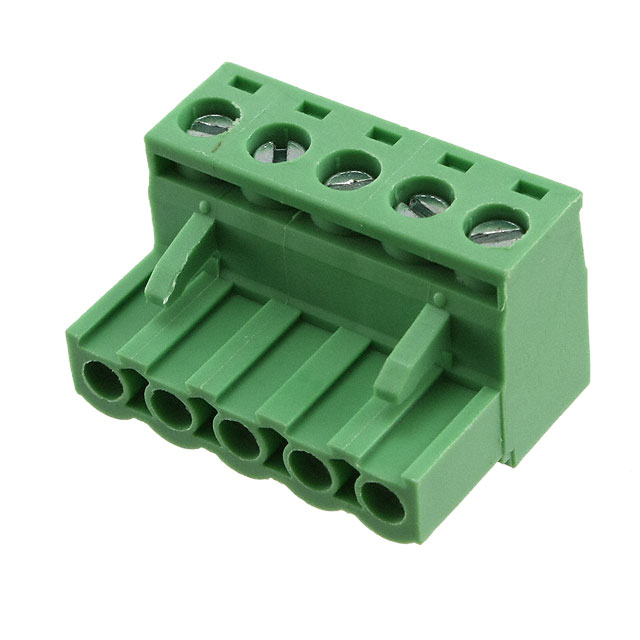

On Shore Technology Inc. OSTTJ057150	0.34 mm˛	2.5 mm˛	0.56 Nm	5 Lb-In	7 mm	8 mm	UL94 V-0	Brass	Brass	Plug Female Sockets	Free Hanging (In-Line)	5	0.197 in	5 mm	300 V	115 °C	-40 C	0.34 mm²	2.5 mm²	5	Green	Screw	30 AWG	12 AWG	1

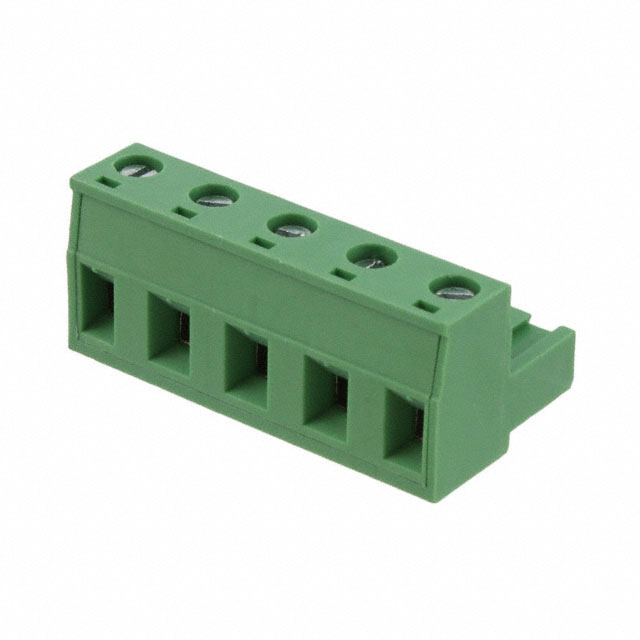

On Shore Technology Inc. OSTTJ050150			0.56 Nm	5 Lb-In	7 mm	8 mm	UL94 V-0	Brass	Brass	Plug Female Sockets	Free Hanging (In-Line)	5	0.3 in	7.62 mm	300 V	105 ░C	-30 ░C			5		Screw	24 AWG	12 AWG	1
On Shore Technology Inc. OSTTJ0511530			0.28 Nm	2.5 Lb-In	6 mm	7 mm		Brass	Brass	Plug Female Sockets	Free Hanging (In-Line)	5	0.138 "	3.5 mm	300 V	105 ░C	-30 ░C			5		Screw	26 AWG	16 AWG	1
On Shore Technology Inc. OSTTJ055183			0.56 Nm	5 Lb-In	7 mm	8 mm	UL94 V-0	Brass	Brass	Plug Female Sockets	Free Hanging (In-Line)	5	0.2 in	5.08 mm	300 V	105 ░C	-30 ░C	0.34 mm²	2.5 mm²	5	Gray	Screw	24 AWG	12 AWG	1	300 V	Tin
On Shore Technology Inc. OSTTJ057152	0.34 mm˛	2.5 mm˛	0.56 Nm	5 Lb-In	7 mm	8 mm	UL94 V-0	Brass	Brass	Plug Female Sockets	Free Hanging (In-Line)	5	0.197 in	5 mm	300 V	105 ░C	-30 ░C	0.34 mm²	2.5 mm²	5	Green	Screw	24 AWG	12 AWG	1
