LB26WKW01 Series

Catalog

STANDARD SIZE PANEL SEAL PUSHBUTTON

Part	Mechanical Life	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Panel Cutout Dimensions [diameter]	Illumination Voltage (Nominal)	Type	Current Rating (Amps)	Actuator Marking	Termination Style	Voltage Rating - DC	Ingress Protection	Mounting Type	Circuit	Color - Actuator/Cap	Switch Function	Actuator Type	Voltage Rating - AC	Illumination Type, Color

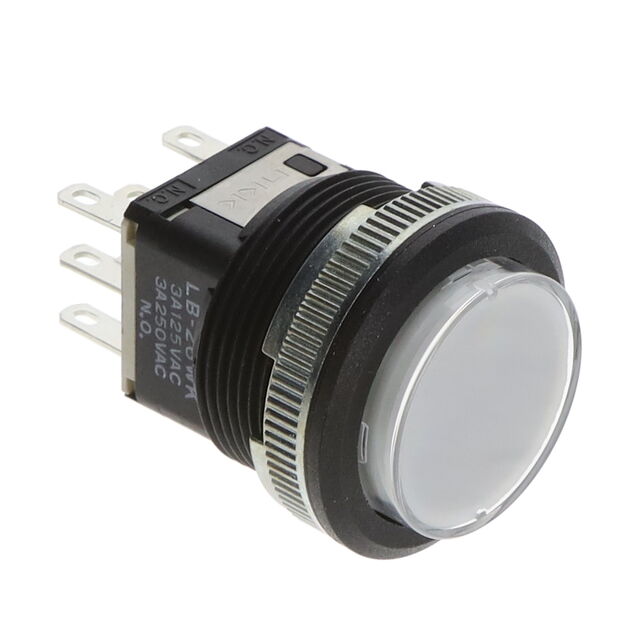

NKK Switches LB26WKW01-01-JB	200000 Cycles	100000 Cycles	50 °C	-25 °C	22 mm	110 VAC	Illuminated Standard	3 A	No Marking	Solder Quick Connect - 0.110" (2.8mm)	30 V	IP65 - Dust Tight Water Resistant	Panel Mount Front	DPDT	Clear	On-On	Button Round	125 V	Neon White
NKK Switches LB26WKW01-5C24-JC	200000 Cycles	100000 Cycles	50 °C	-25 °C	22 mm	24 V	Illuminated Standard	3 A	No Marking	Solder Quick Connect - 0.110" (2.8mm)	30 V	IP65 - Dust Tight Water Resistant	Panel Mount Front	DPDT	Clear	On-On	Button Round	125 V	LED Red
NKK Switches LB26WKW01-5C-JC	200000 Cycles	100000 Cycles	50 °C	-25 °C	22 mm	1.9 VDC	Illuminated Standard	3 A	No Marking	Solder Quick Connect - 0.110" (2.8mm)	30 V	IP65 - Dust Tight Water Resistant	Panel Mount Front	DPDT	Clear	On-On	Button Round	125 V	LED Red
NKK Switches LB26WKW01-5C05-JC	200000 Cycles	100000 Cycles	50 °C	-25 °C	22 mm	5 VDC	Illuminated Standard	3 A	No Marking	Solder Quick Connect - 0.110" (2.8mm)	30 V	IP65 - Dust Tight Water Resistant	Panel Mount Front	DPDT	Clear	On-On	Button Round	125 V	LED Red

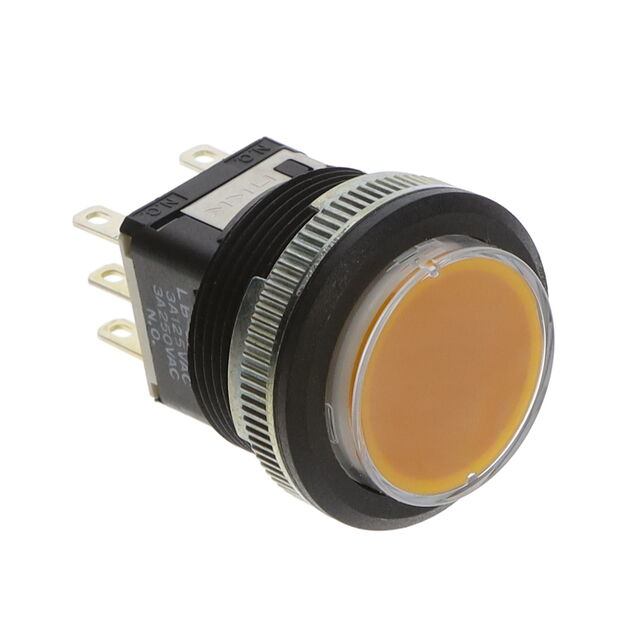

NKK Switches LB26WKW01-5D-JD	200000 Cycles	100000 Cycles	50 °C	-25 °C	22 mm	2 VDC	Illuminated Standard	3 A	No Marking	Solder Quick Connect - 0.110" (2.8mm)	30 V	IP65 - Dust Tight Water Resistant	Panel Mount Front	DPDT	Clear	On-On	Button Round	125 V	Amber LED
NKK Switches LB26WKW01-EJ	200000 Cycles	100000 Cycles	70 °C	-25 °C	22 mm		Standard	3 A	No Marking	Solder Quick Connect - 0.110" (2.8mm)	30 V	IP65 - Dust Tight Water Resistant	Panel Mount Front	DPDT	Yellow	On-On	Button Round	125 V

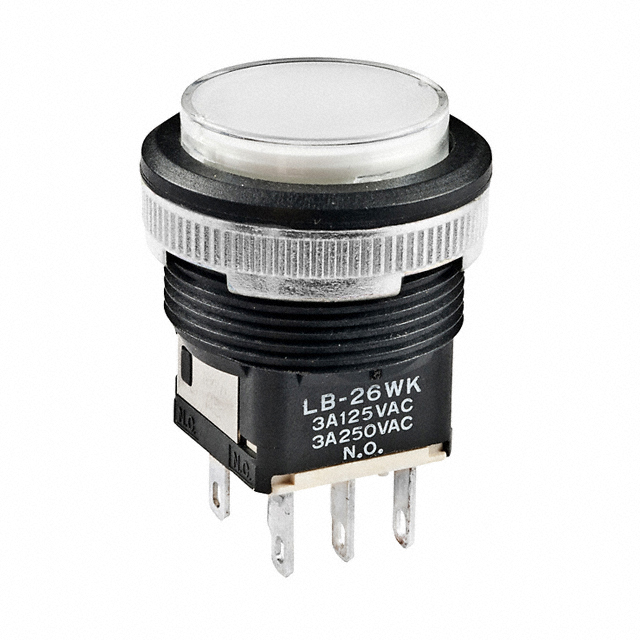

NKK Switches LB26WKW01-6G-JB	200000 Cycles	100000 Cycles	50 °C	-25 °C	22 mm	3.6 VDC	Illuminated Standard	3 A	No Marking	Solder Quick Connect - 0.110" (2.8mm)	30 V	IP65 - Dust Tight Water Resistant	Panel Mount Front	DPDT	Clear	On-On	Button Round	125 V	Blue LED
NKK Switches LB26WKW01-JF	200000 Cycles	100000 Cycles	70 °C	-25 °C	22 mm		Standard	3 A	No Marking	Solder Quick Connect - 0.110" (2.8mm)	30 V	IP65 - Dust Tight Water Resistant	Panel Mount Front	DPDT	Clear	On-On	Button Round	125 V

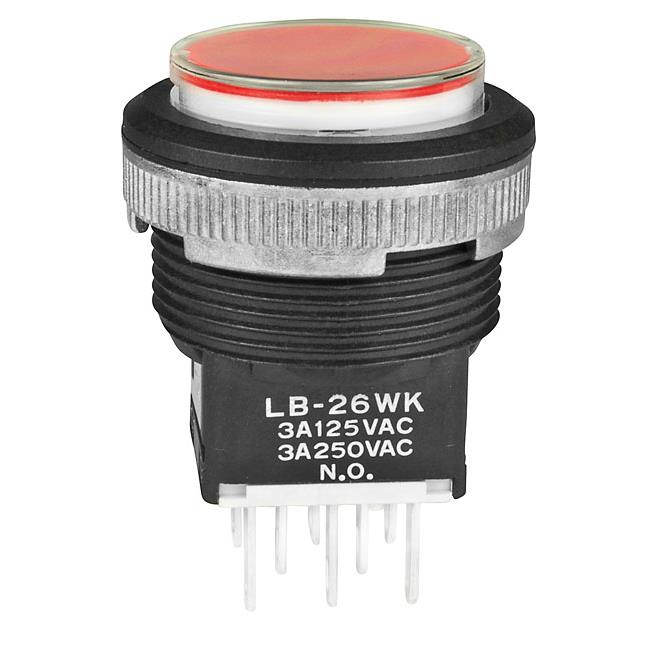

NKK Switches LB26WKW01-01-JC	200000 Cycles	100000 Cycles	50 °C	-25 °C	22 mm	110 VAC	Illuminated Standard	3 A	No Marking	Solder Quick Connect - 0.110" (2.8mm)	30 V	IP65 - Dust Tight Water Resistant	Panel Mount Front	DPDT	Clear	On-On	Button Round	125 V	Neon Red
NKK Switches LB26WKW01-5F-JB	200000 Cycles	100000 Cycles	50 °C	-25 °C	22 mm	2.1 VDC	Illuminated Standard	3 A	No Marking	Solder Quick Connect - 0.110" (2.8mm)	30 V	IP65 - Dust Tight Water Resistant	Panel Mount Front	DPDT	Clear	On-On	Button Round	125 V	Green LED
