623-015 Series
Manufacturer: EDAC Inc.
Beta
⌘K

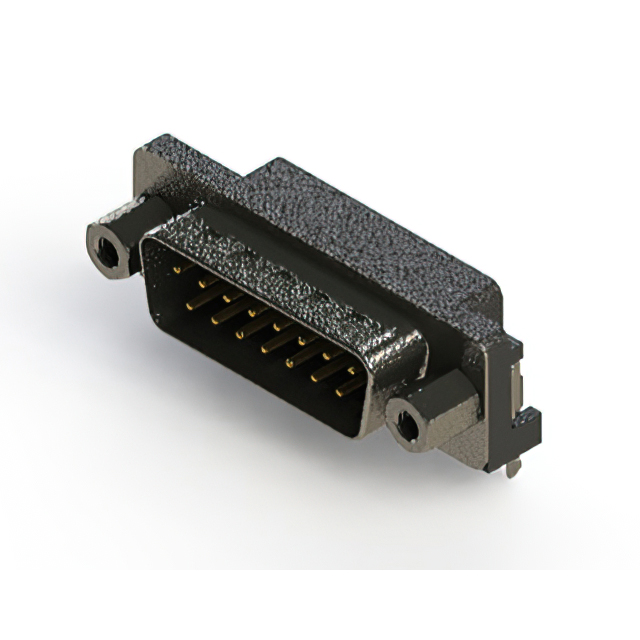

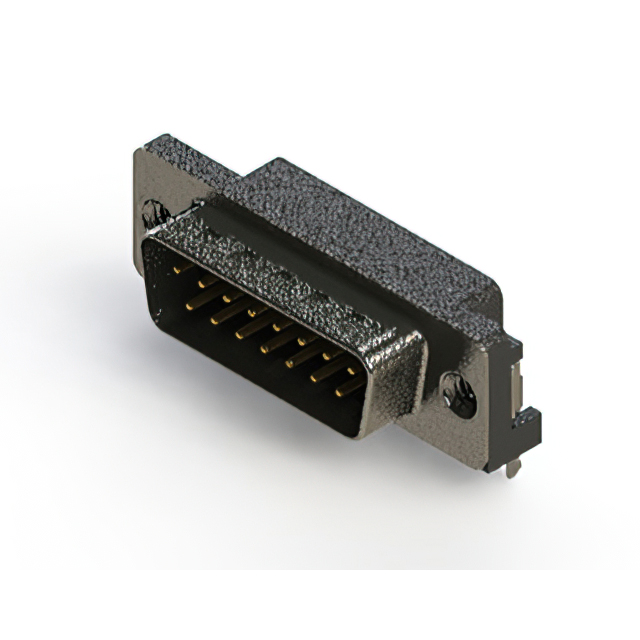

623 SERIES RIGHT ANGLE D-SUB PLU
| Part | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Dielectric Material | Material Flammability Rating | Backset Spacing | Backset Spacing | Flange Feature | Contact Finish | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Connector Style | Number of Rows [custom] | Shell Size, Connector Layout | Shell Material, Finish | Mounting Type | Features | Connector Type | Termination | Current Rating (Amps) | Contact Type | Flange Feature | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Black | Polyester Thermoplastic | UL94 V-0 | 0.197 in | 5 mm | Housing/Shell (Unthreaded) | Gold | 15 | 30 Áin | 0.76 Ám | D-Sub | 2 | 2 | Nickel Plated Steel | Board Edge Right Angle Through Hole | Board Lock Grounding Indents Mounting Brackets Shielded | Plug Male Pins | Solder | 3 A | Signal | ||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Black | Polyester Thermoplastic | UL94 V-0 | 0.197 in | 5 mm | Housing/Shell | Gold | 15 | D-Sub | 2 | 2 | Nickel Plated Steel | Board Edge Right Angle Through Hole | Board Lock Grounding Indents Mounting Brackets Shielded | Plug Male Pins | Solder | 3 A | Signal | 4-40 | Flash | ||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Black | Polyester Thermoplastic | UL94 V-0 | 0.197 in | 5 mm | Housing/Shell (M3) | Gold | 15 | 30 Áin | 0.76 Ám | D-Sub | 2 | 2 | Nickel Plated Steel | Board Edge Right Angle Through Hole | Board Lock Grounding Indents Mounting Brackets Shielded | Plug Male Pins | Solder | 3 A | Signal | ||
 EDAC Inc. | Copper Alloy | -55 C | 85 °C | Black | Polyester Thermoplastic | UL94 V-0 | 0.197 in | 5 mm | Housing/Shell (M3) | Gold | 15 | 30 Áin | 0.76 Ám | D-Sub | 2 | 2 | Nickel Plated Steel | Board Edge Right Angle Through Hole | Board Lock Grounding Indents Mounting Brackets Shielded | Plug Male Pins | Solder | 3 A | Signal | ||
 EDAC Inc. | Copper Alloy | -55 C | 85 °C | Black | Polyester Thermoplastic | UL94 V-0 | 0.197 in | 5 mm | Housing/Shell | Gold | 15 | D-Sub | 2 | 2 | Nickel Plated Steel | Board Edge Right Angle Through Hole | Board Lock Grounding Indents Mounting Brackets Shielded | Plug Male Pins | Solder | 3 A | Signal | 4-40 | Flash | ||
 EDAC Inc. | Copper Alloy | -55 C | 85 °C | Black | Polyester Thermoplastic | UL94 V-0 | 0.197 in | 5 mm | 4-40 Mating Side Female Screwlock | Gold | 15 | 30 Áin | 0.76 Ám | D-Sub | 2 | 2 | Nickel Plated Steel | Board Edge Right Angle Through Hole | Board Lock Grounding Indents Mounting Brackets Shielded | Plug Male Pins | Solder | 3 A | Signal | ||
 EDAC Inc. | Copper Alloy | -55 C | 85 °C | Black | Polyester Thermoplastic | UL94 V-0 | 0.197 in | 5 mm | Housing/Shell (Unthreaded) | Gold | 15 | 15 µin | 0.38 µm | D-Sub | 2 | 2 | Nickel Plated Steel | Board Edge Right Angle Through Hole | Board Lock Grounding Indents Mounting Brackets Shielded | Plug Male Pins | Solder | 3 A | Signal | ||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Black | Polyester Thermoplastic | UL94 V-0 | 0.197 in | 5 mm | Housing/Shell | Gold | 15 | 15 µin | 0.38 µm | D-Sub | 2 | 2 | Nickel Plated Steel | Board Edge Right Angle Through Hole | Board Lock Grounding Indents Mounting Brackets Shielded | Plug Male Pins | Solder | 3 A | Signal | 4-40 | |
 EDAC Inc. | Copper Alloy | -55 C | 85 °C | Black | Polyester Thermoplastic | UL94 V-0 | 0.197 in | 5 mm | 4-40 Mating Side Female Screwlock | Gold | 15 | D-Sub | 2 | 2 | Nickel Plated Steel | Board Edge Right Angle Through Hole | Board Lock Grounding Indents Mounting Brackets Shielded | Plug Male Pins | Solder | 3 A | Signal | Flash | |||
 EDAC Inc. | Copper Alloy | -55 C | 85 °C | Black | Polyester Thermoplastic | UL94 V-0 | 0.197 in | 5 mm | Housing/Shell | Gold | 15 | 15 µin | 0.38 µm | D-Sub | 2 | 2 | Nickel Plated Steel | Board Edge Right Angle Through Hole | Board Lock Grounding Indents Mounting Brackets Shielded | Plug Male Pins | Solder | 3 A | Signal | 4-40 |
