TEM96A Series

Manufacturer: Shiu Li Technology Co., Ltd.

Catalog

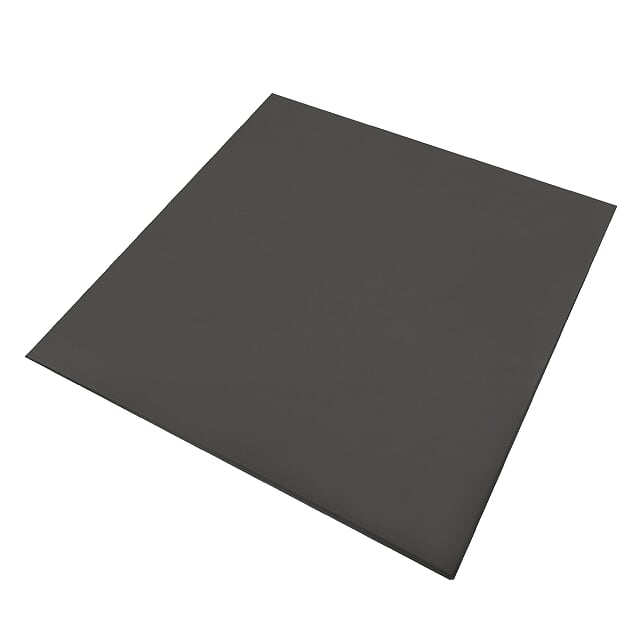

RF ABSORB SHEET 320MMX12.598"

Part	Shelf Life	Shelf Life Start	Shape	Thickness - Overall	Thickness - Overall	Length	Length	Width [x]	Width [x]	Operating Temperature [Max]	Operating Temperature [Min]	Adhesive	Type	Material	Length [x]	Length [x]	Width [y]	Width [y]	Thickness - Overall [z]	Thickness - Overall [z]	Thickness - Overall [custom]	Thickness - Overall [custom]
Shiu Li Technology Co., Ltd. TEM96A-320-320-5.0	120 Months	Date of Shipment	Square	0.197 in	5 mm	12.598 in	320 mm	320 mm	12.598 in	180 °C	-60 °C	Conductive	Absorbing Sheet	Polymer Resin
Shiu Li Technology Co., Ltd. TEM96A-160-160-2.0	120 Months	Date of Shipment	Square	0.079 in	2 mm					180 °C	-60 °C	Conductive	Absorbing Sheet	Polymer Resin	6.299 in	160 mm	160 mm	6.299 in
Shiu Li Technology Co., Ltd. TEM96A-320-320-4.0	120 Months	Date of Shipment	Square			12.598 in	320 mm	320 mm	12.598 in	180 °C	-60 °C	Conductive	Absorbing Sheet	Polymer Resin					4 mm	0.157 in
Shiu Li Technology Co., Ltd. TEM96A-320-320-0.5	120 Months	Date of Shipment	Square			12.598 in	320 mm	320 mm	12.598 in	180 °C	-60 °C	Conductive	Absorbing Sheet	Polymer Resin							0.02 "	0.5 mm
Shiu Li Technology Co., Ltd. TEM96A-160-160-1.0	120 Months	Date of Shipment	Square							180 °C	-60 °C	Conductive	Absorbing Sheet	Polymer Resin	6.299 in	160 mm	160 mm	6.299 in			0.039 in	1 mm
Shiu Li Technology Co., Ltd. TEM96A-320-320-1.5	120 Months	Date of Shipment	Square	0.059 in	1.5 mm	12.598 in	320 mm	320 mm	12.598 in	180 °C	-60 °C	Conductive	Absorbing Sheet	Polymer Resin
Shiu Li Technology Co., Ltd. TEM96A-160-160-2.5	120 Months	Date of Shipment	Square	0.098 in	2.5 mm					180 °C	-60 °C	Conductive	Absorbing Sheet	Polymer Resin	6.299 in	160 mm	160 mm	6.299 in
Shiu Li Technology Co., Ltd. TEM96A-160-160-0.5	120 Months	Date of Shipment	Square							180 °C	-60 °C	Conductive	Absorbing Sheet	Polymer Resin	6.299 in	160 mm	160 mm	6.299 in			0.02 "	0.5 mm
Shiu Li Technology Co., Ltd. TEM96A-160-160-3.0	120 Months	Date of Shipment	Square	0.118 in	3 mm					180 °C	-60 °C	Conductive	Absorbing Sheet	Polymer Resin	6.299 in	160 mm	160 mm	6.299 in
Shiu Li Technology Co., Ltd. TEM96A-320-320-4.5	120 Months	Date of Shipment	Square	0.177 in	4.5 mm	12.598 in	320 mm	320 mm	12.598 in	180 °C	-60 °C	Conductive	Absorbing Sheet	Polymer Resin
