160457 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

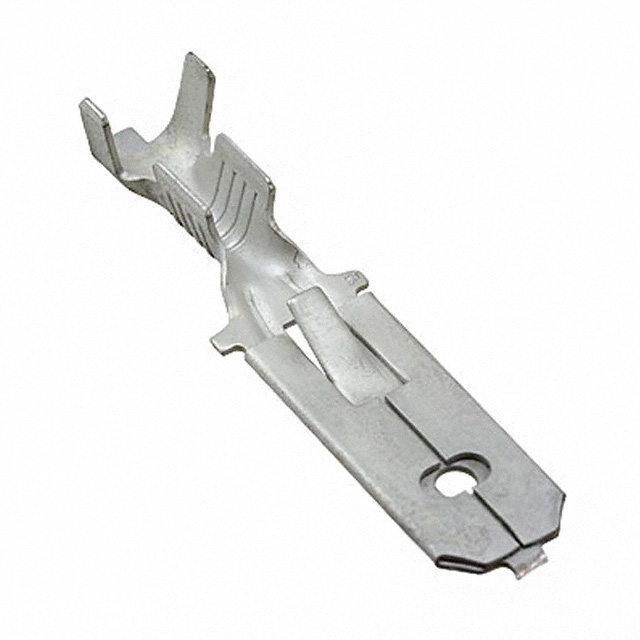

CONN QC TAB 14-18AWG 0.250 CRIMP
| Part | Gender | Mounting Type | Contact Finish | Length - Overall [x] | Length - Overall [x] | Tab Thickness | Tab Thickness | Termination | Tab Width | Tab Width | Terminal Type | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation | Contact Material | Tab Length | Tab Length | Wire Gauge [Min] | Wire Gauge [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Male | Free Hanging (In-Line) | Tin | 1.102 in | 27.99 mm | 0.032 in | 0.81 mm | Crimp | 6.35 mm | 0.25 in | Standard | 3 mm | 0.157 in | 0.118 in | 3.99 mm | Non-Insulated | Phosphor Bronze | 0.62 in | 15.75 mm | 14 AWG | 18 AWG |
