Junior Power Timer Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

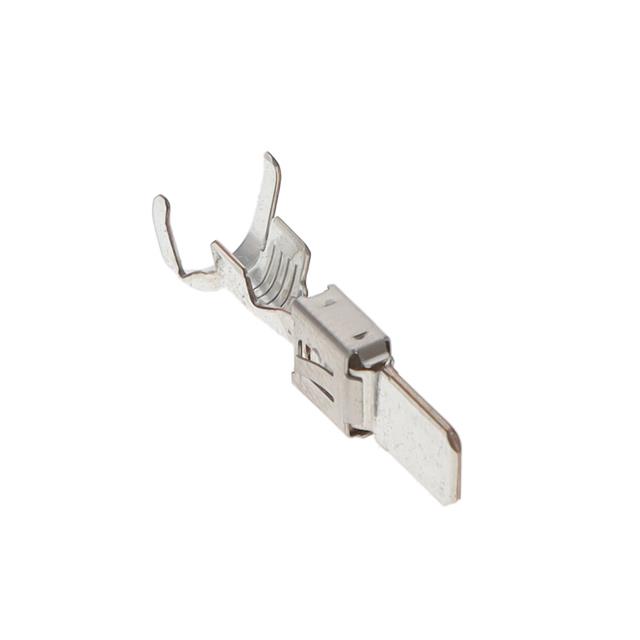

TAB A 5.8X0.8 CONTACT CF SWS SN
| Part | Wire Gauge [Min] | Wire Gauge [Max] | Contact Finish | Pin or Socket | Contact Termination | Fastening Type | Insulation Material | Number of Rows [custom] | Mounting Type | Row Spacing | Row Spacing | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Color | Pitch | Pitch | Contact Type | Connector Type | Note | Type | Contact Finish Thickness | Contact Finish Thickness | Row Spacing [x] | Row Spacing [x] | Applications | Contact Material | Features | Pitch - Mating | Pitch - Mating | Style | Number of Positions Loaded | Contact Shape | Contact Finish - Post | Insulation Color | Termination | Row Spacing - Mating | Row Spacing - Mating | Shrouding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 11 AWG | 13 AWG | Tin | Tab | Crimp | ||||||||||||||||||||||||||||||||||
 TE Connectivity AMP Connectors | Crimp | Latch Lock | Polybutylene Terephthalate (PBT) Glass Filled | 3 | Free Hanging (In-Line) | 0.217 in | 5.5 mm | -30 ░C | 100 °C | 15 | Yellow | 0.197 in | 5 mm | Female Socket | Receptacle | ||||||||||||||||||||||||
 TE Connectivity AMP Connectors | Crimp | Polybutylene Terephthalate (PBT) | 2 | Free Hanging (In-Line) | 0.22 in | 5.6 mm | 22 | Natural | 0.197 in | 5 mm | Female Socket | Receptacle | Contacts Not Included | ||||||||||||||||||||||||||
 TE Connectivity AMP Connectors | Crimp | Latch Holder | Polybutylene Terephthalate (PBT) Glass Filled | 3 | Free Hanging (In-Line) | 0.217 in | 5.51 mm | -30 ░C | 100 °C | 6 | Red | 0.197 in | 5 mm | Female Socket | Housing for Female Insert | ||||||||||||||||||||||||
TE Connectivity AMP Connectors | 12 AWG | 14 AWG | Tin | Blade | Crimp | Stamped | 1 Ám | 39.4 Áin | |||||||||||||||||||||||||||||||
TE Connectivity AMP Connectors | |||||||||||||||||||||||||||||||||||||||
 TE Connectivity AMP Connectors | Crimp | Polybutylene Terephthalate (PBT) | 2 | Free Hanging (In-Line) | 0.236 in | 6 mm | 16 | Black | 0.197 in | 5 mm | Tab | Plug | |||||||||||||||||||||||||||
 TE Connectivity AMP Connectors | 19.5 AWG | 24 AWG | Gold | Socket | Crimp | Power | 0.8 µm | 31.5 µin | |||||||||||||||||||||||||||||||
 TE Connectivity AMP Connectors | Crimp | Latch Lock | Nylon Polyamide (PA) | 2 | Free Hanging (In-Line) | 8 | Gray | 0.236 in | 6 mm | Female Socket | Receptacle | 5 mm | 0.197 in | ||||||||||||||||||||||||||
TE Connectivity AMP Connectors | Push-Pull | Glass Filled Nylon 6/6 Polyamide (PA66) | 2 | 35 | Tab | Plug | Automotive General Purpose | Phosphor Bronze | Mounting Flange | 0.197 " | 5 mm | Board to Board Cable | All | Rectangular | Tin | Black | Solder | 0.197 in | 5 mm | Shrouded - 4 Wall |
