TRG1509 Series

Manufacturer: Cincon Electronics Co. LTD

Catalog

AC/DC WALL MOUNT ADAPTER 9V 13W

Part	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input [Max]	Voltage - Input [Min]	Polarization	Voltage - Output	Input Type	Efficiency	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Cord Length	Cord Length	Approval Agency	Form	Region Utilized	No Load Power Consumption	Input Connector	Applications	Standard Number	Weight	Weight	Output Connector [custom]	Output Connector [custom]	Output Connector	Output Connector [x]

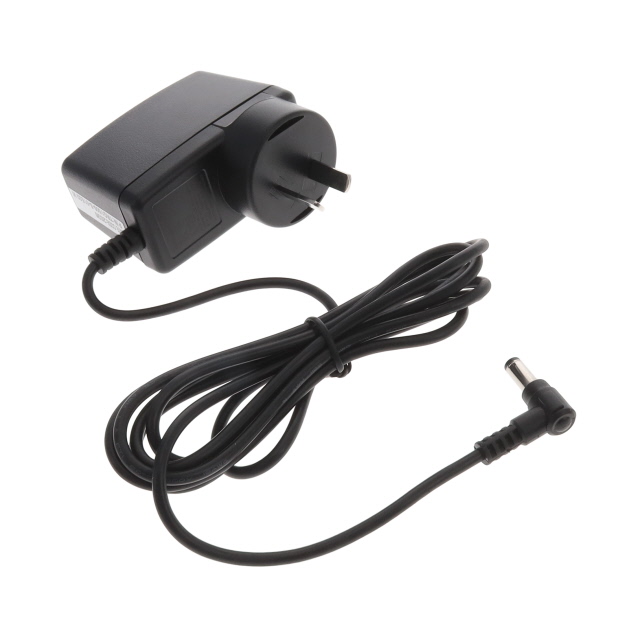

Cincon Electronics Co. LTD TRG1509-S-01E03 VI	13 W	-20 ░C	60 °C	264 VAC	90 VAC	Positive Center	9 V	Fixed Blade	CoC Tier 2 Level VI	1.4 A	52 mm	35 mm	2.84 "	1.38 in	72 mm	2.05 in	70.9 "	1.8 m	CE cULus FCC GS PSE TUV	Wall Mount	Australia	75 mW	AS 3112	ITE (Commercial)	60950-1

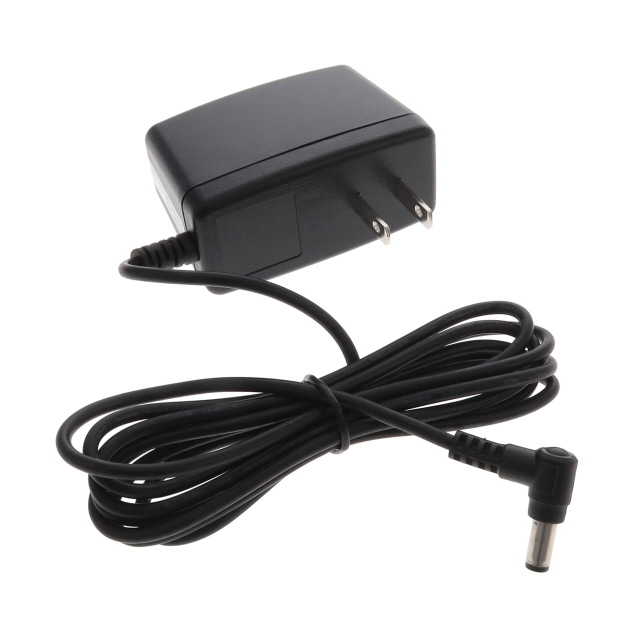

Cincon Electronics Co. LTD TRG1509-A-01E03 VI	13 W	-20 ░C	60 °C	264 VAC	90 VAC	Positive Center	9 V	Fixed Blade	CoC Tier 2 Level VI	1.4 A	52 mm	35 mm	2.84 "	1.38 in	72 mm	2.05 in	70.9 "	1.8 m	CE cULus FCC GS PSE TUV	Wall Mount	North America	75 mW	NEMA 1-15P	ITE (Commercial)	60950-1

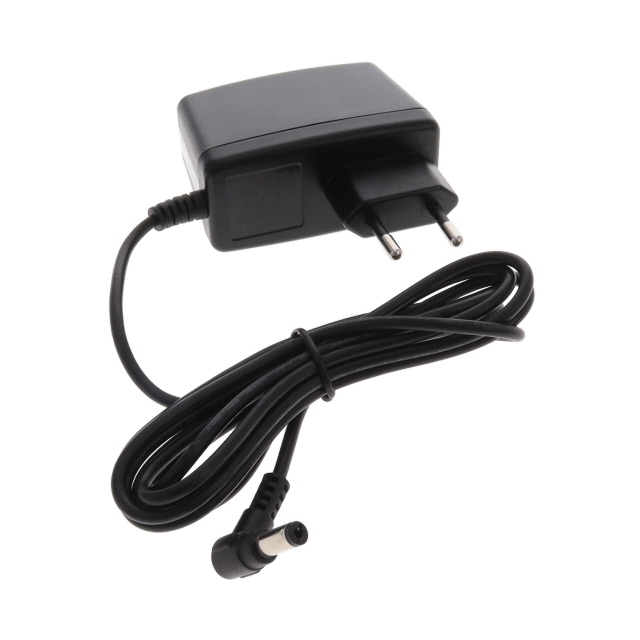

Cincon Electronics Co. LTD TRG1509-E-01E03 VI	13 W	-20 ░C	60 °C	264 VAC	90 VAC	Positive Center	9 V	Fixed Blade	CoC Tier 2 Level VI	1.4 A	52 mm	35 mm	2.84 "	1.38 in	72 mm	2.05 in	70.9 "	1.8 m	CE cULus FCC GS PSE TUV	Wall Mount	Europe	75 mW	KSC 8305	ITE (Commercial)	60950-1

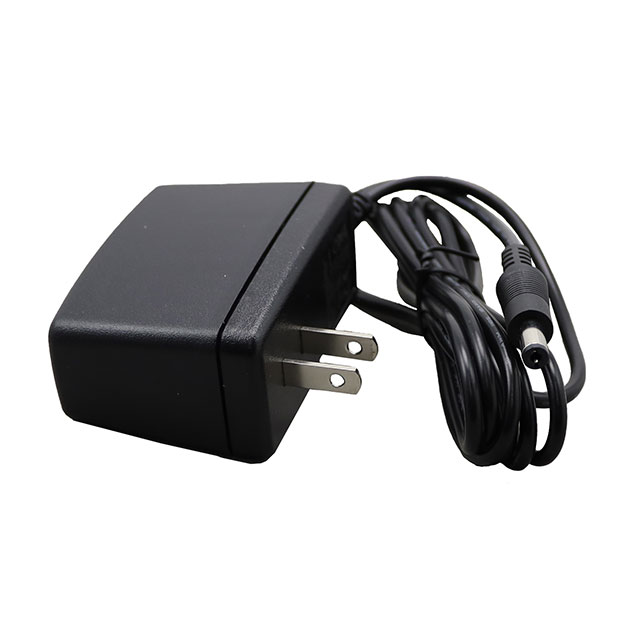

Cincon Electronics Co. LTD TRG1509-A-11E03 VI	13 W	-20 ░C	60 °C	264 VAC	90 VAC	Positive Center	9 V	Fixed Blade	CoC Tier 2 Level VI	1.4 A	52 mm	35 mm	2.84 "	1.38 in	72 mm	2.05 in	70.9 "	1.8 m	CE cULus FCC GS PSE TUV	Wall Mount	North America	75 mW	NEMA 1-15P	ITE (Commercial)		0.309 lb	140 g	2.1 mm	5.5 mm	Barrel Plug	12 mm
